Tests AC: Dual Generator Lower Fault Detected (P1106)

PINPOINT TEST AC: DUAL GENERATOR LOWER FAULT DETECTED (P1106)

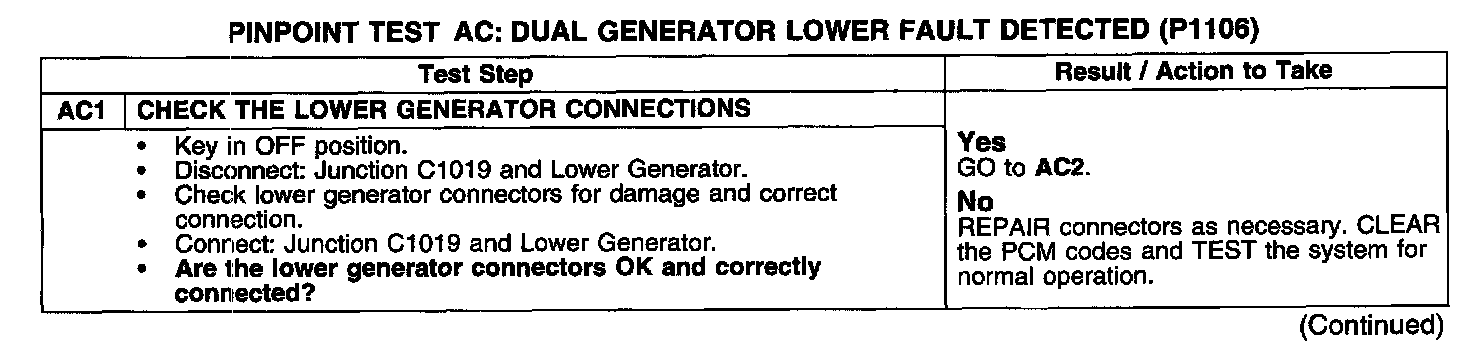

Test AC1:






Test AC2-AC4:

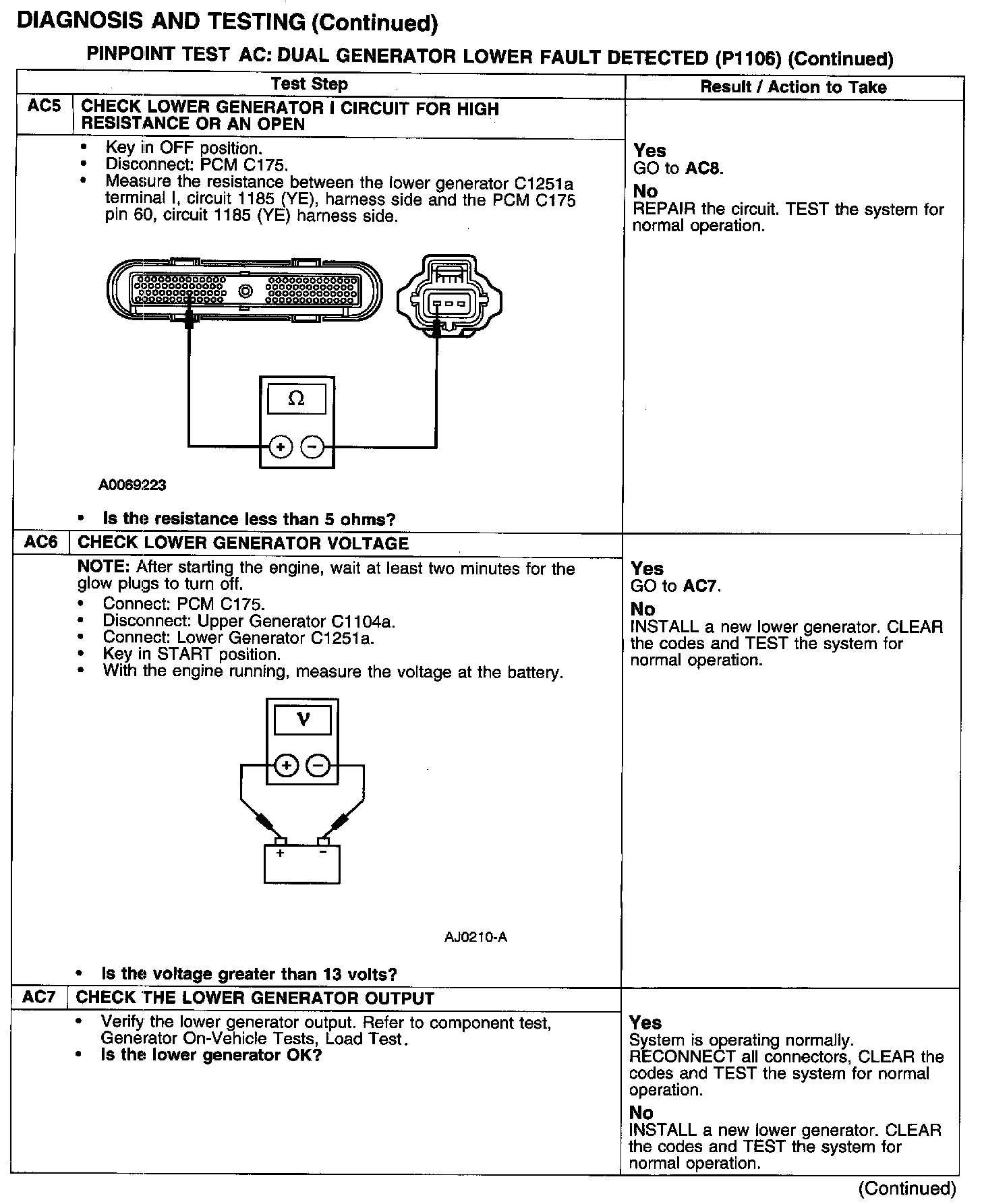

Test AC5-AC7:

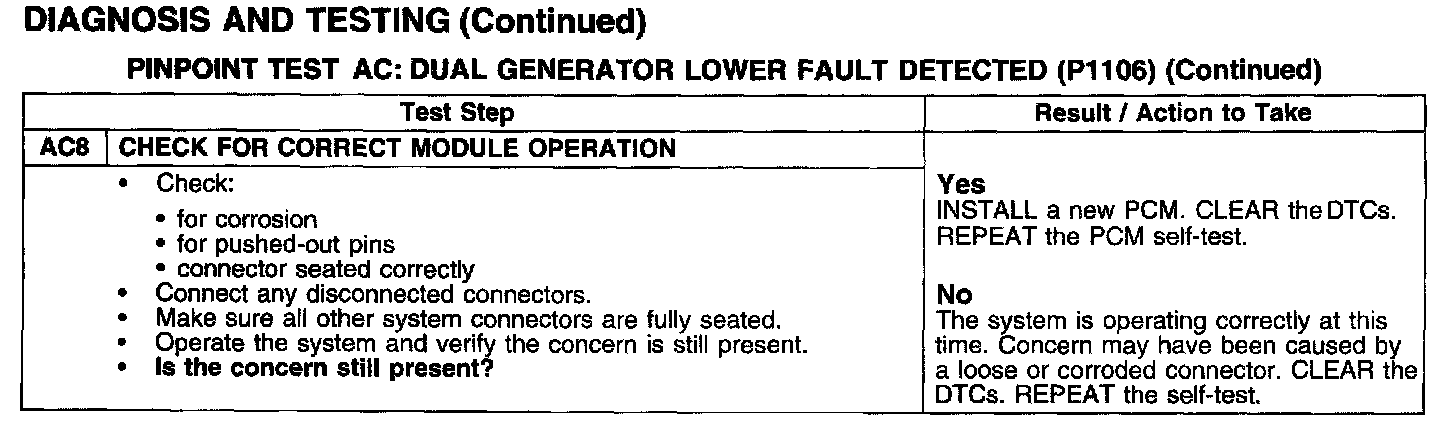

Test AC8:
