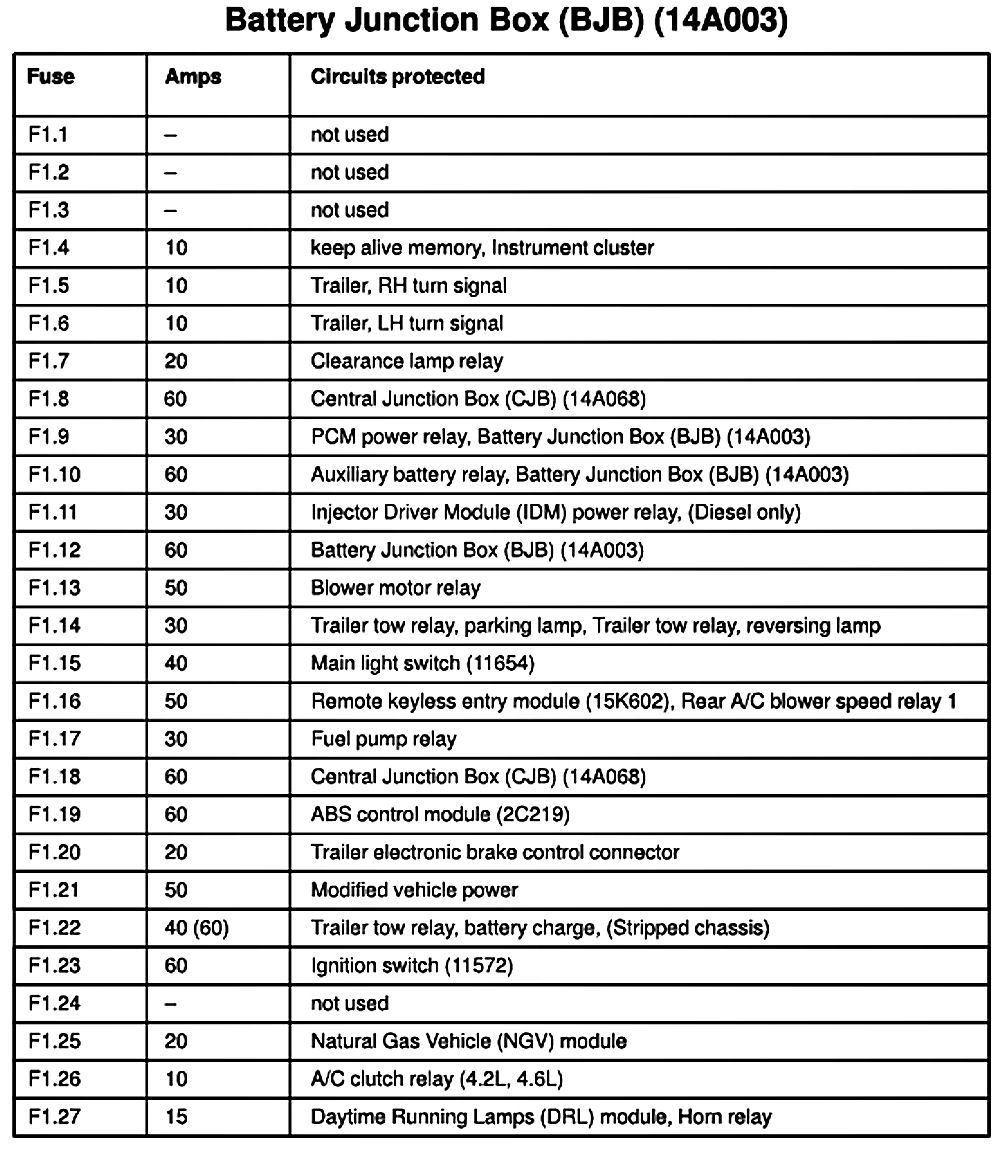

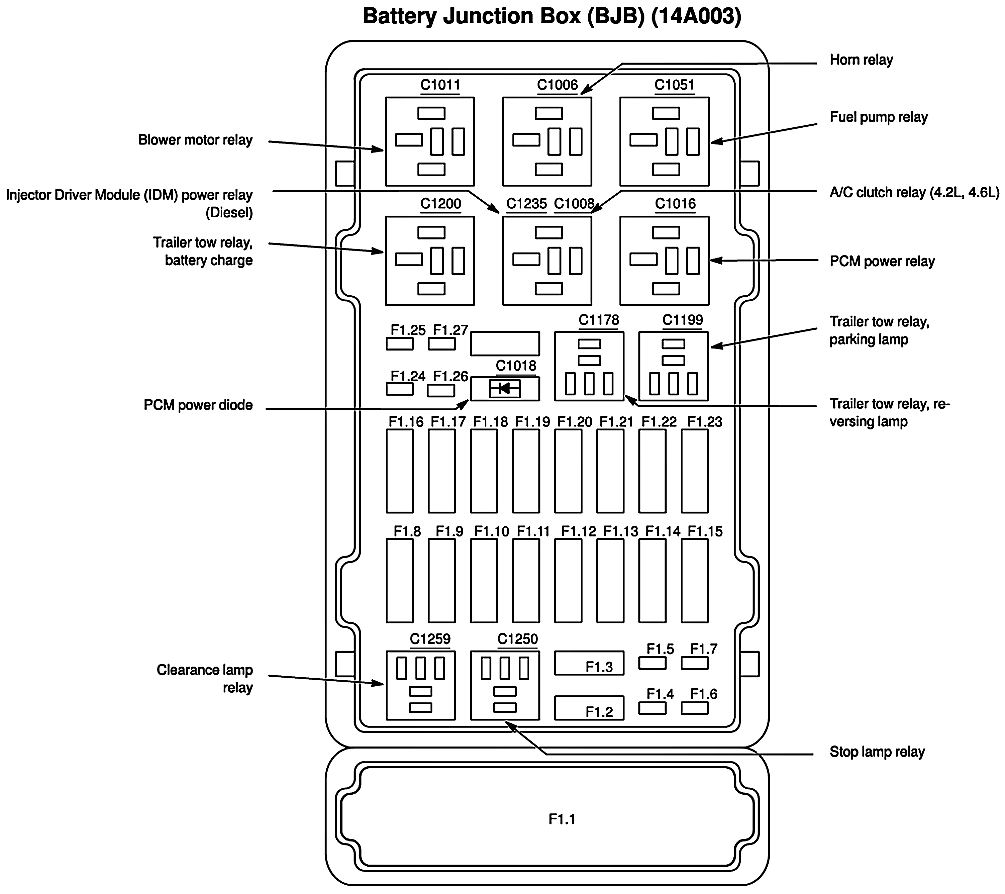

Battery Junction Box













Note: The battery junction box is located in the engine compartment.
