Shift Speed Chart

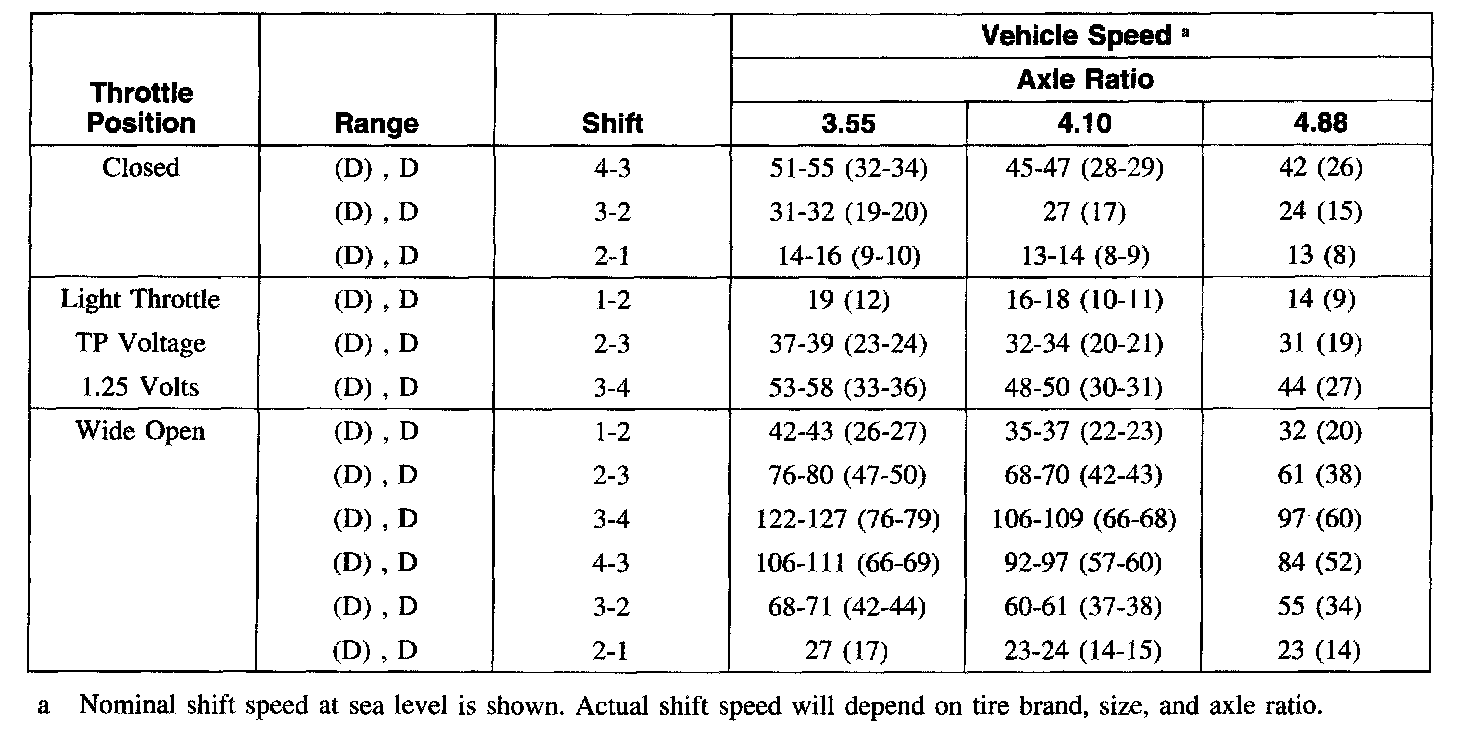

Shift Speeds - Km/h (MPH) (E-Super Duty, E-350, E-450 with 5.4L) (Over 8500 GVW Rating)

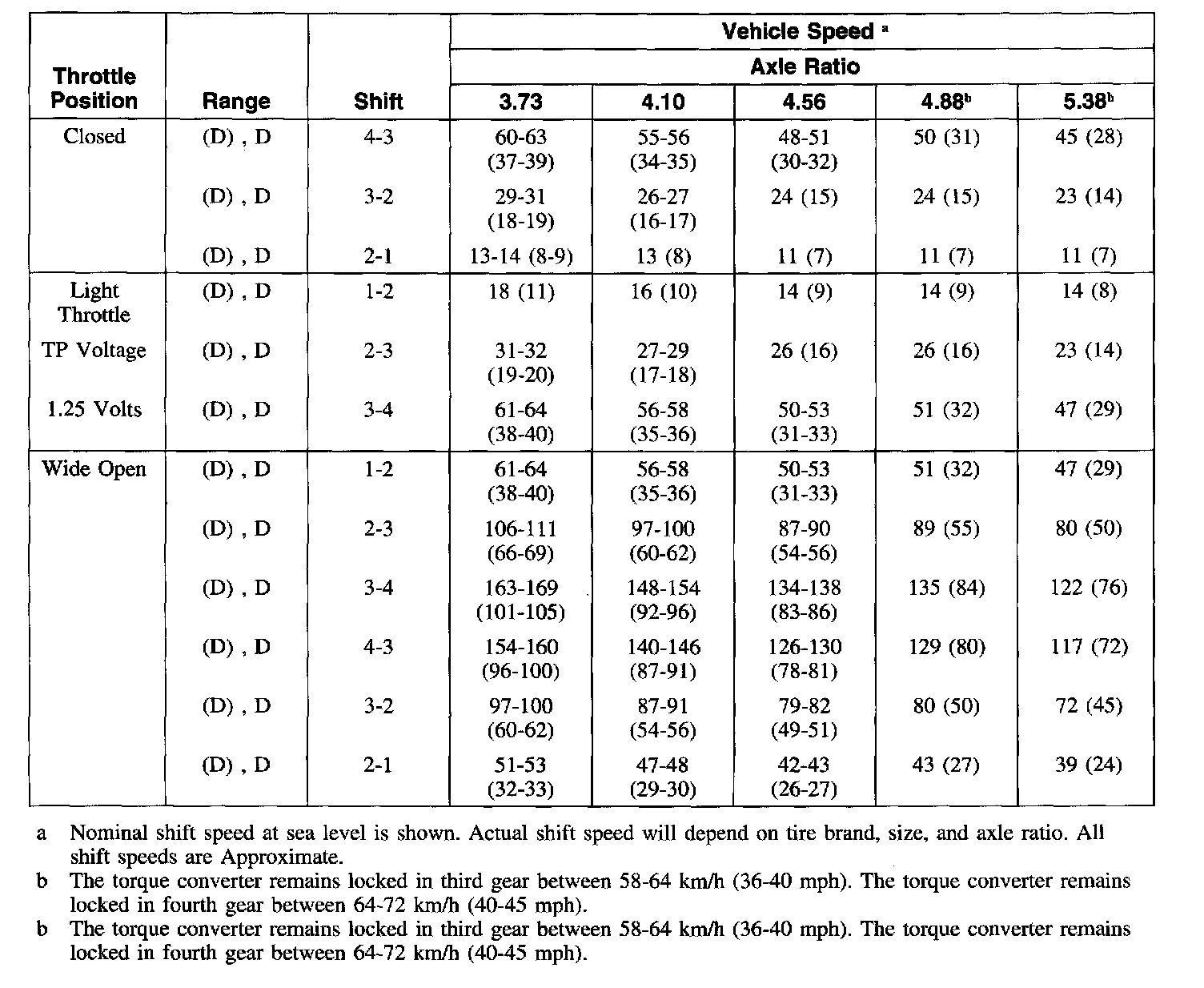

Shift Speeds - Km/h (MPH) (E-Series Super Duty, E-350, E-450, E-550 with 6.8L)
[This vehicle speed is limited to 121 km/h (75 mph)]

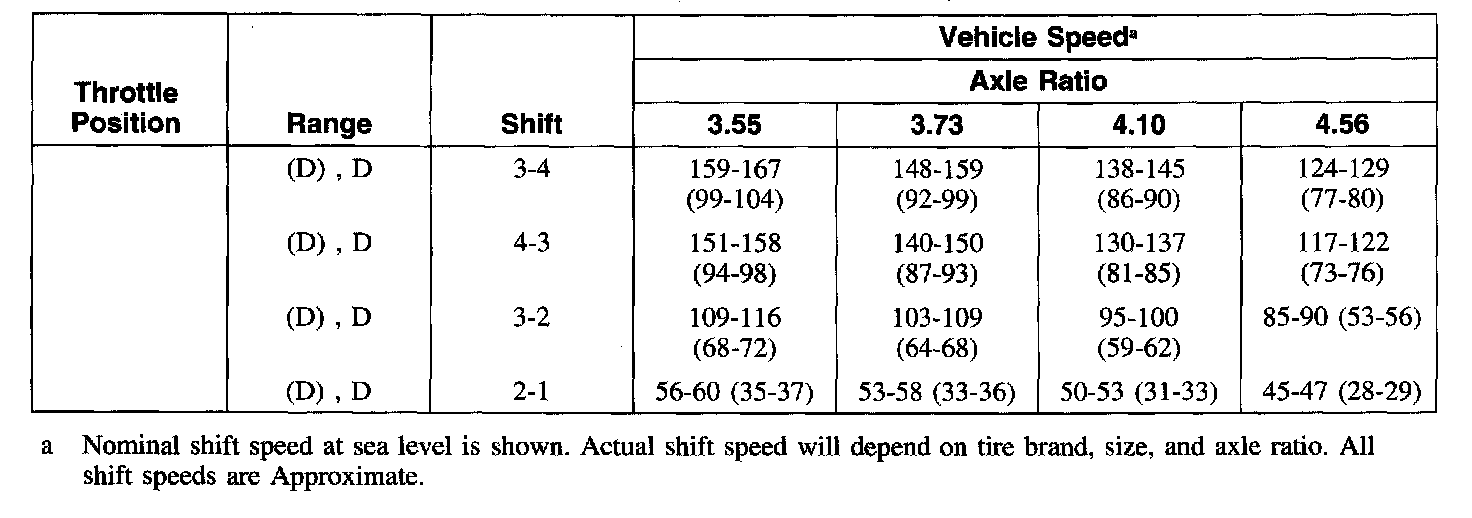

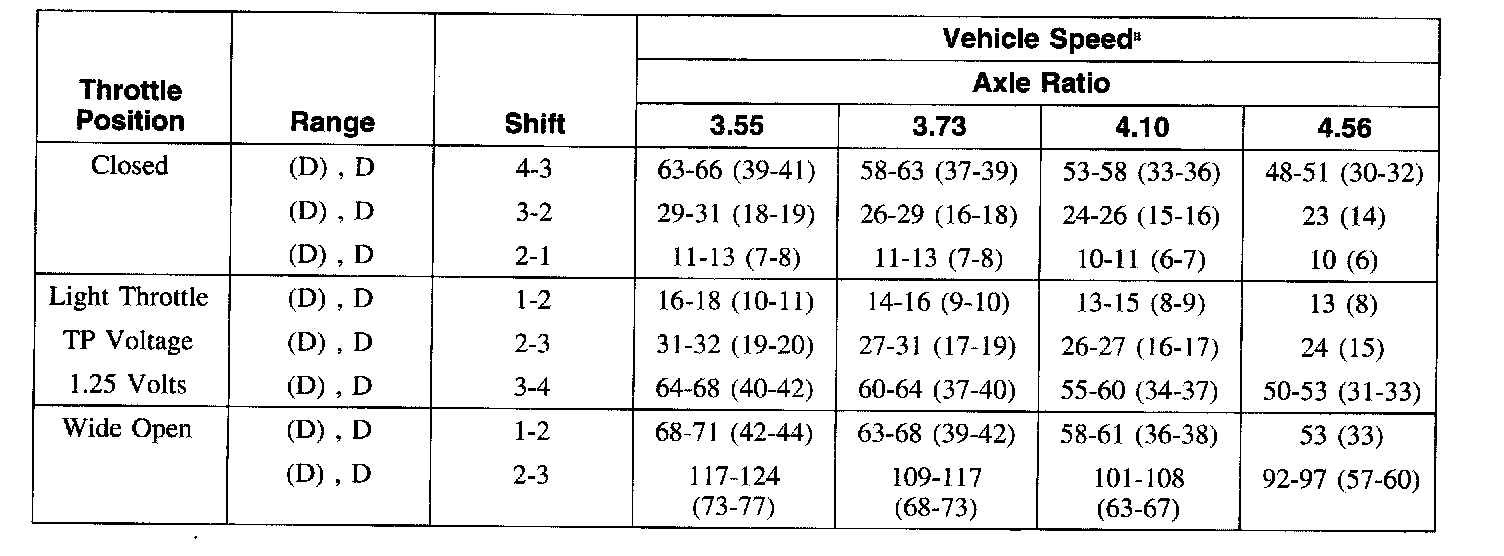

Shift Speeds - Km/h (MPH) (E-Super Duty, E-350, E-450, E-550 with 7.3L DITD)
(This vehicle speed is limited to 121 km/h (75 mph) in the standard package and 130 km/h (81 mph) in the ambulance package. The torque converter remains locked in third and fourth gears at 68 km/h (42 mph) during closed throttle.)
