Test A: Shift Interlock System Does Not Release/Lock Correctly

PINPOINT TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY

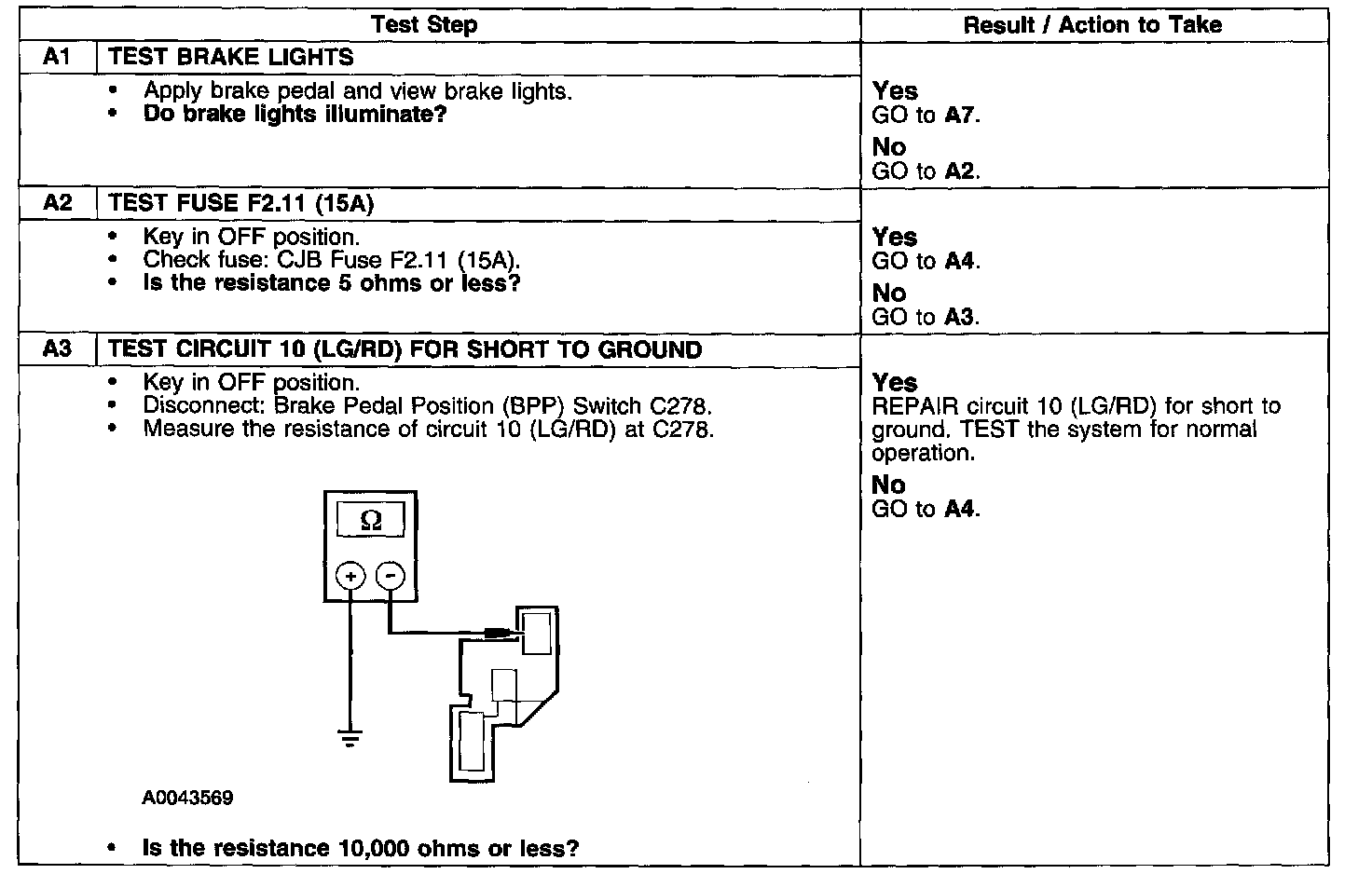

Test A1-A3:

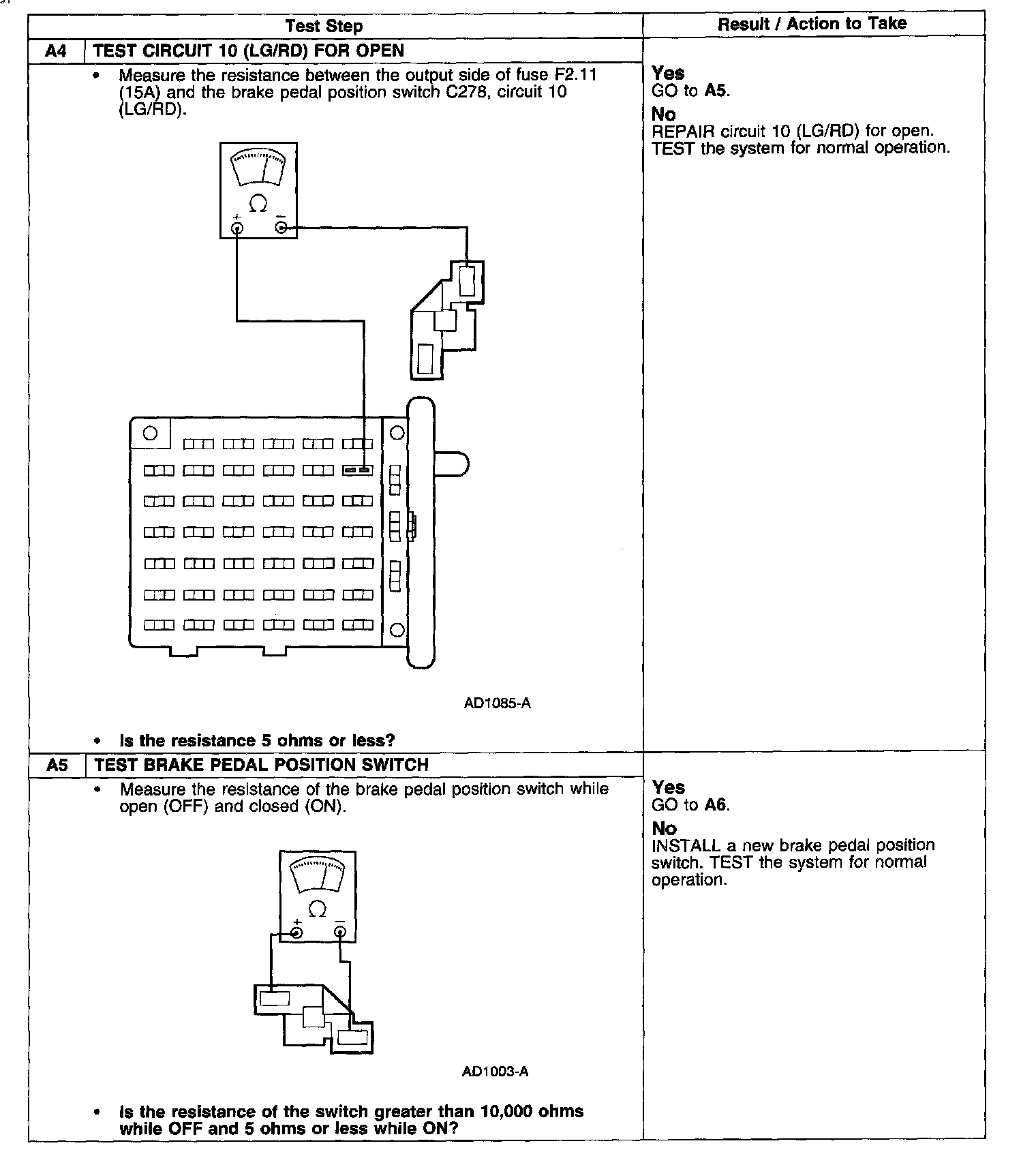

Test A4-A5:

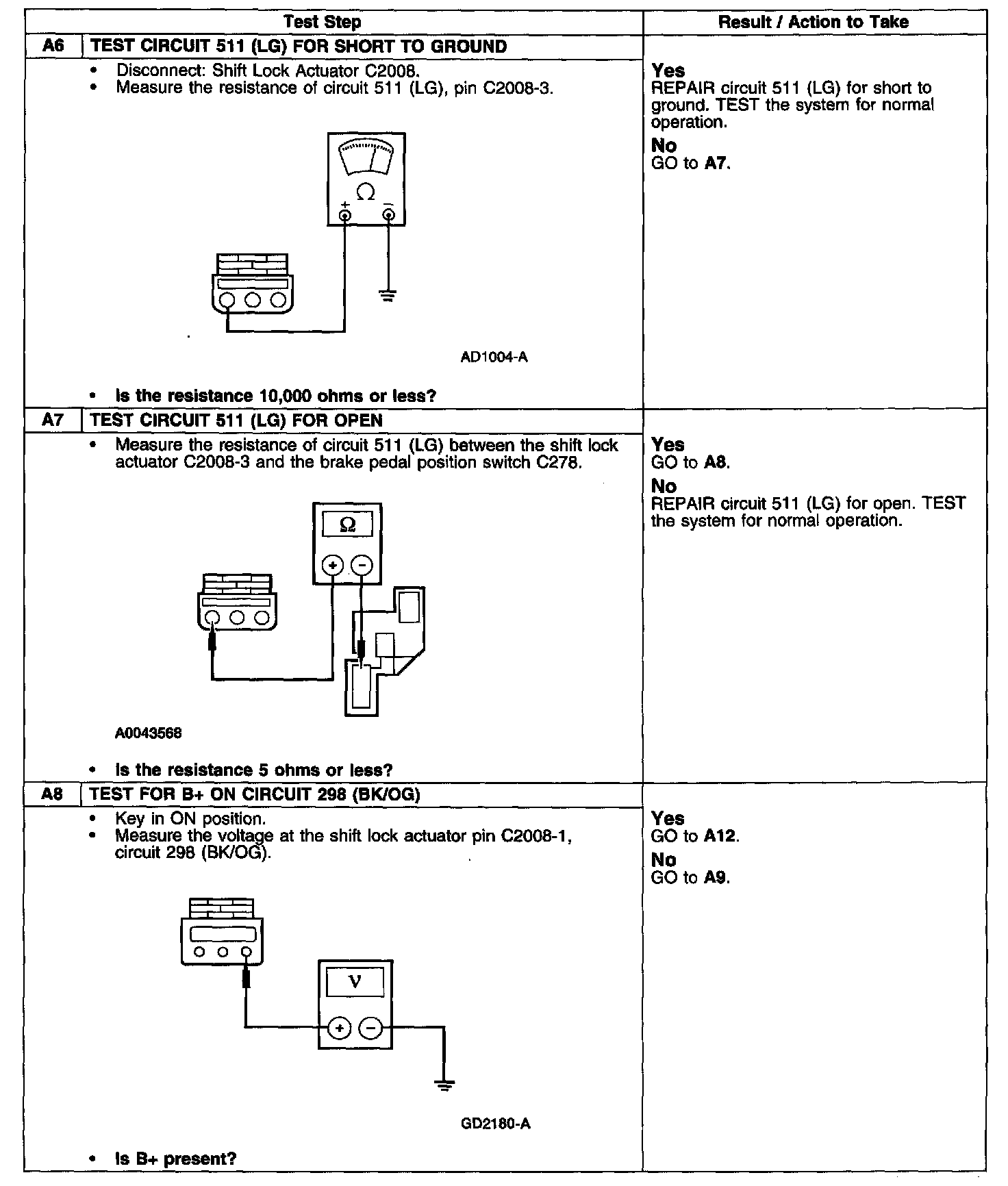

Test A6-A8:

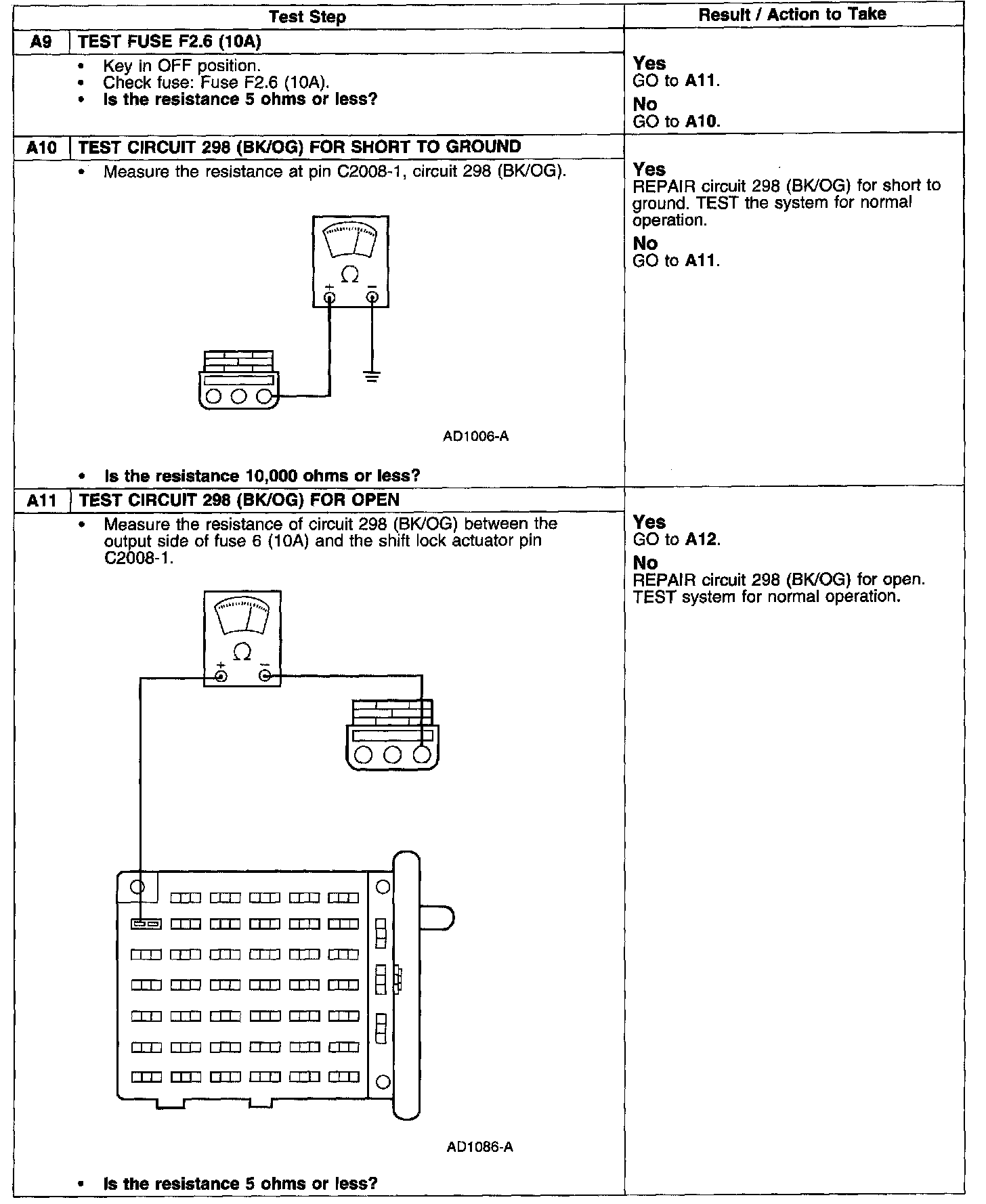

Test A9-A11:

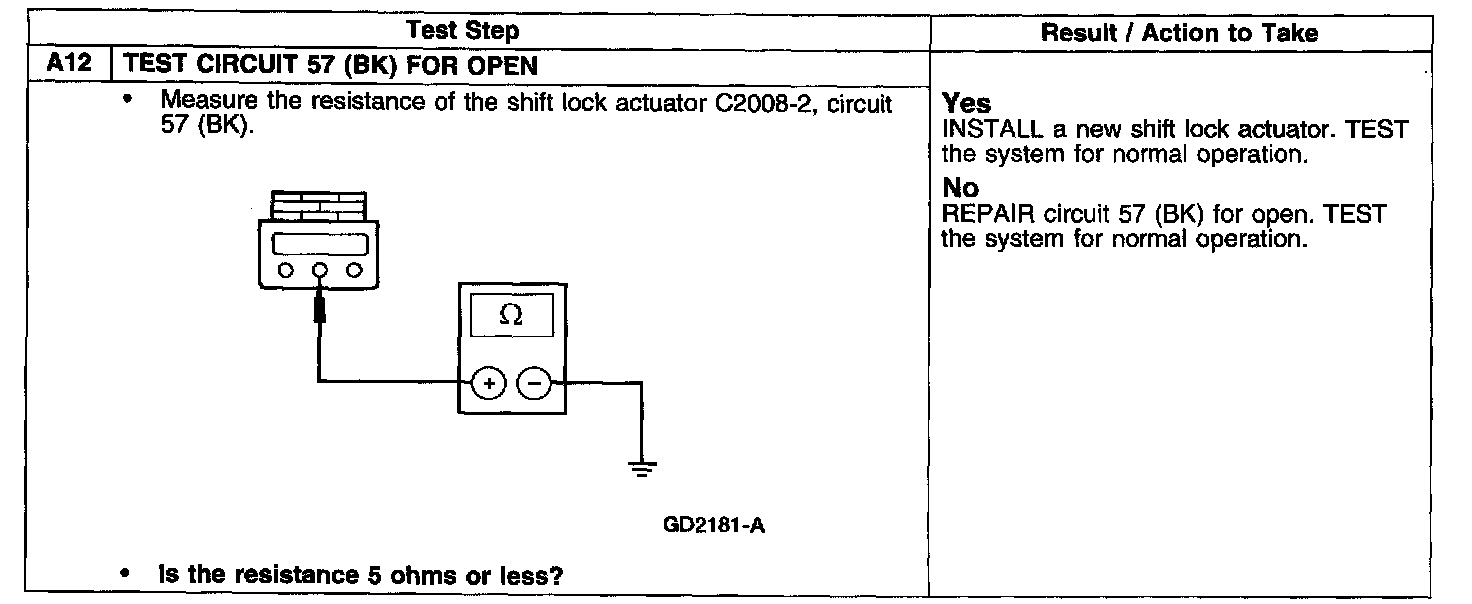

Test A12:
