Catalytic Converter: Service and Repair

Catalytic Converter-3.0L (4V)

Removal and Installation
1. Raise and support the vehicle.

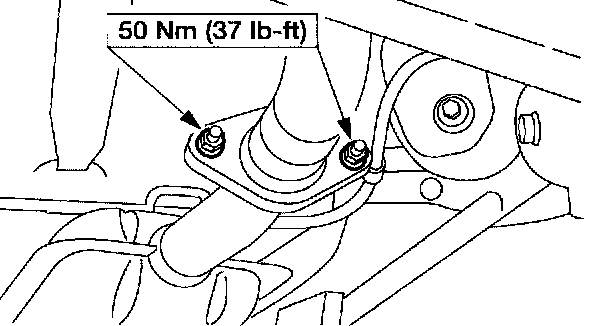

2. Remove and discard the nuts.
^ Discard the gasket.

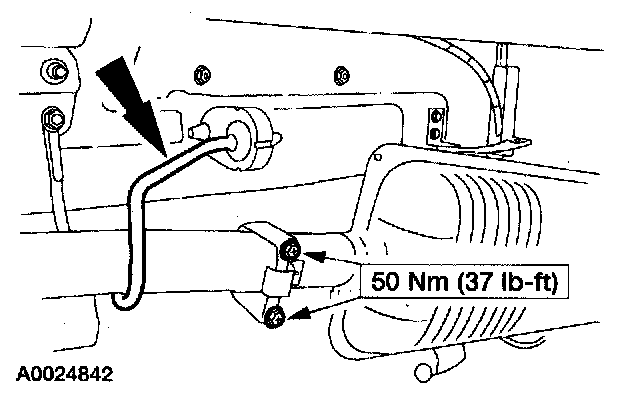

3. Remove the U-bolt, disconnect the catalytic converter from the hanger.

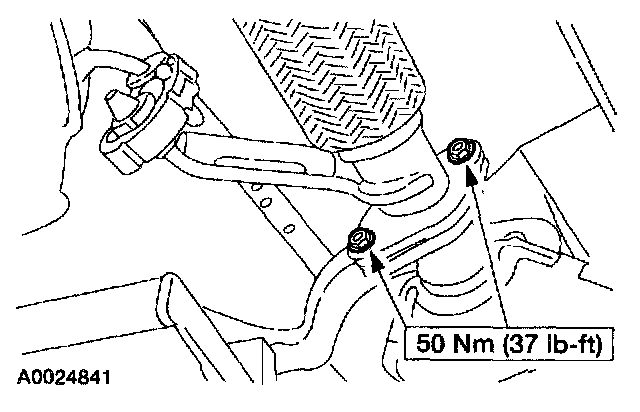

4. Remove and discard the nuts between main silencer and after silencer pipe.
5. Remove converter and main silencer together.
6. Remove converter from main silencer on the floor.
7. To install, reverse the removal procedure.
^ Install a new gasket.
^ Install new nuts.
