Home >> Ford >> 2003 >> Escape 4WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 13 >> 13-9 to 13-12

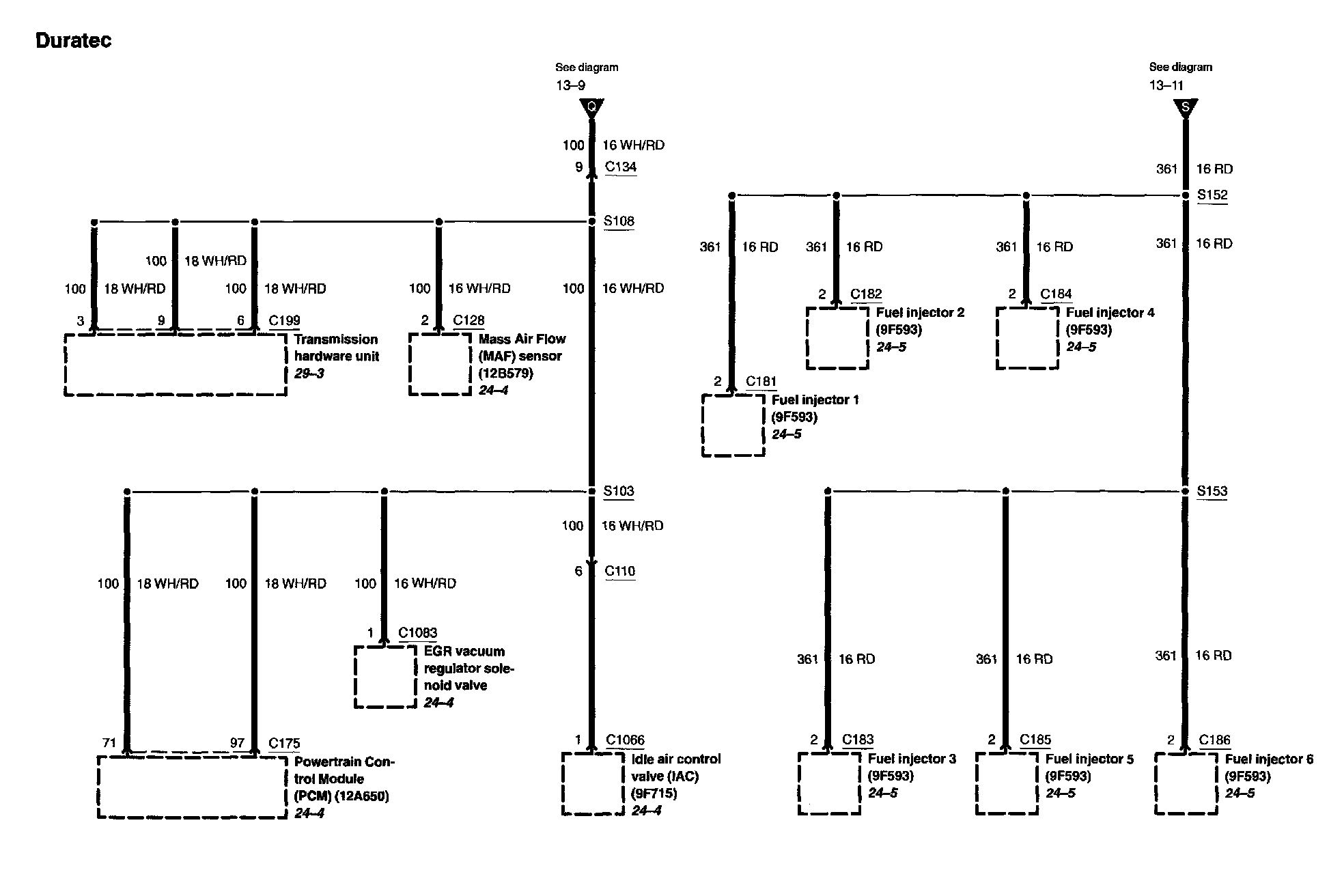

13-9 to 13-12

13-9:

13-10:

13-11:

13-12:
