Home
>>
Ford
>>
2003
>>
Escape 4WD V6-181 3.0L DOHC VIN 1 Duratec
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Body and Frame
>>

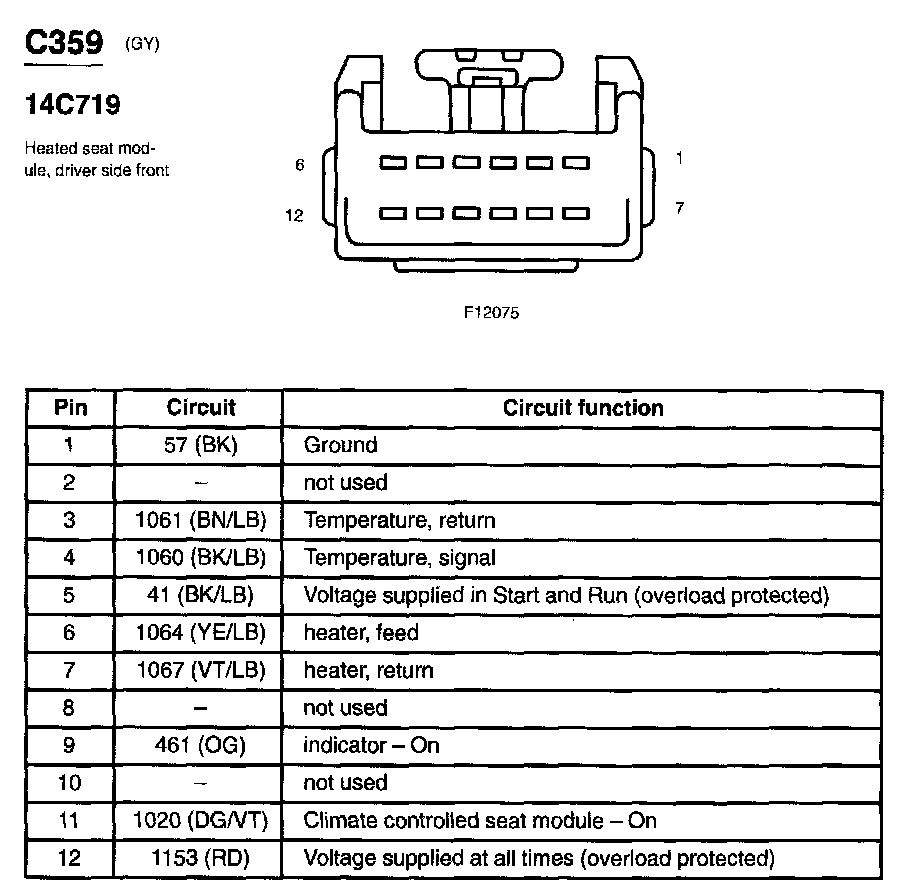

Seat Temperature Control Module
>>
Diagrams
>>
Driver Side Front
Driver Side Front
