SRS - Air Bag Lamp ON/DTC's B1994 or B1998 Set
TSB 04-26-1212/31/04
SIDE AIR BAG DIAGNOSTIC TROUBLE CODE (DTC) B1994 OR B1998
FORD:
2001-2004 Escape
ISSUE
Some 2001-2004 Escape vehicles may exhibit the air bag warning lamp illuminating intermiffently with DTC B1994 (driver side, side mount air bag circuit open) or B1998 (passenger side, side mount air bag circuit open). This condition may be caused by a variation in the electrical continuity at connector C337 (passenger side) or C367 (driver side) at the body harness wire terminal crimp.
ACTION
Install a replacement body harness pigtail connector in the affected circuit. Refer to the instruction sheet included in the connector repair kit.

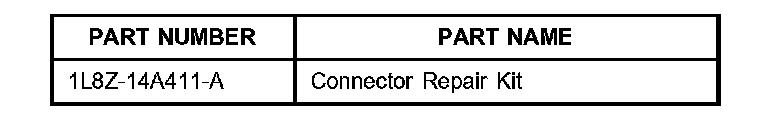

Parts Block
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage
OPERATION DESCRIPTION TIME
042612A 2001-2004 Escape One 1.2 Hrs.
Seat: Check For
Diagnostic Trouble Codes,
Install A Replacement
Body Harness Pigtail
(Includes Time To
Depower And Repower
The Supplemental
Restraints System,
Remove And Install Seat)
042612B 2001-2004 Escape Both 1.8 Hrs.
Seats: Check For
Diagnostic Trouble Codes,
Install A Replacement
Body Harness Pigtail
(Includes Time To
Depower And Repower
The Supplemental
Restraints System,
Remove And Install Seats)
DEALER CODING
CONDITION
BASIC PART NO. CODE
14405 X2
