Test B

PINPOINT TEST B: SINGLE POWER WINDOW IS INOPERATIVE - COUPE

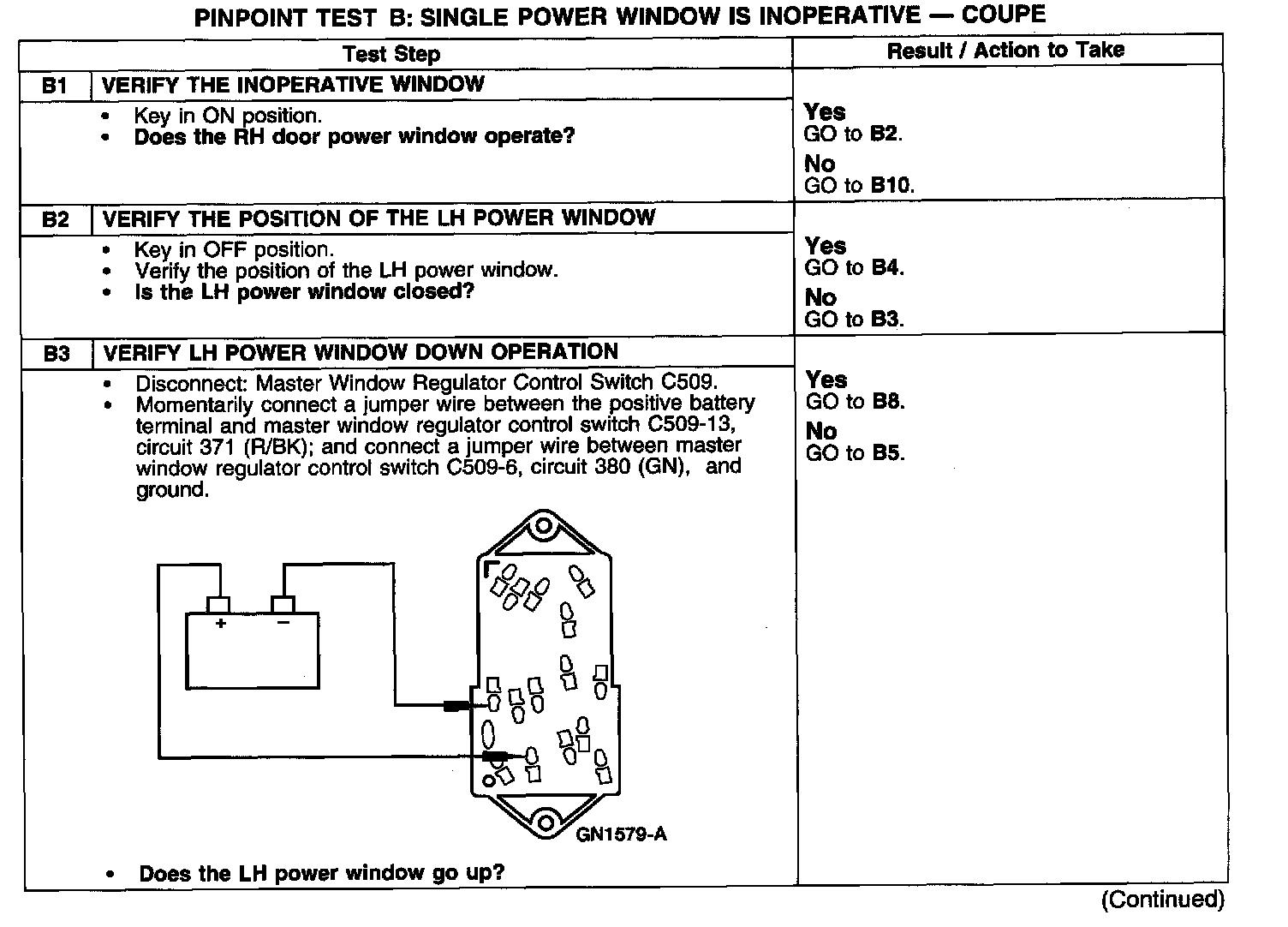

Test B1-B3:






Test B4-B6:

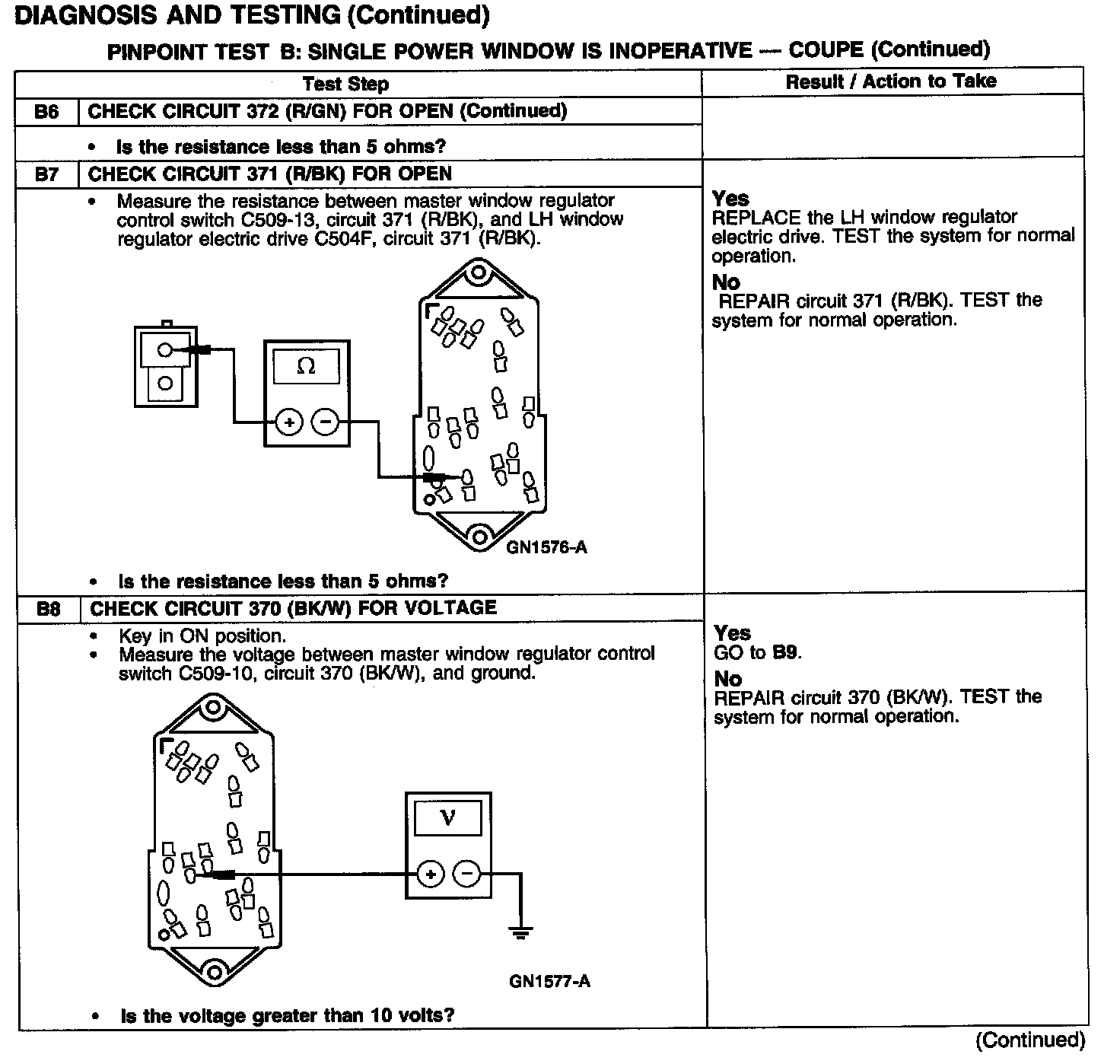

Test B6-B8:

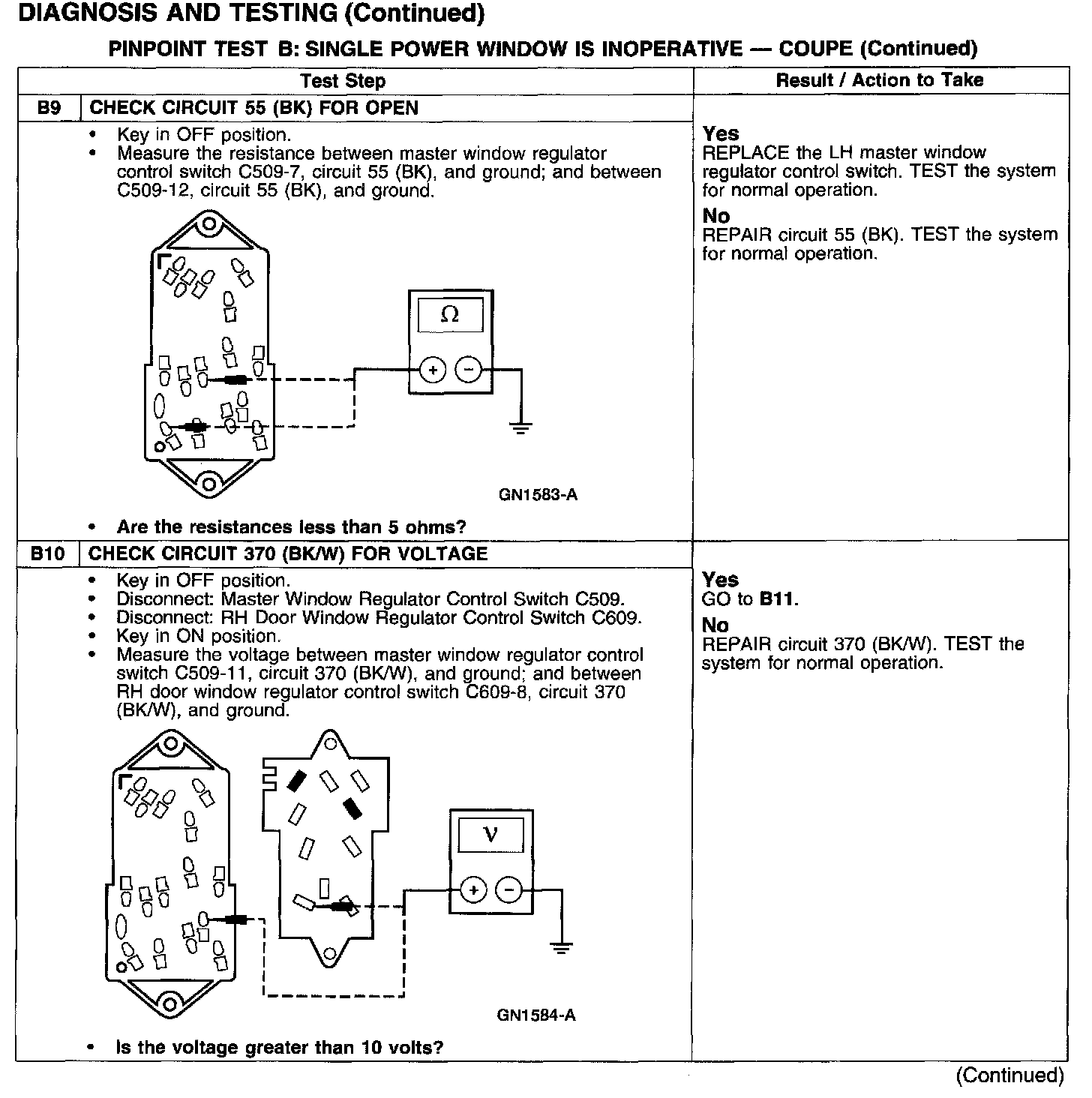

Test B9-B10:

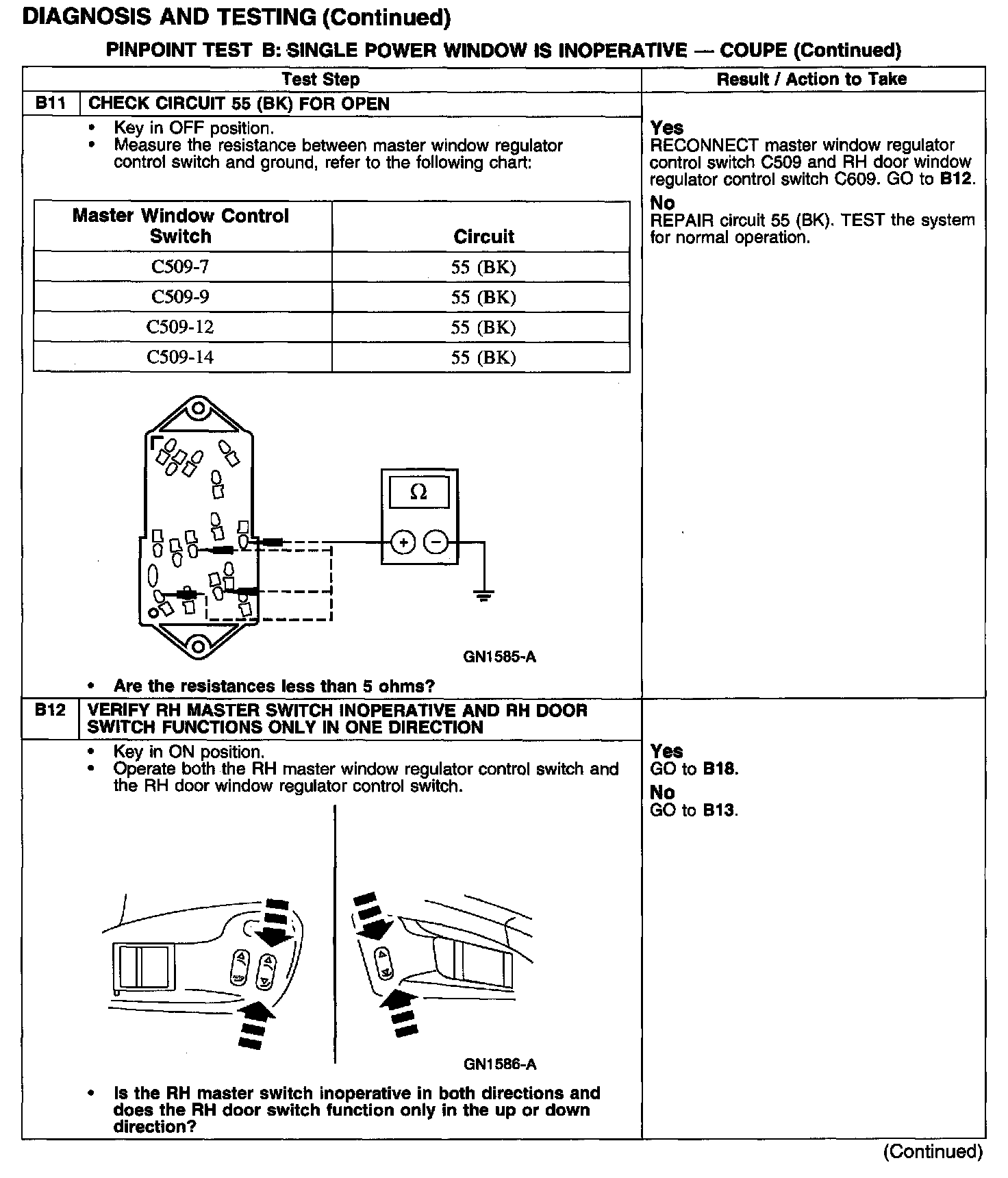

Test B11-B12:

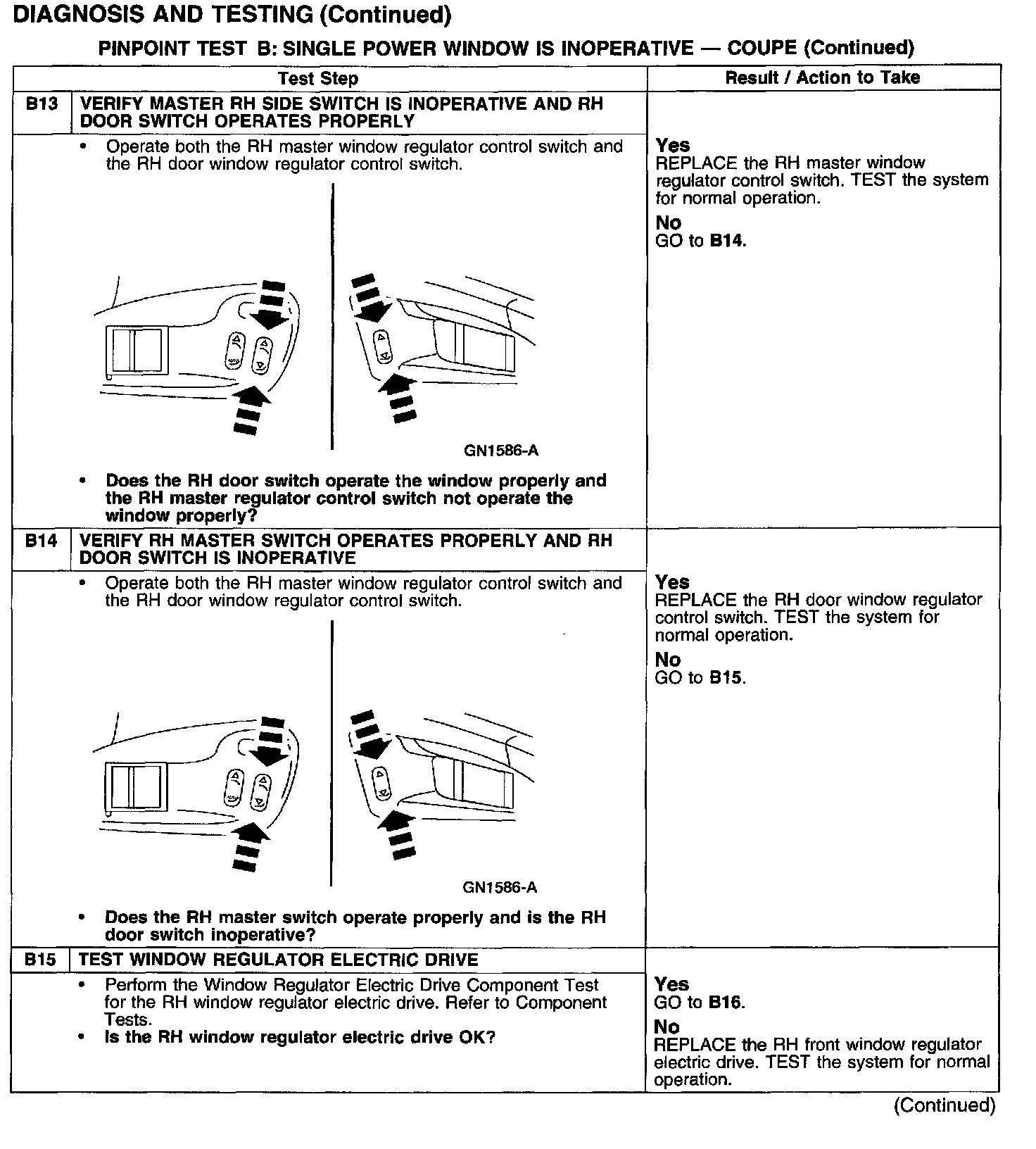

Test B13-B15:

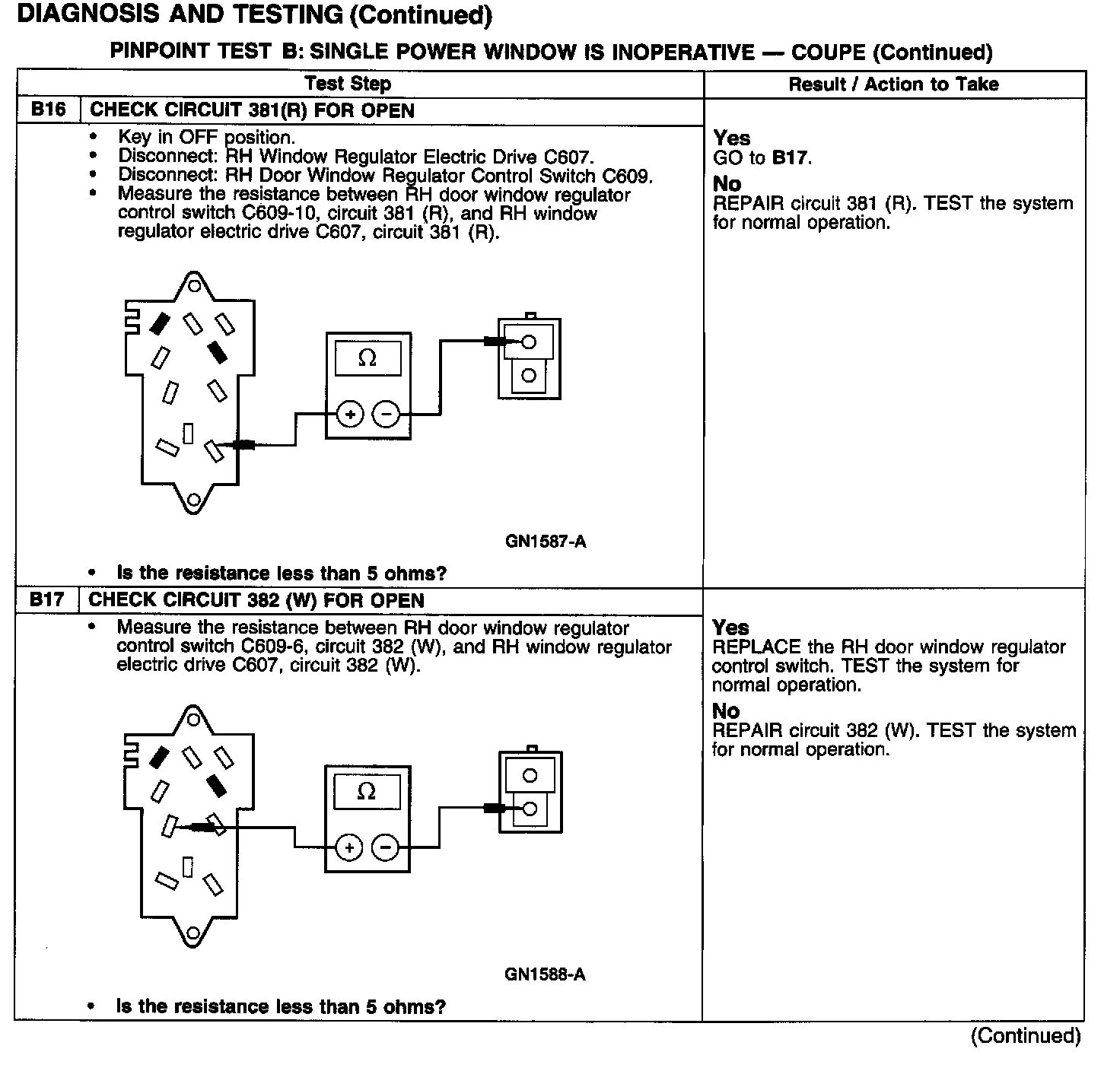

Test B16-B17:

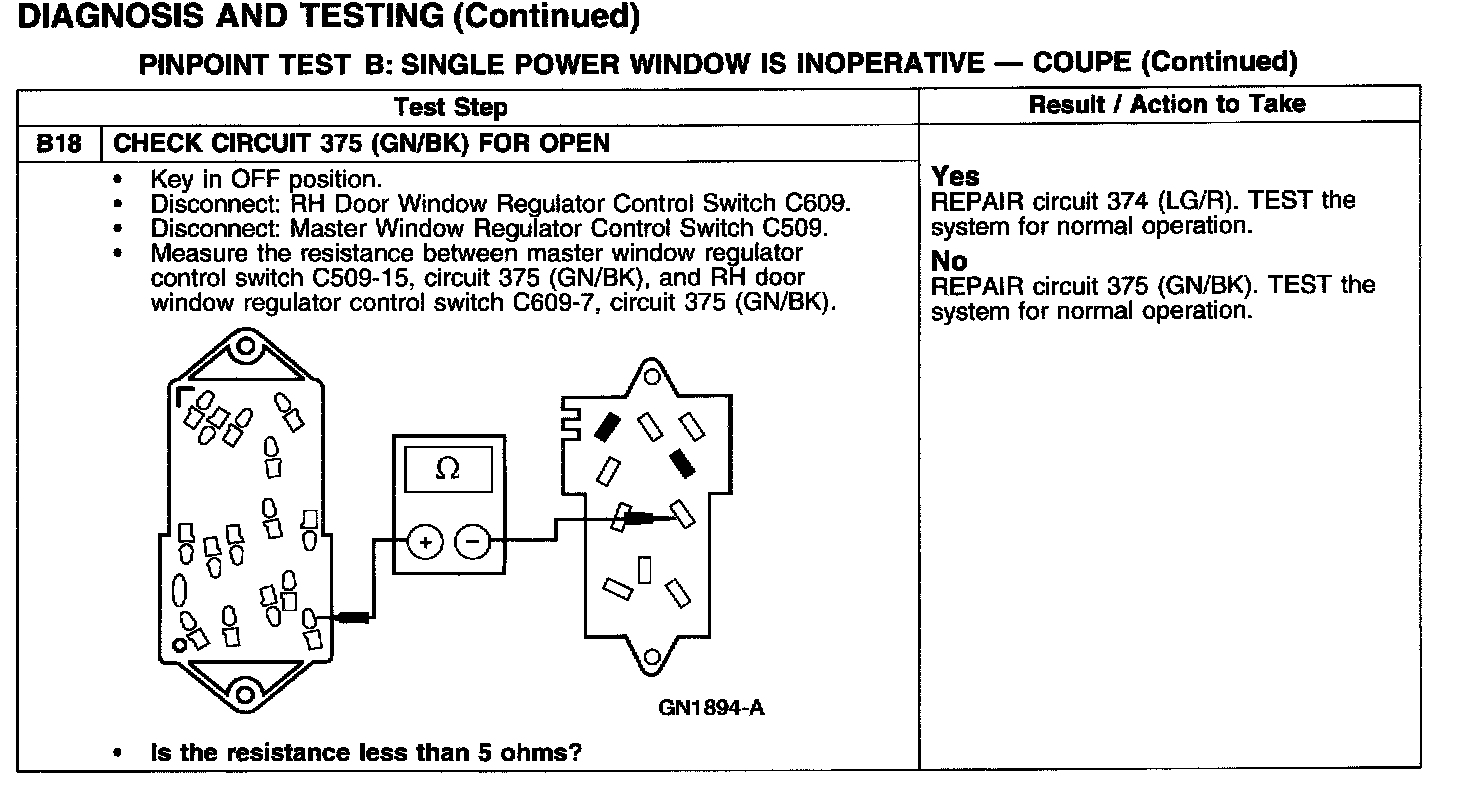

Test B18:
