Test G

PINPOINT TEST G: SINGLE POWER WINDOW INOPERATIVE

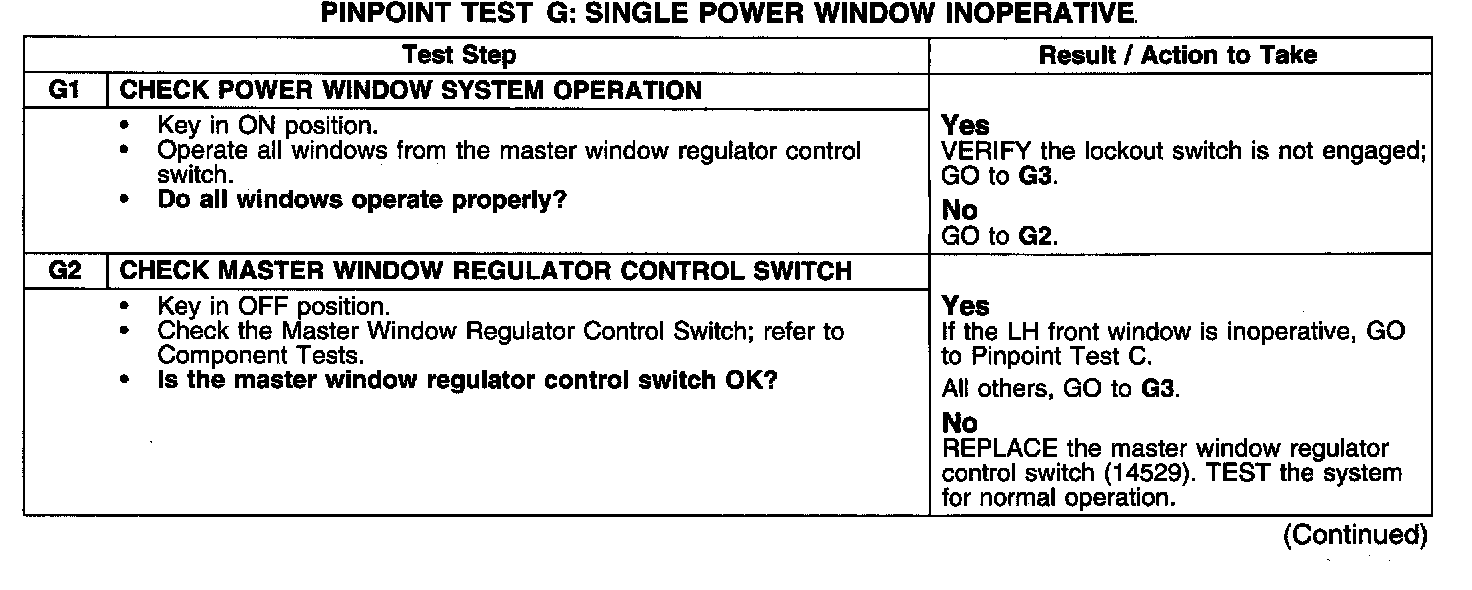

Test G1-G2:

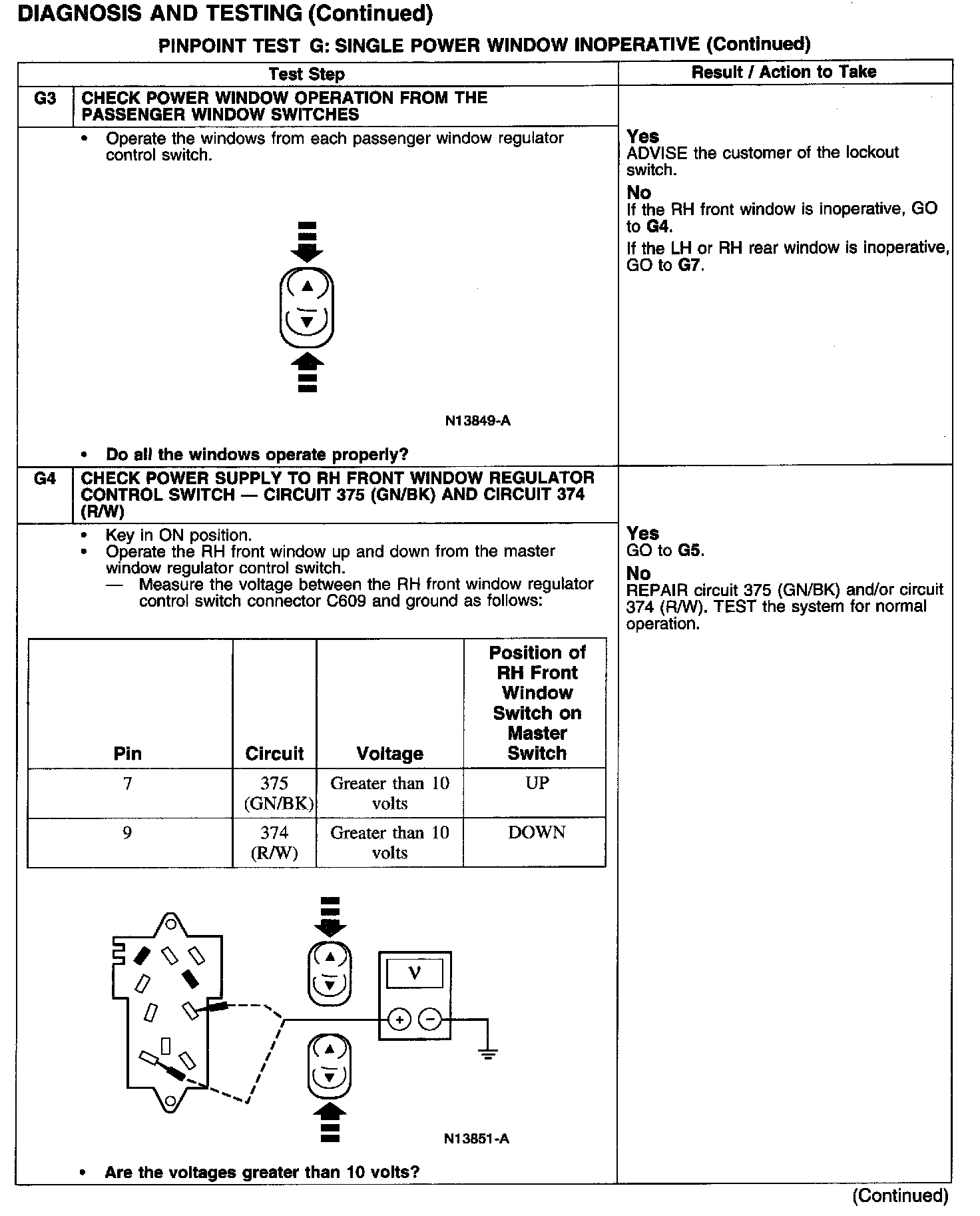

Test G3-G4:

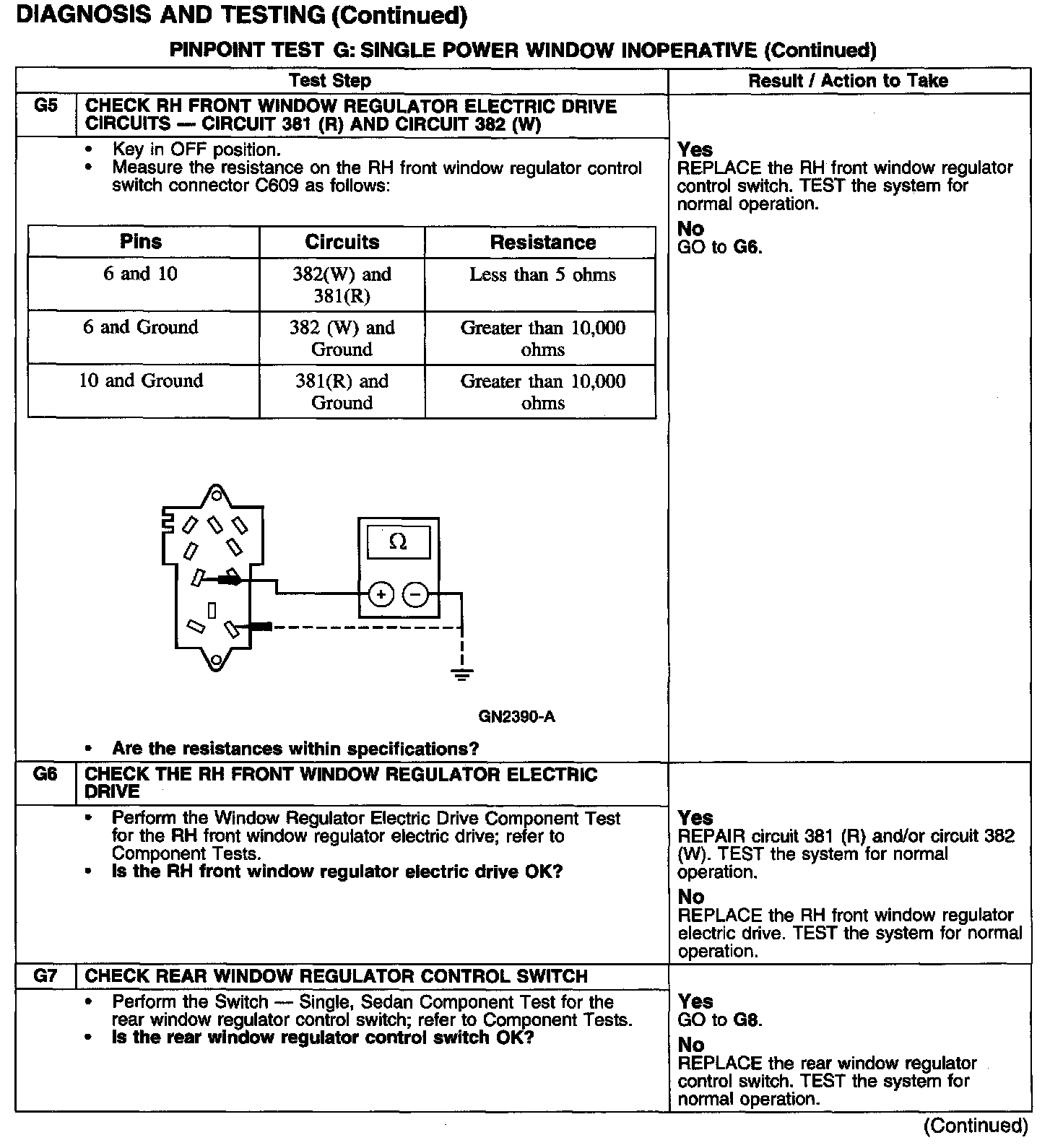

Test G5-G7:

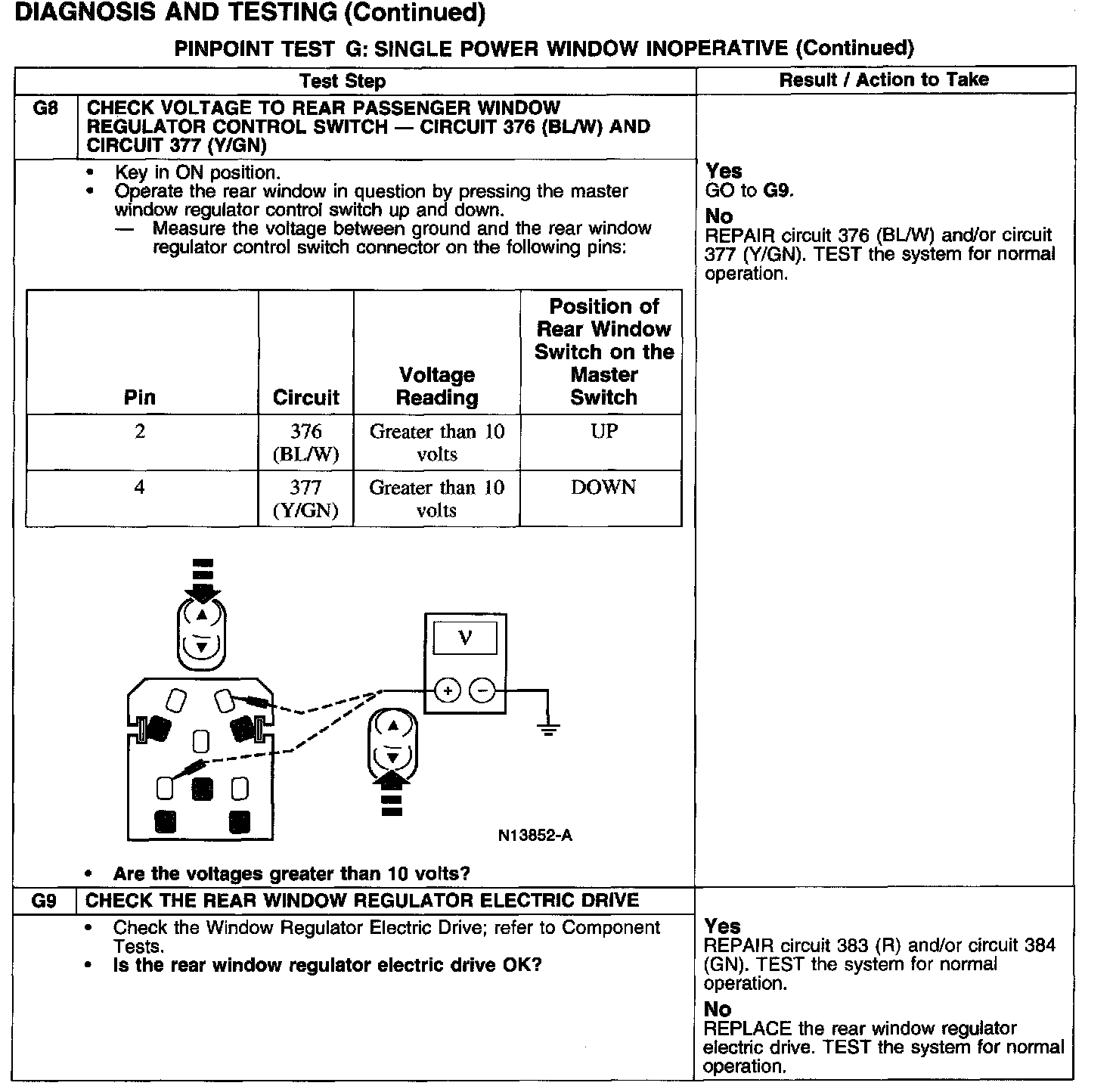

Test G8-G9:
