Test D: Speed Control Does Not Disengage With Clutch Applied
Test D: Speed Control Does Not Disengage With Clutch Applied
PINPOINT TEST D: THE SPEED CONTROL DOES NOT DISENGAGE WHEN THE CLUTCH IS APPLIED

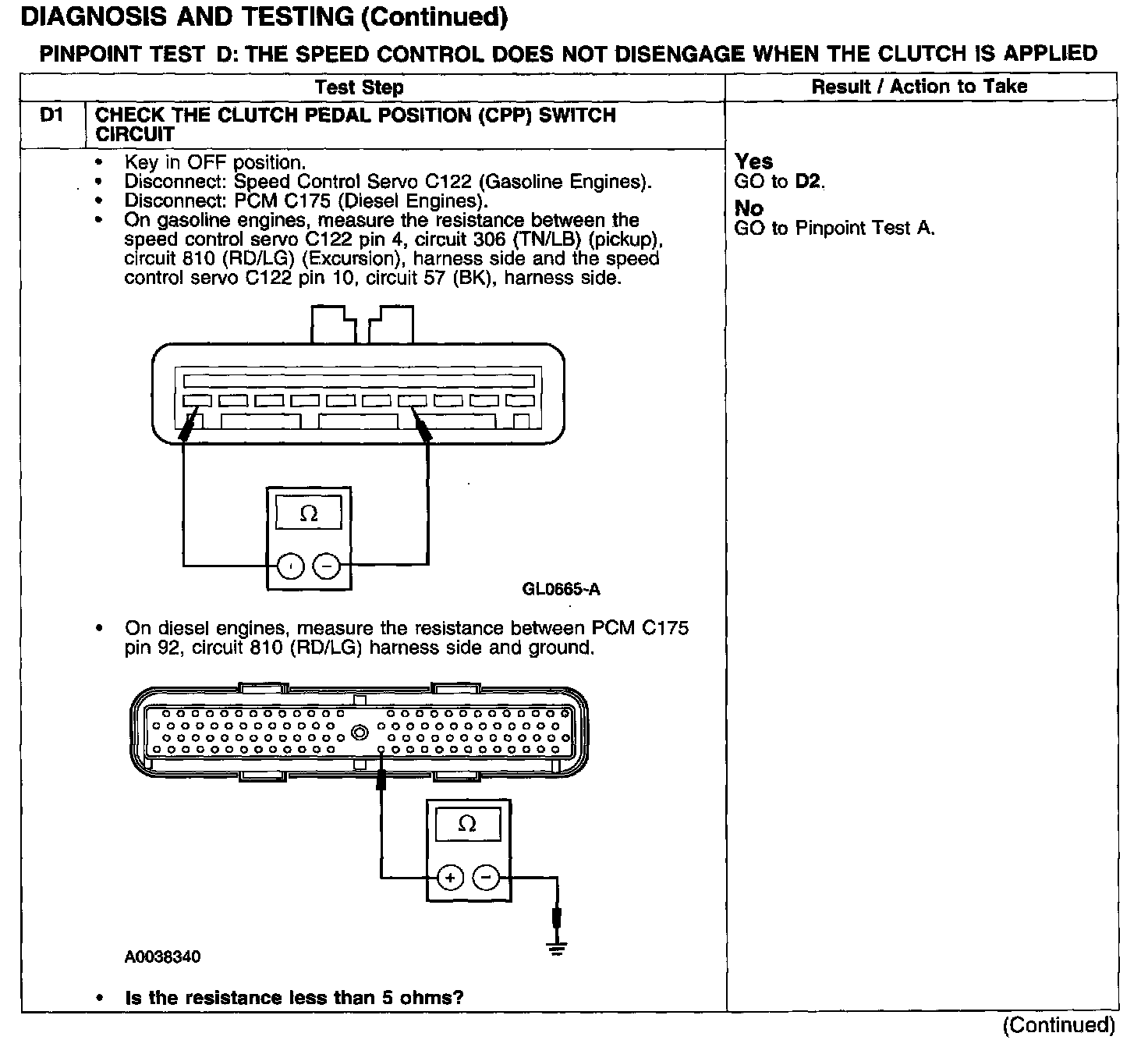

Test D1:

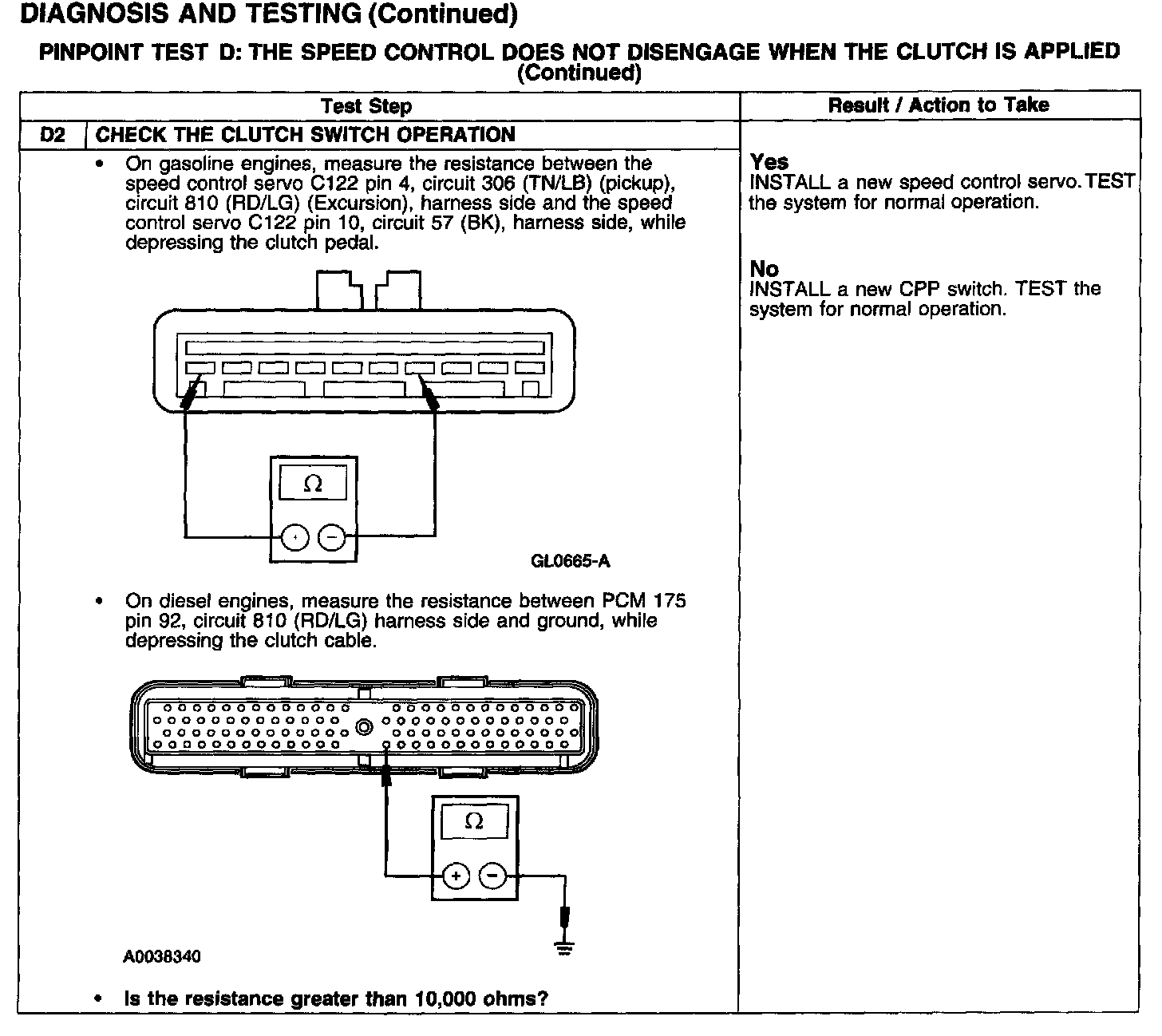

Test D2:
