Fuel Pressure Regulator

Fuel Pressure Regulator

REMOVAL

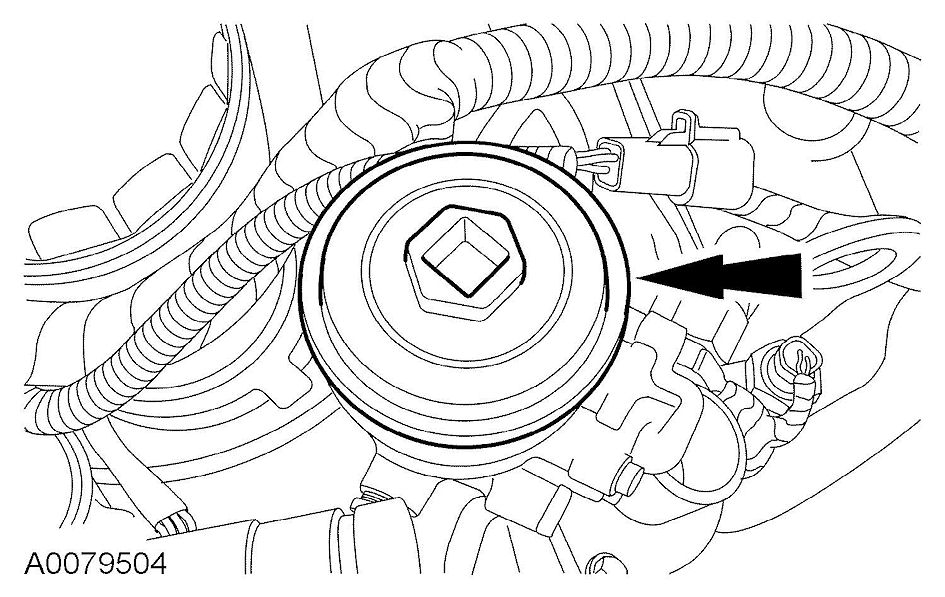

1. Remove the secondary fuel filter and remove all fuel from the fuel filter housing.





2. Disconnect the fuel return tube from the regulator cover.





3. Remove the screws and the fuel pressure regulator cover.

WARNING: CLEAN ALL FUEL RESIDUE FROM THE ENGINE COMPARTMENT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.





4. Remove and discard the fuel pressure regulator cover O-ring seal.





5. Remove the restrictor, spring and poppet valve.
6. Clean the fuel pressure regulator bore in the fuel filter housing.

INSTALLATION
1. To install, reverse the removal procedure.
