Pilot Bearing: Service and Repair

Pilot Bearing

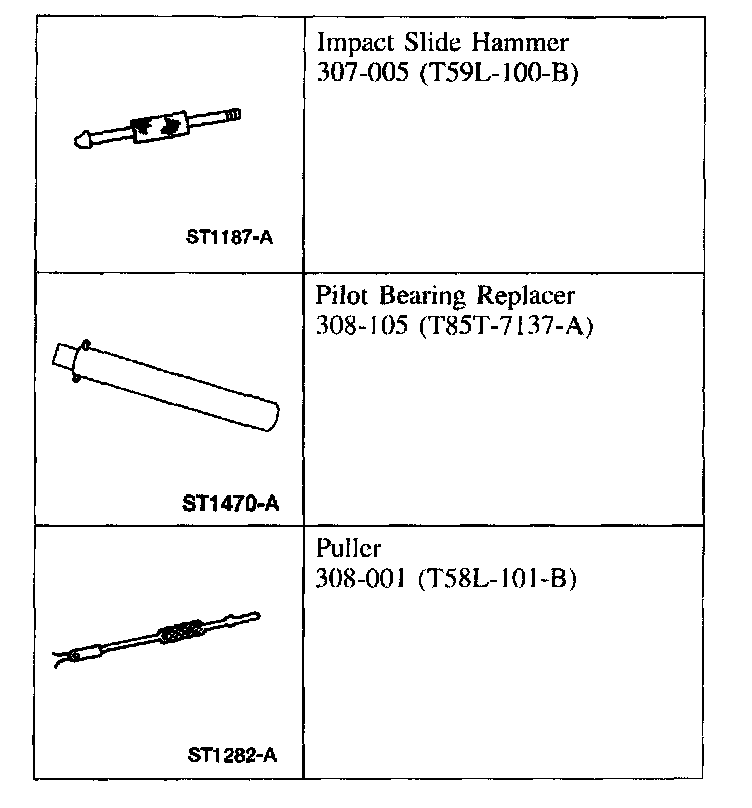

Special Tool(s)

Removal

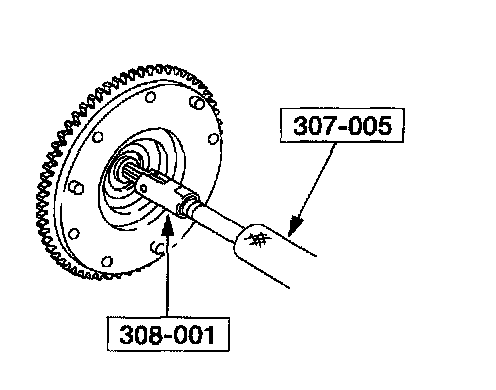

1. Using the special tools, remove and discard the transmission input shaft pilot bearing.

Installation





1. CAUTION: Never install a used transmission input shaft pilot bearing.

NOTE: The new transmission input shaft pilot bearing is pregreased and does not require additional lubrication.

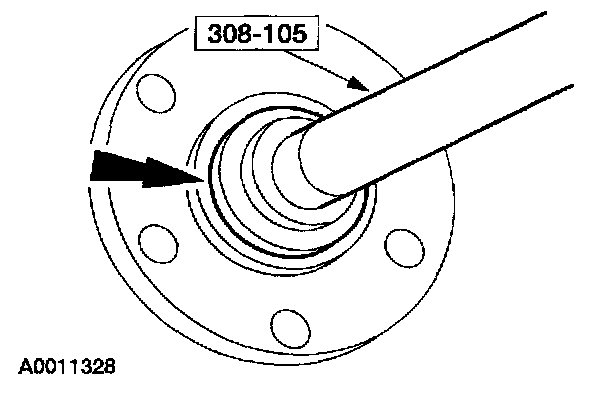

Using a soft-face hammer and the special tool, install the new transmission input shaft pilot bearing.
