Crankshaft Main Bearing

Crankshaft
Main Bearing Journal Diameter 67.482 - 67.504
Maximum Out-of-Round 0.0075 mm Between Cross Sections
Maximum Taper (Straightness) 0.004 mm
Runout: FIM of center journals when located on front and rear journal 0.05 mm 3 Places
Clearance - Crankshaft Journal to Main Bearing Clearance 0.048 - 0.024 mm
Connecting Rod Journal Diameter 53.003 - 52.983 mm
Maximum Out-of-Round 0.0075 mm Between Cross Sections
Maximum Taper 0.004 mm
Crankshaft End Play 0.075 - 0.377

Crankshaft Main Bearing Bolts

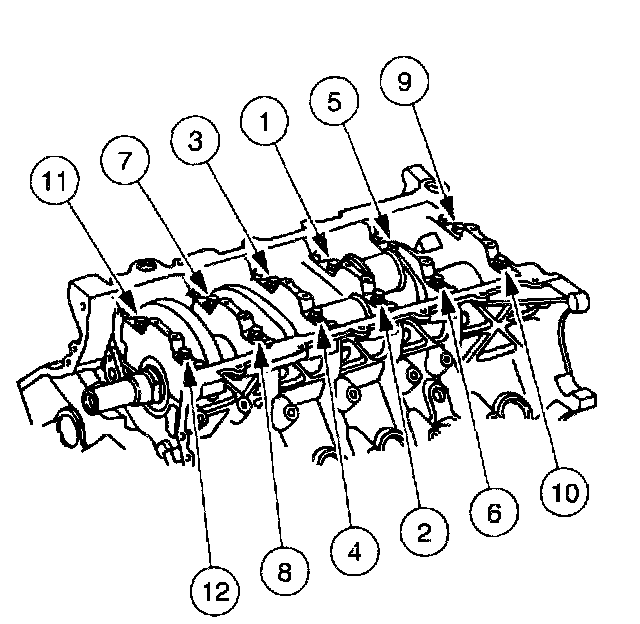

Tighten fasteners 1 through 12 in two stages, in the sequence shown.
^ Stage 1: Tighten to 40 Nm (30 ft. lbs.).
^ Stage 2: Tighten an additional 90 degrees.

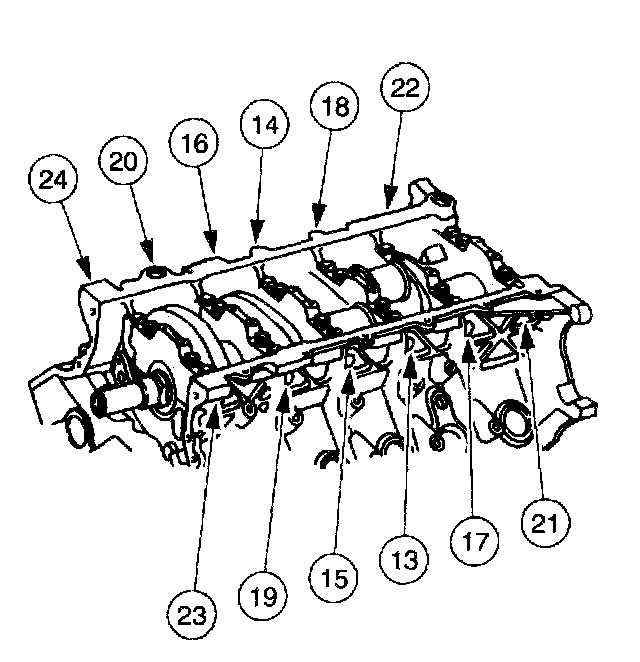

Tighten fasteners 13 through 24 in two stages, in the sequence shown.
^ Stage 1: Tighten to 30 Nm (22 ft. lbs.).
^ Stage 2: Tighten an additional 90 degrees.
