Torque Specifications

Torque Specifications

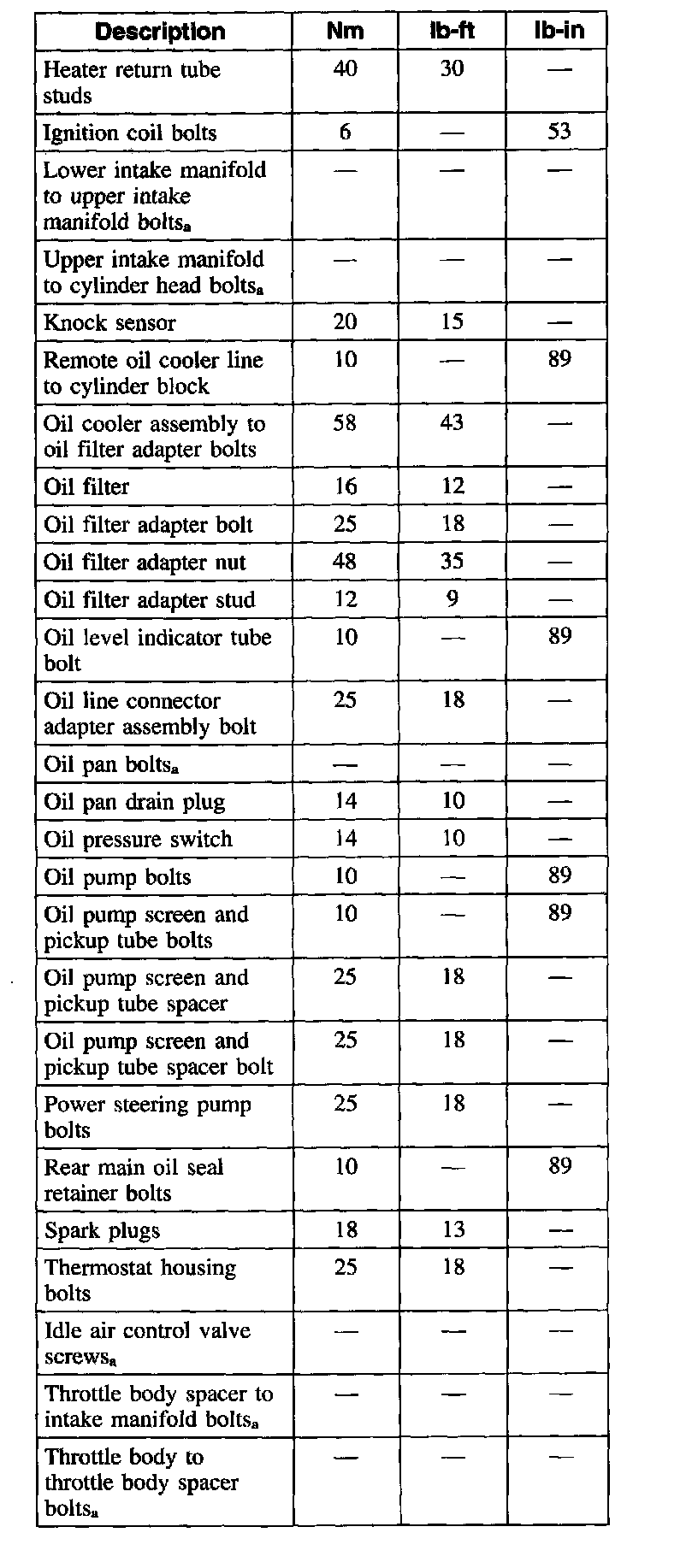

Part 1 Of 4:

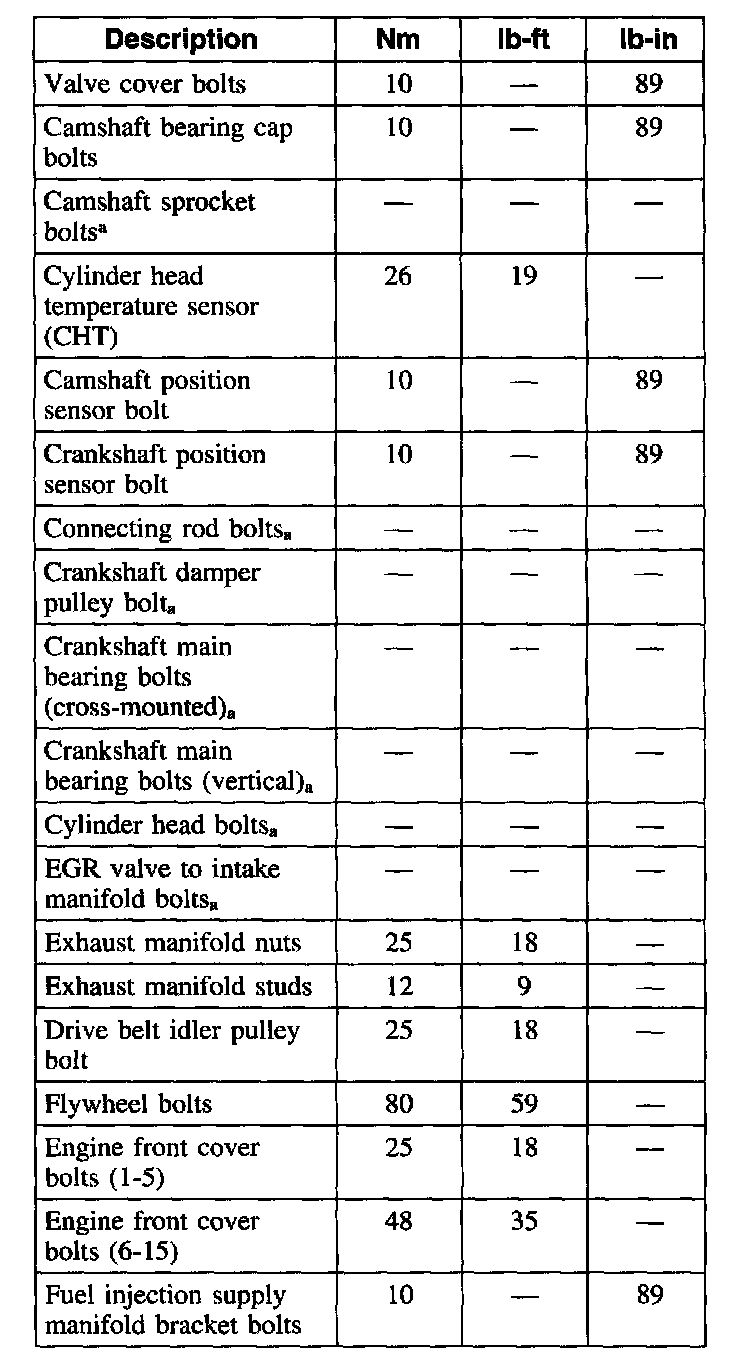

Part 2 Of 4:

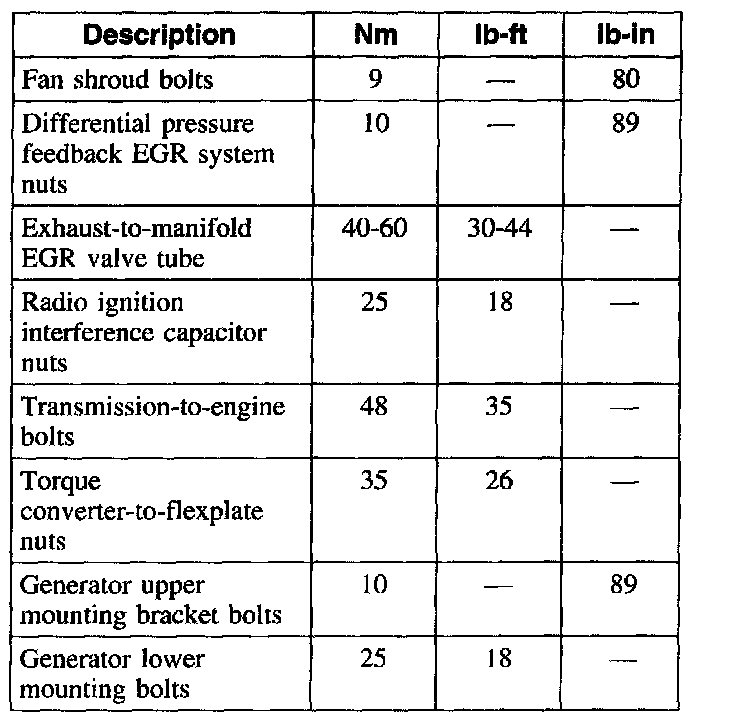

Part 3 Of 4:

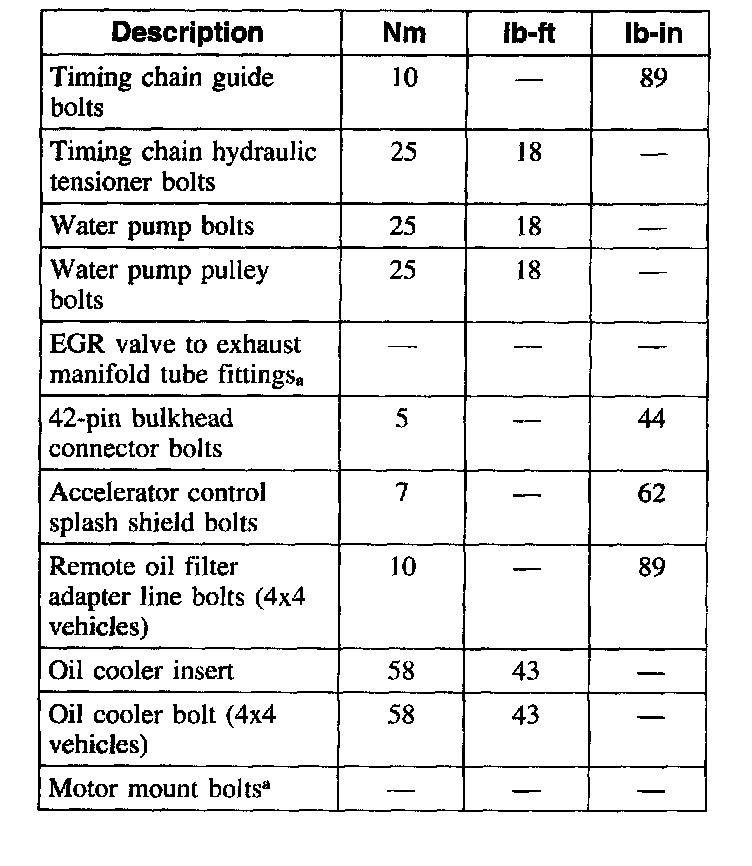

Part 4 Of 4:





a Refer to the procedure


Right Hand:

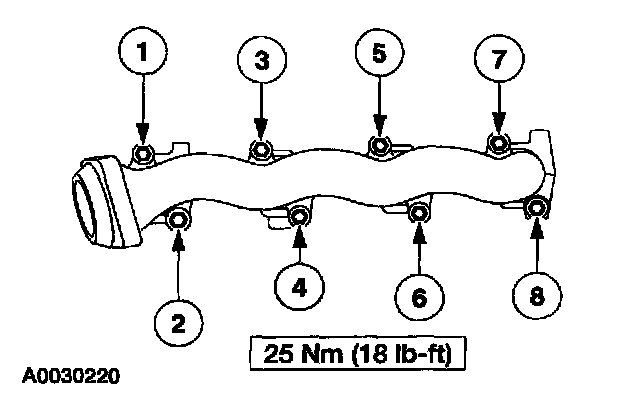

Exhaust Manifold

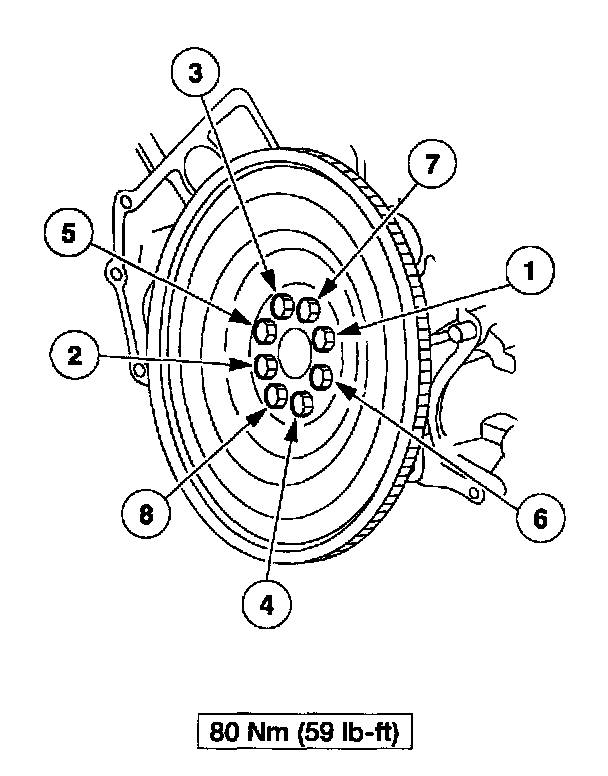

Flexplate/Flywheel
