U Code Charts

U2005 - Audio Unit
The manufacturer only provided the following information for this code.

U2005 is retrieved if RACP is not present, disconnected, or inoperative.


If vehicle is equipped with RACP continue with the following Pinpoint test.

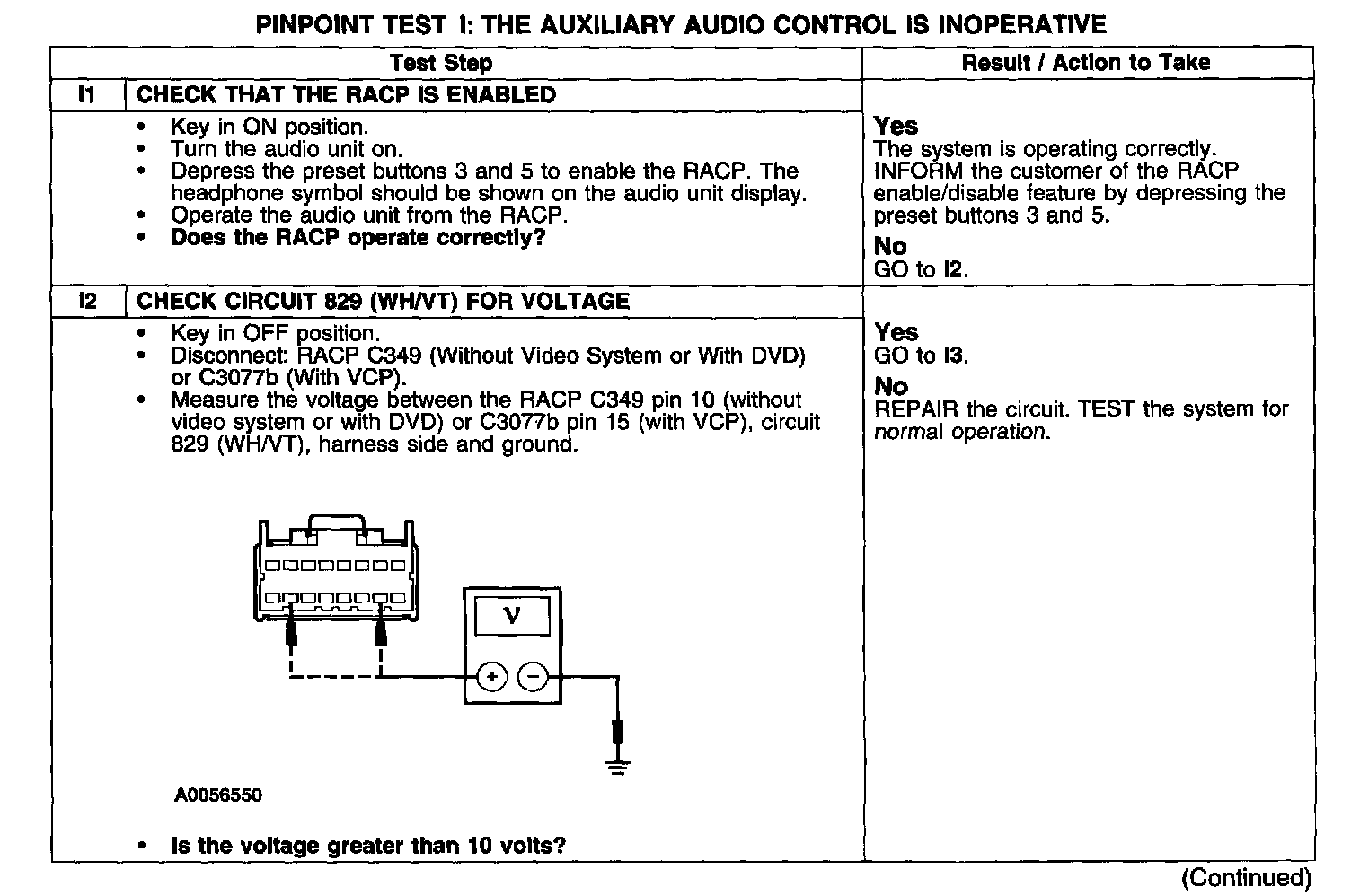

PINPOINT TEST I: THE AUXILIARY AUDIO CONTROL IS INOPERATIVE

Test I1-I2:

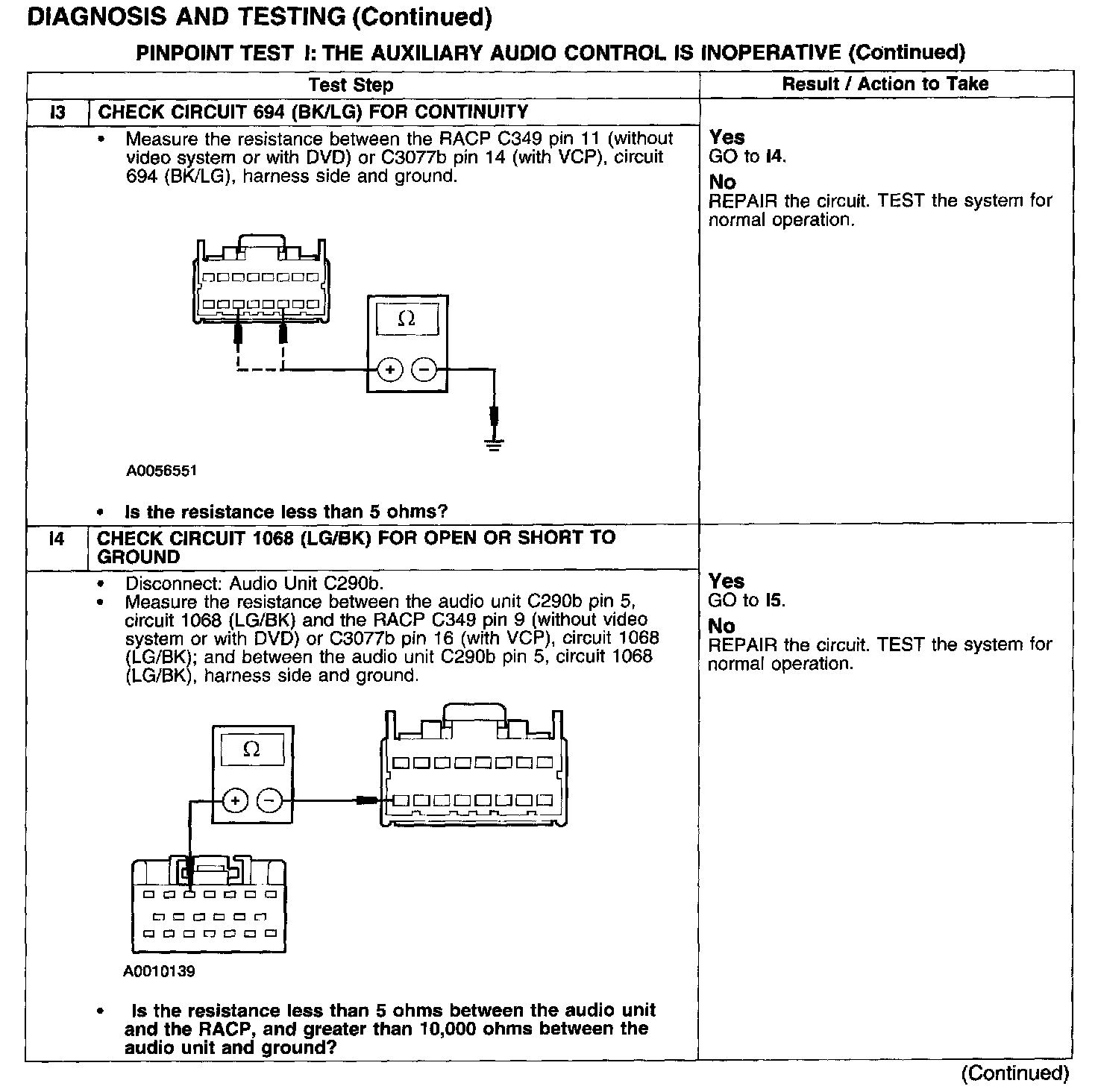

Test I3-I4:

Test I5-I6:
