Pressure Feedback Exhaust Sensor: Service and Repair

DIFFERENTIAL PRESSURE FEEDBACK EXHAUST GAS RECIRCULATION (EGR) SYSTEM

REMOVAL
1. Disconnect the battery ground cable.







2. Remove the bolts and remove the engine appearance cover (if equipped).

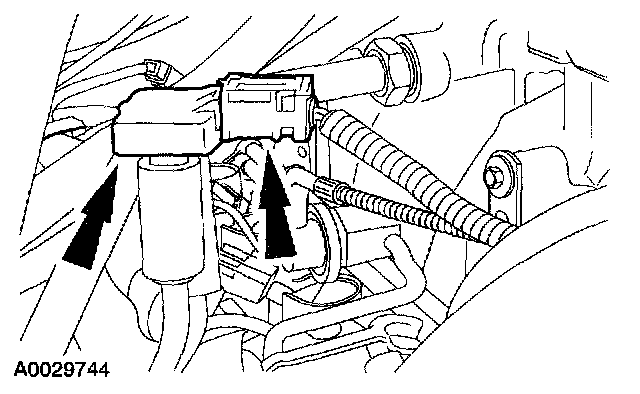

3. Disconnect the electrical connector and remove the differential pressure feedback EGR sensor from the EGR tube.

INSTALLATION
1. To install, reverse the removal procedure.
