In-Vehicle Temperature Sensor

IN-VEHICLE TEMPERATURE SENSOR

REMOVAL







1. Remove the screws and the instrument cluster finish panel.
- Disconnect the electrical connectors.

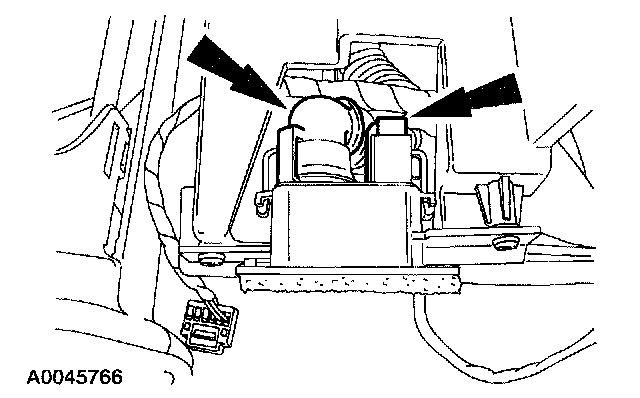

2. Disconnect the aspirator hose and the in-vehicle temperature sensor electrical connector.

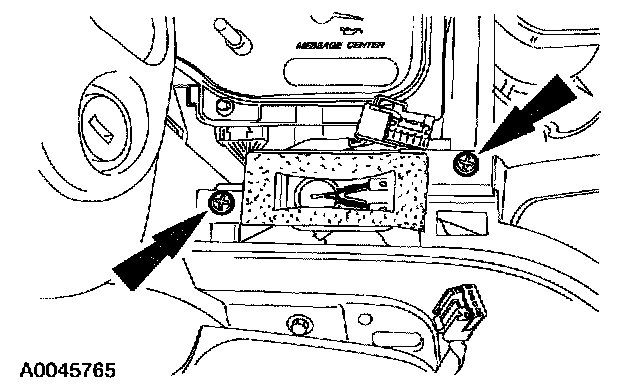

3. Remove the screws and the in-vehicle temperature sensor.

INSTALLATION
1. To install, reverse the removal procedure.
