Engine Temperature Sensor: Service and Repair

CYLINDER HEAD TEMPERATURE (CHT) SENSOR

REMOVAL and INSTALLATION

1. Remove the intake manifold.

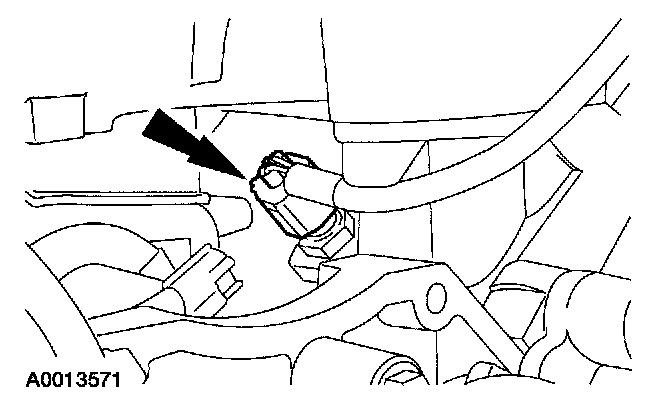

2. Disconnect the cylinder head temperature (CHT) sensor.

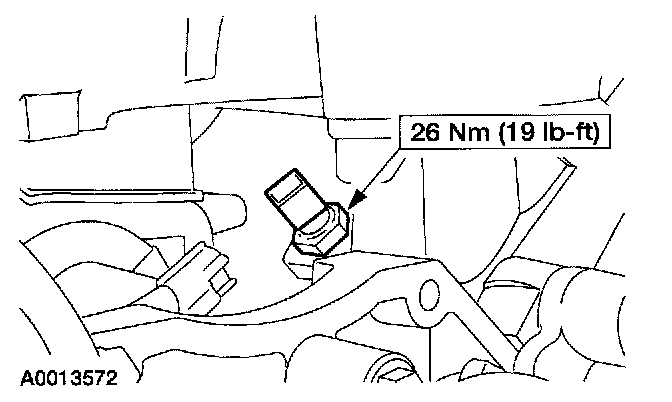

3. Remove the CHT sensor.






4. To install, reverse the removal procedure.
