Test L

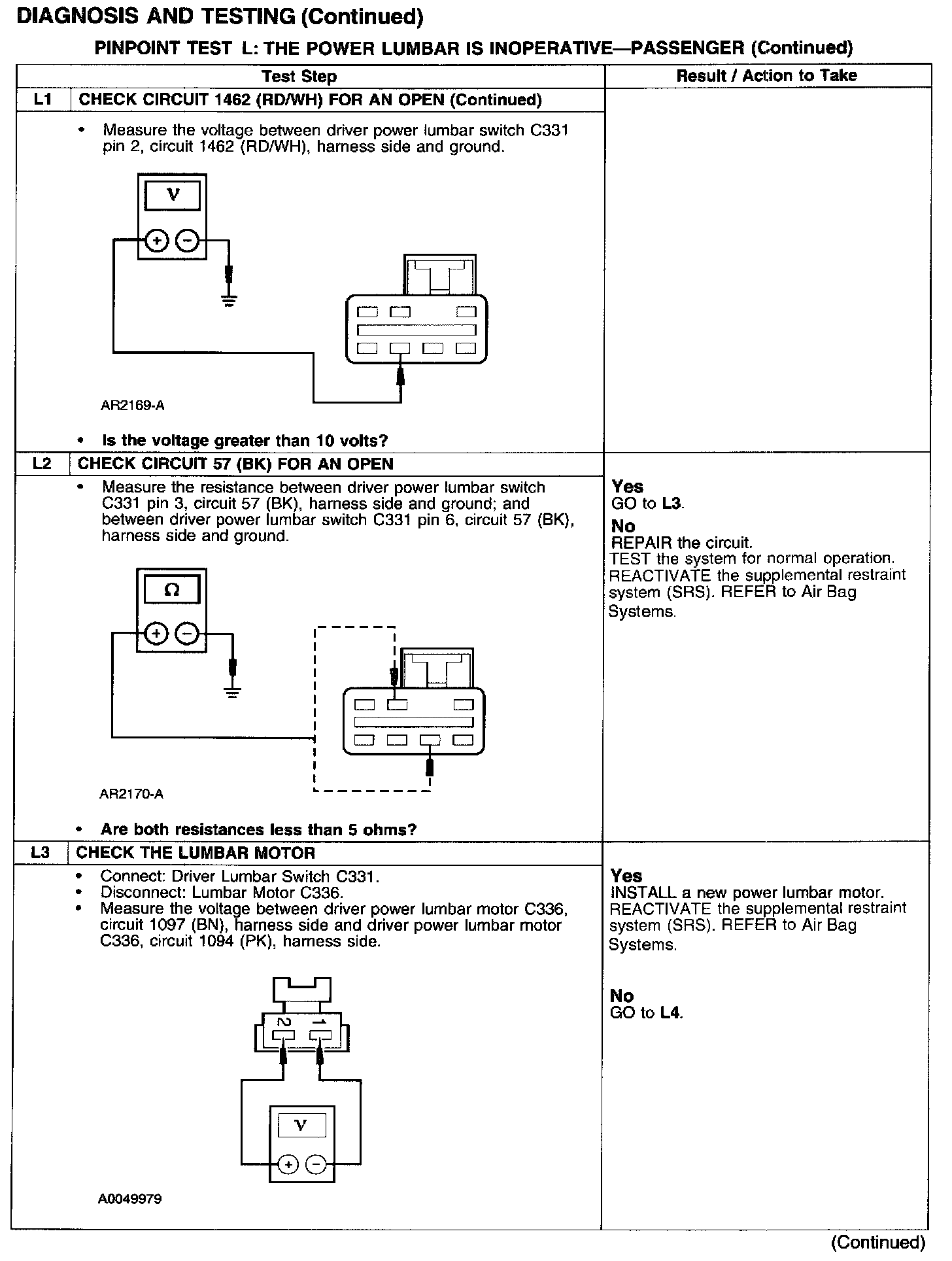

PINPOINT TEST L: THE POWER LUMBAR IS INOPERATIVE - PASSENGER


Test L1:






Test L1-L3:






Test L3-L5:
