Home >> Ford >> 2003 >> Expedition 4WD V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 109

Diagram Set 109

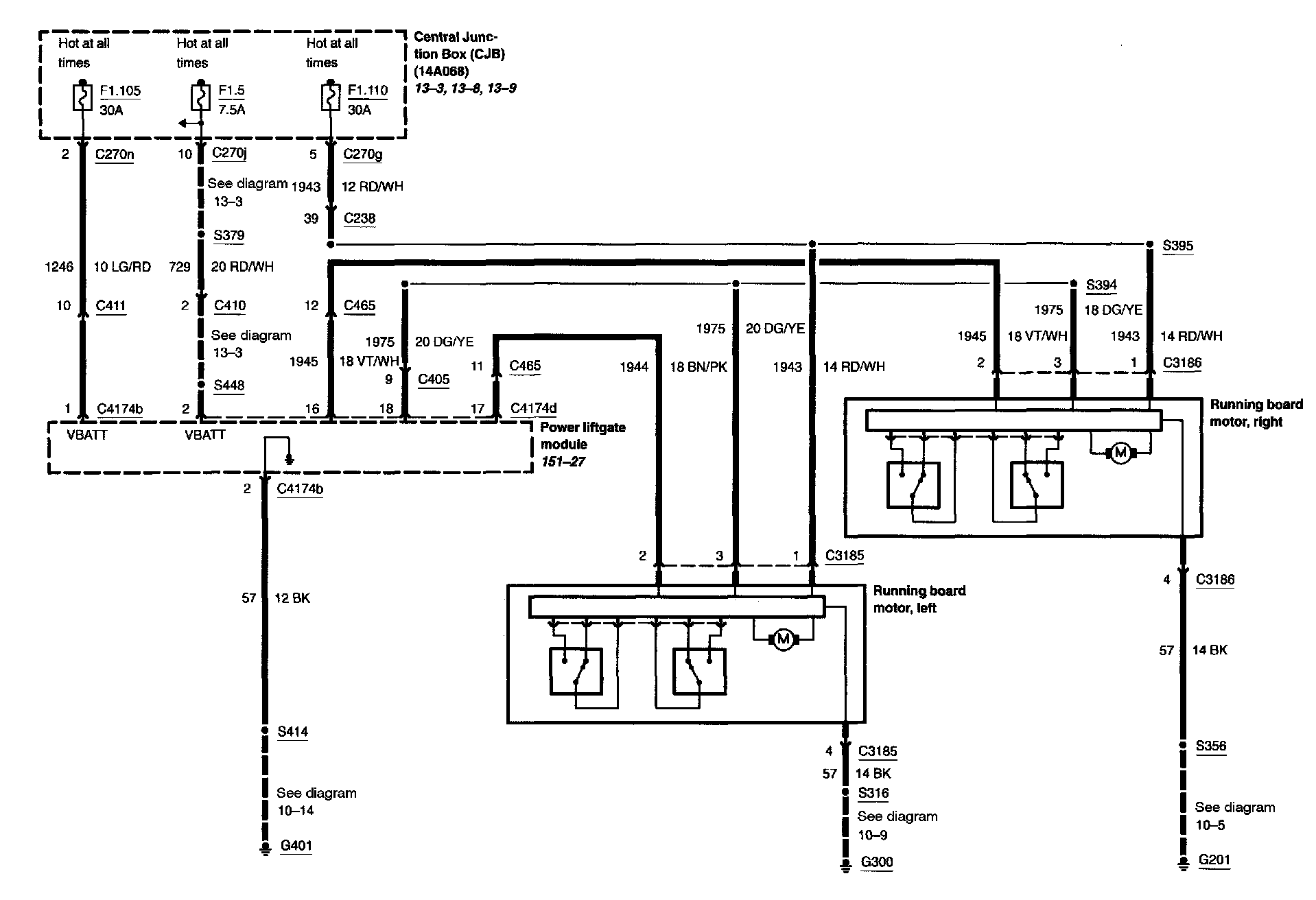

109-1, System Overview:



109-2:



109-3:



109-4:



109-5:
