Test A
Test A
PINPOINT TEST A: ELECTRONIC SHIFT FUNCTIONAL TEST
Test A1-A5:
Test A6-A11:
Test A12-A16:

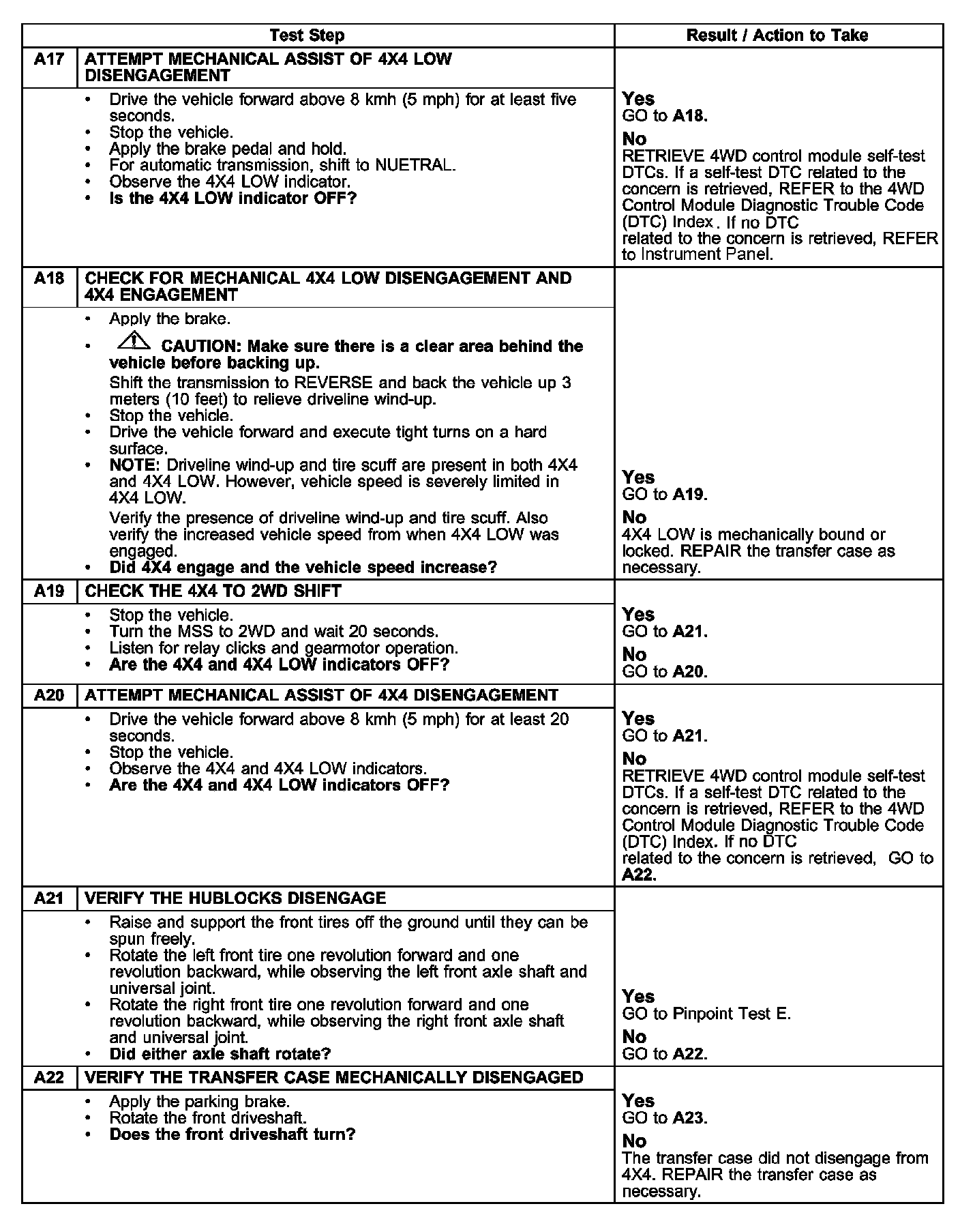

Test A17-A22:
Test A23-A24:
CAUTION:
The function test must be carried out on a hard surface in a vacant area without traffic.
