Climate Control Assembly - DATC
CLIMATE CONTROL ASSEMBLY - DATCREMOVAL

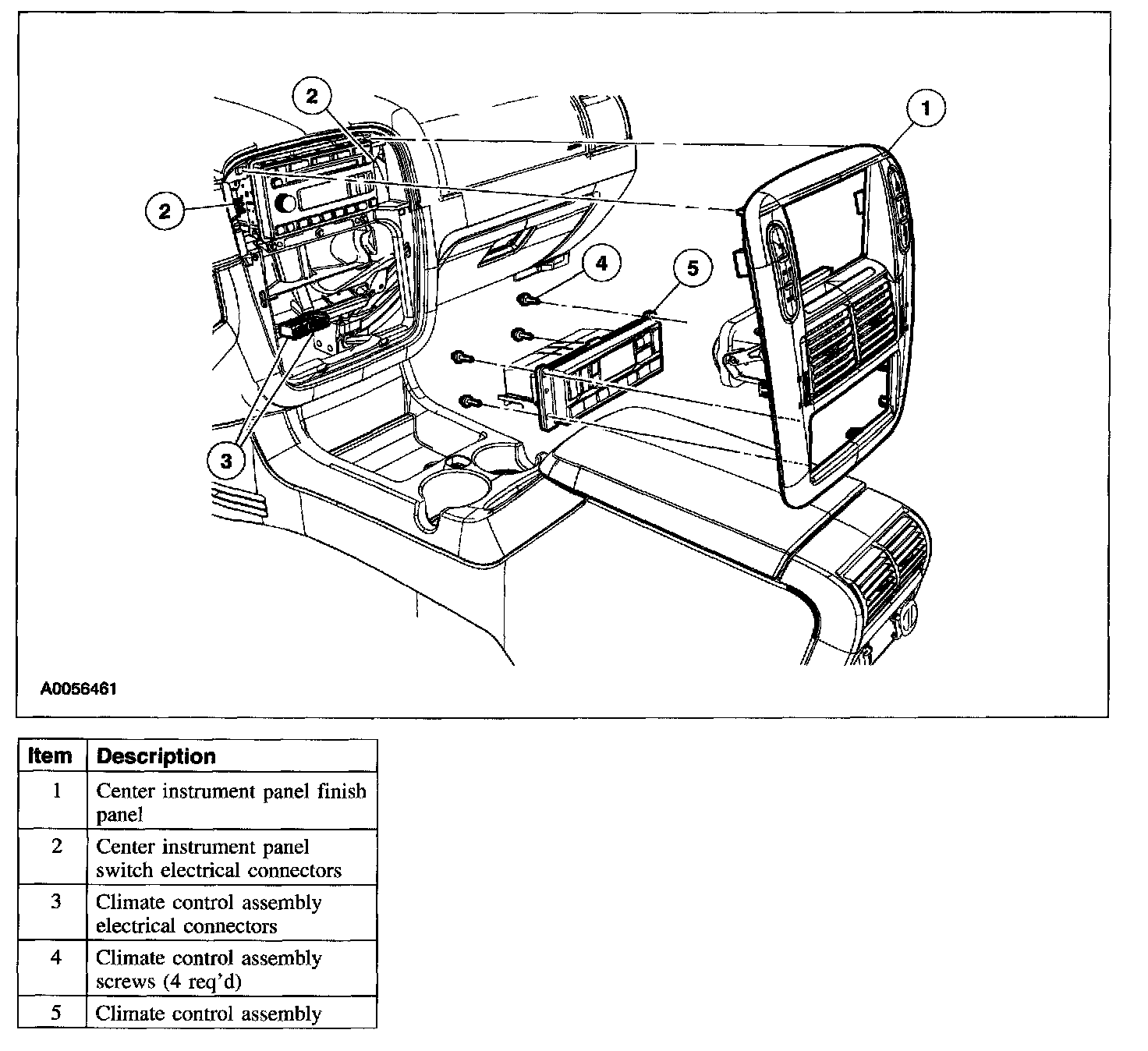

1. Remove the components in the order indicated in the illustration and table.
INSTALLATION
1. To install, reverse the removal procedure.
REMOVAL
1. Remove the components in the order indicated in the illustration and table.
INSTALLATION
1. To install, reverse the removal procedure.
