Body - License Plate Shield Cracked/Broken
TSB 05-9-505/16/05
LICENSE PLATE SHIELD CRACKS OR BREAKS -
VEHICLES BUILT BEFORE 10/14/2004 WITH XLS
TRIM
FORD:
2003-2005 Explorer
ISSUE
Some 2003-2005 Explorer 4dr vehicles built before 10/14/2004 and with XLS trim, may exhibit the license plate shield cracking or breaking in cold temperatures. This may be due to the liftgate release handle coming in contact with the shield during use.
ACTION
If the license plate shield is damaged, replace the shield and the rear liftgate release handle.
SERVICE PROCEDURE
1. Replace the liftgate release handle per Section 501-14 of the Workshop Manual.
LICENSE PLATE SHIELD REPLACEMENT
1. Remove the four (4) attachment bolts and remove the license plate shield (Figure 1).
2. Install the replacement shield and torque the bolts to 108 lb-in (12 N.m).

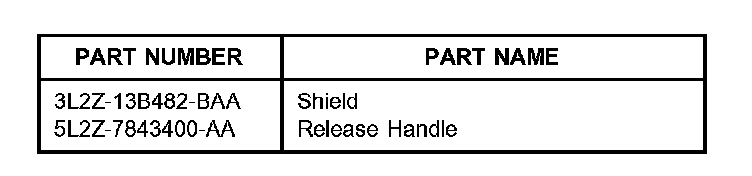

Parts Block
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage
OPERATION DESCRIPTION TIME
050905A 2003-2005 Explorer 4 Door 0.4 Hr.
Replace The Rear Liftgate
Release Handle And
License Plate Shield (Do
Not Use With 46404B,
46404B10, P42D)
DEALER CODING
CONDITION
BASIC PART NO. CODE
7843400 01
