Brake Pedal Assy: Service and Repair

Brake Pedal
1. Disconnect the battery ground cable.

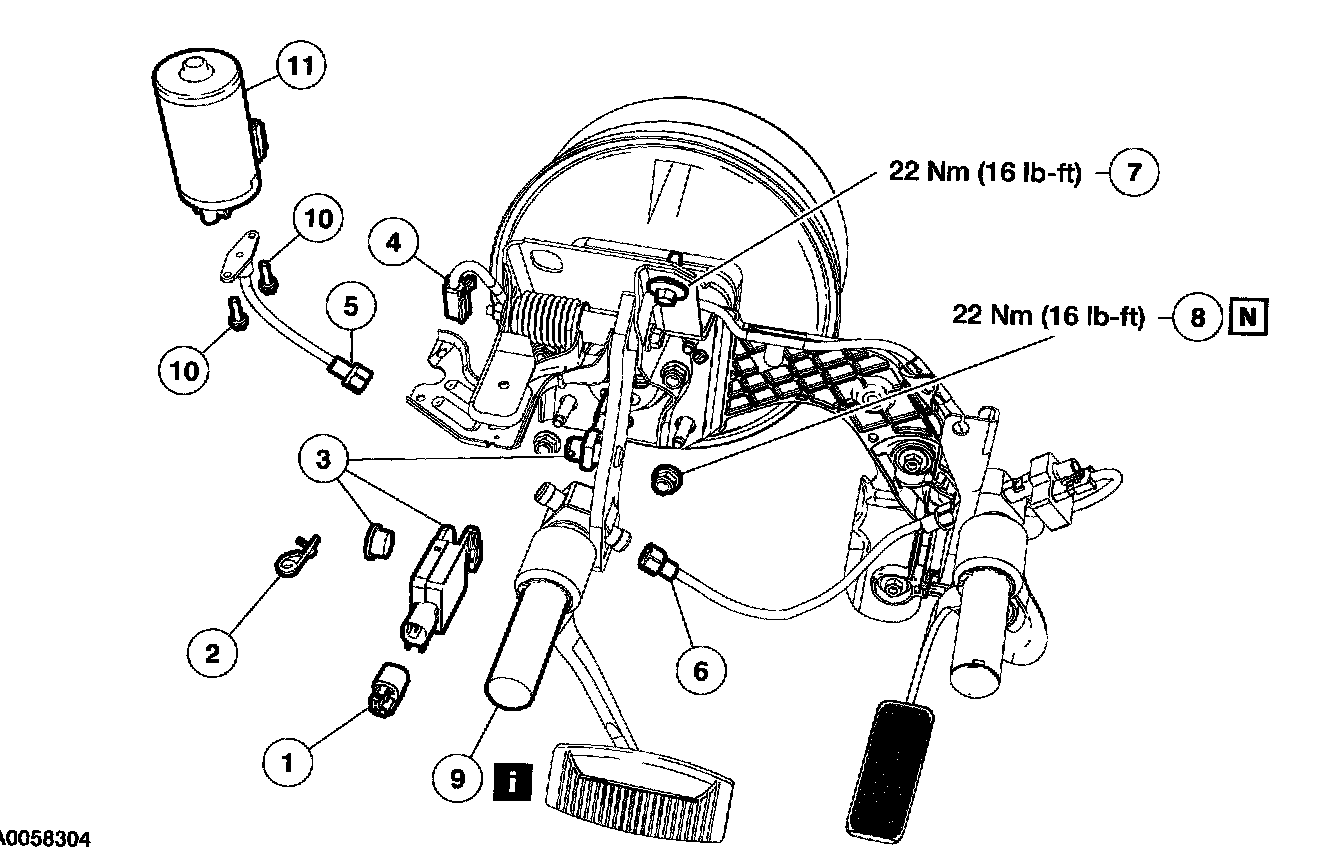

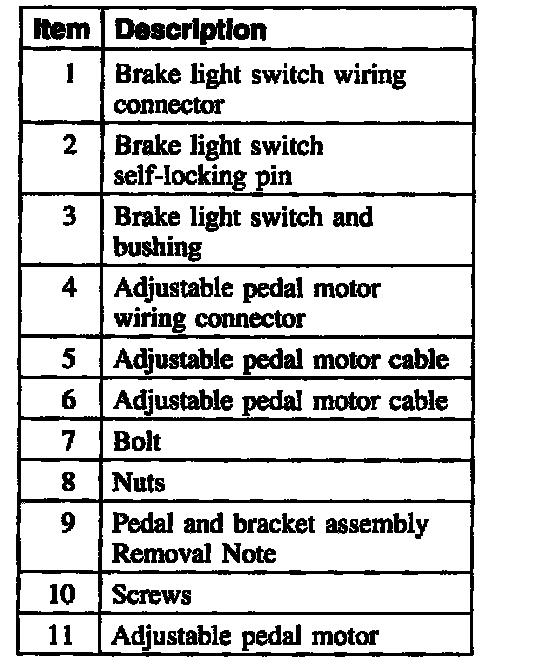

2. Remove the components in the order indicated in the following illustration and table.
3. To install reverse the removal procedure.

Item 9: Pedal and Bracket Assembly Removal Note





1. Remove the wiper arms.
^ Raise the wiper arm to the vertical position, then pull outward to release the retainer.





2. Remove the cowl grille.
^ The grille is secured with 14 spring clips. Carefully pry the grille upward to release the clips.

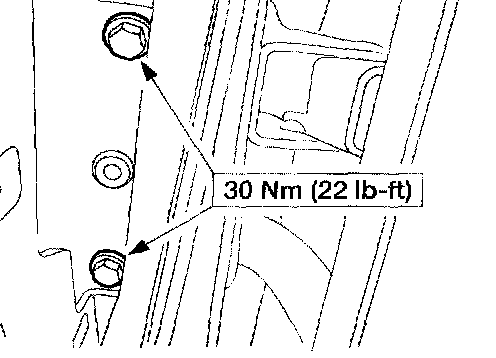

3. Remove the instrument panel support bolt.
4. Remove the front console.

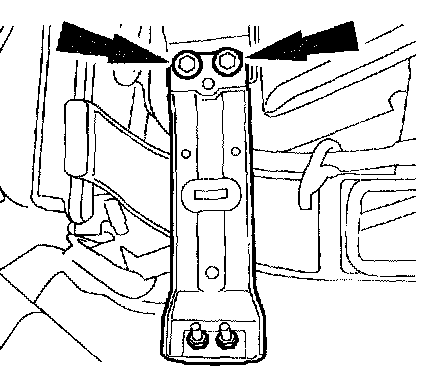

5. Remove the four instrument panel support bracket screws.

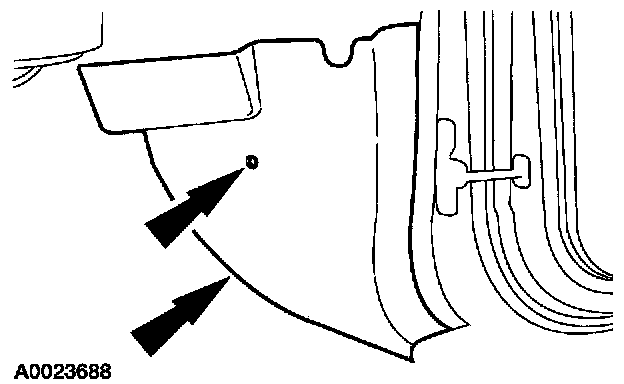

6. Remove the door scuff plates.





7. Remove the retainer and the cowl panels.

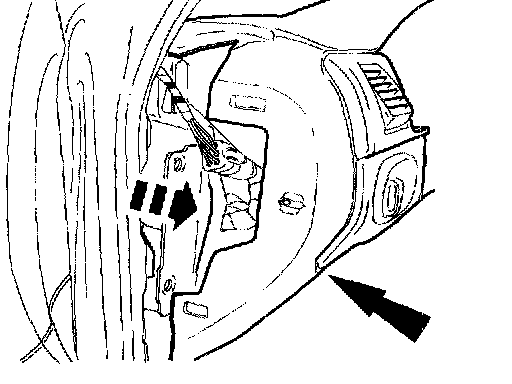

8. Remove the finish panels.

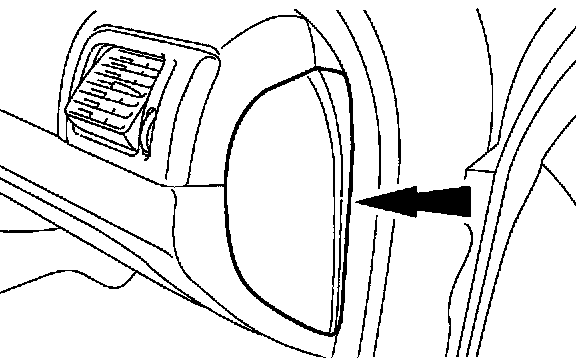

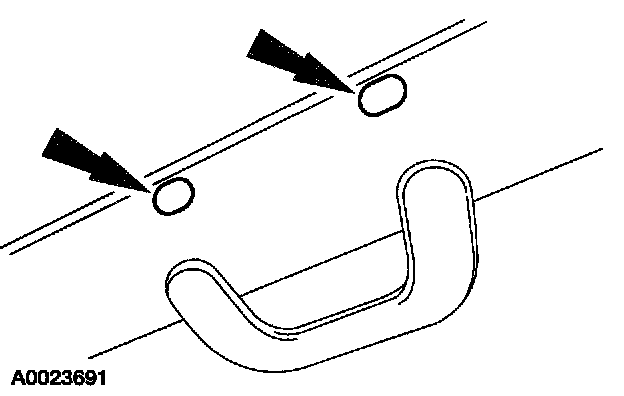

9. Remove the caps.





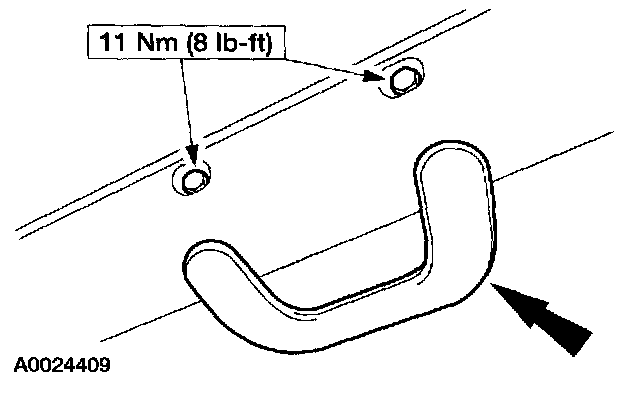

10. Remove the assist handles.





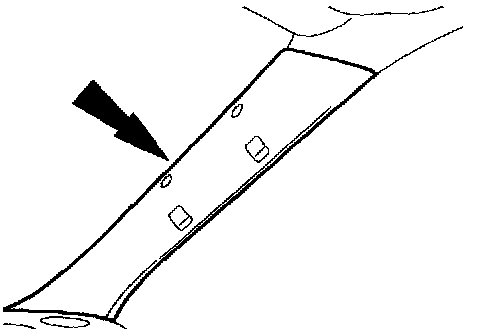

11. Remove the moldings.

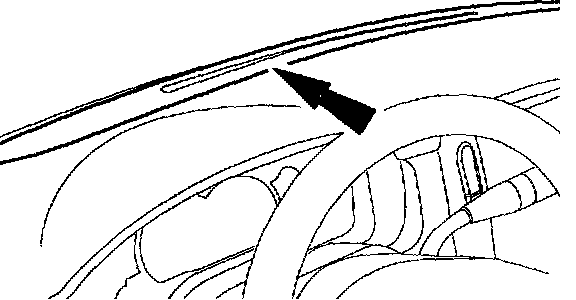

12. Remove the defroster grille.





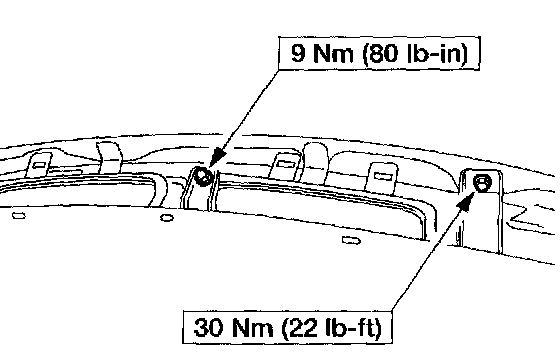

13. Remove the instrument panel support bolts.





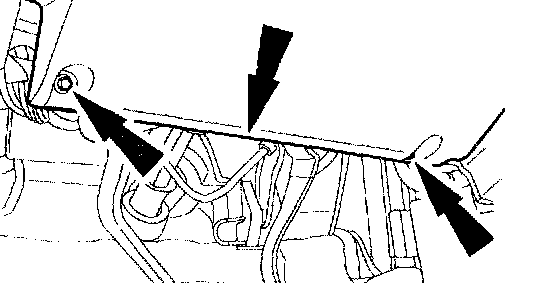

14. Remove the screws and the finish panel.

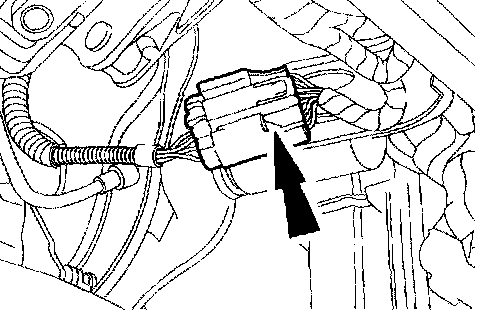

15. Disconnect the wiring harness connector.

16. CAUTION: Do not allow the steering wheel to rotate while the steering column intermediate shaft is disconnected or damage to the clockspring can result. If there is evidence that the steering column shaft has rotated, the clockspring must be removed and recentered.

Secure the steering wheel to prevent it from rotating.

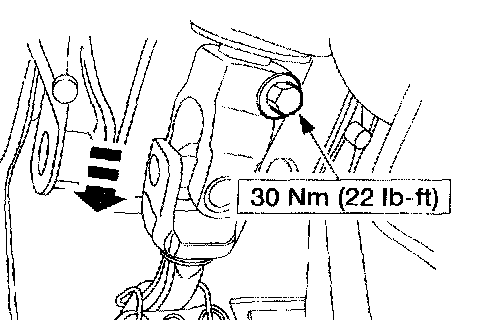

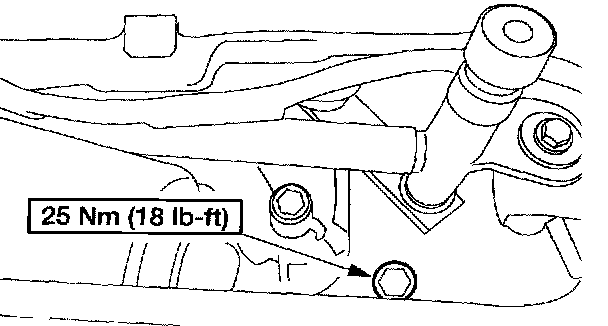

17. Remove the bolt and separate the steering shafts.





18. Remove the instrument panel support bolts.





19. Pull the instrument panel approximately one inch away from the dash panel.
