Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2003
>>
Explorer Sport 4WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Module Controlled
>>
Test K
Test K
PINPOINT TEST K: THE AUTOLOCK DOES NOT OPERATE CORRECTLY
Test K1-K5:
Test K6-K9:
Test K10-K13:
Test K14-K16:

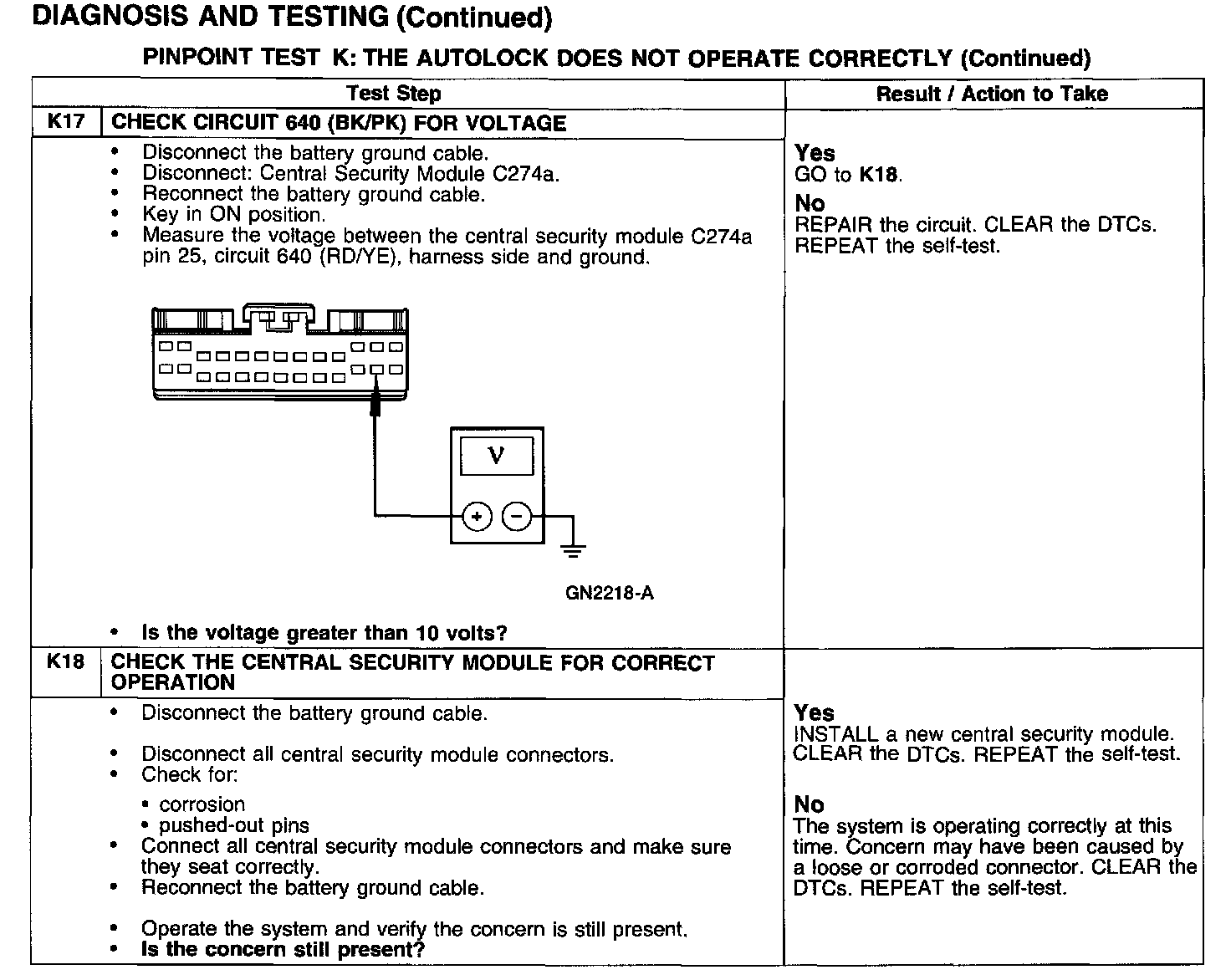

Test K17-K18:
