Test C: Speed Control Does Not Disengage W/Brakes Are Applied
Test C: Speed Control Does Not Disengage W/Brakes Are Applied
PINPOINT TEST C: THE SPEED CONTROL DOES NOT DISENGAGE WHEN THE BRAKES ARE APPLIED
Test C1-C3:

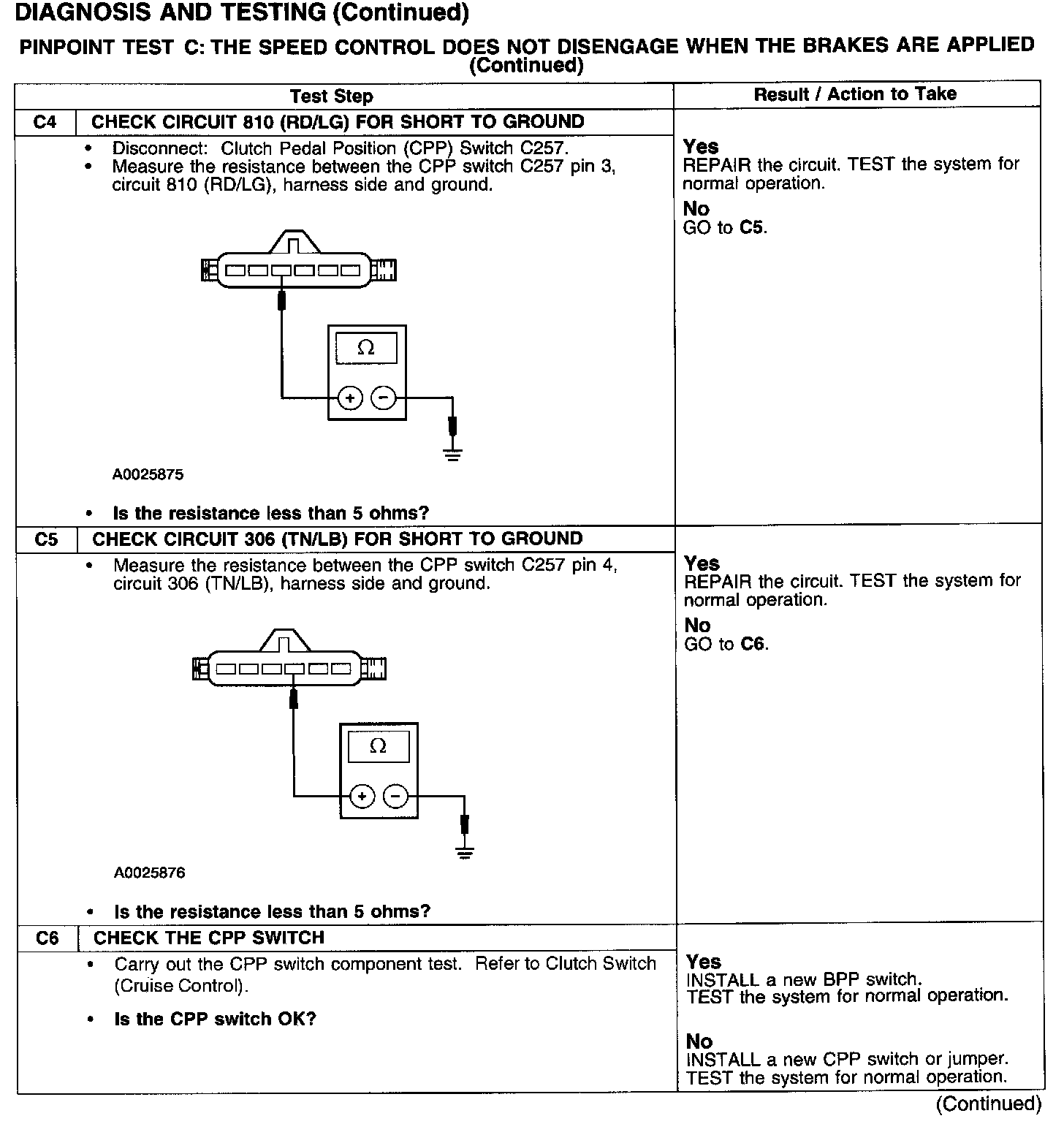

Test C4-C6:
Test C7-C9:
Test C10:
