Test F: Solenoid Mechanical Failure

PINPOINT TEST F: SOLENOID MECHANICAL FAILURE

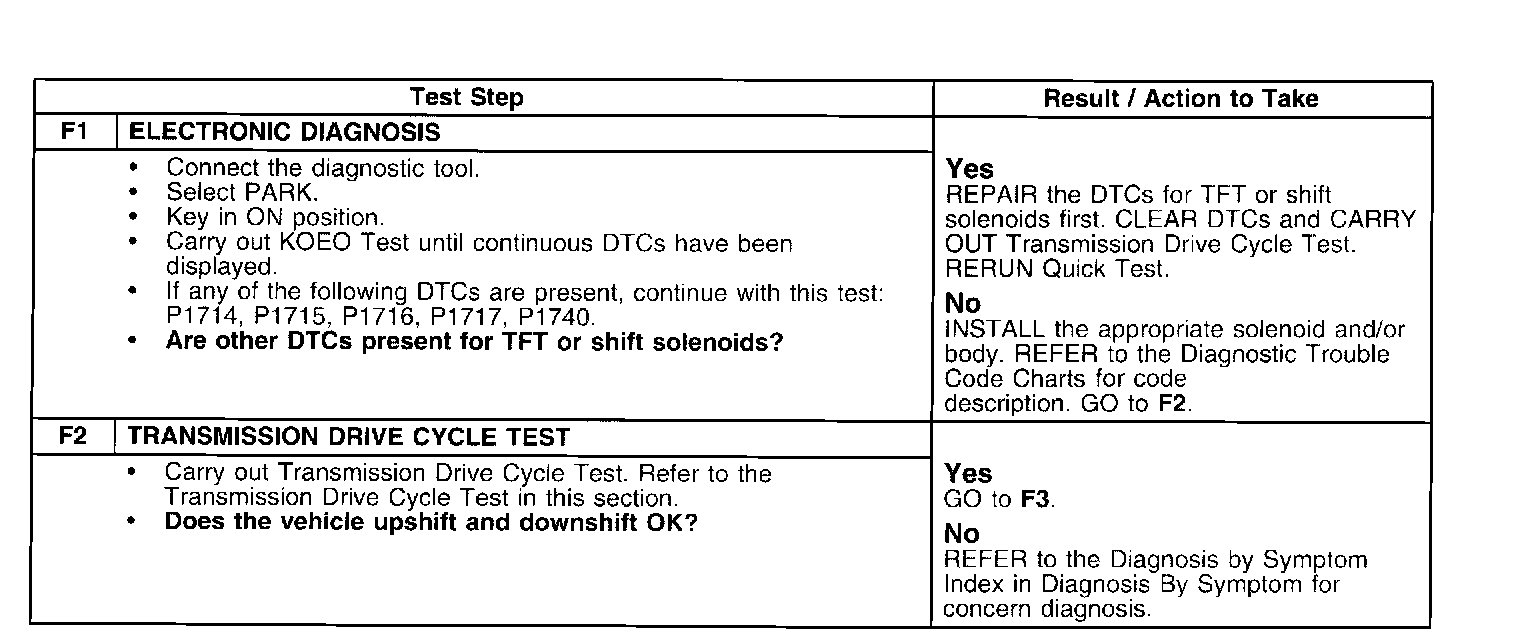

F1-F2:




F3:





NOTE: Repair all other DTCs before repairing the following DTCs: P1714, P171S, P1716, P1717, P1740.
