Vehicle Security Module (VSM)

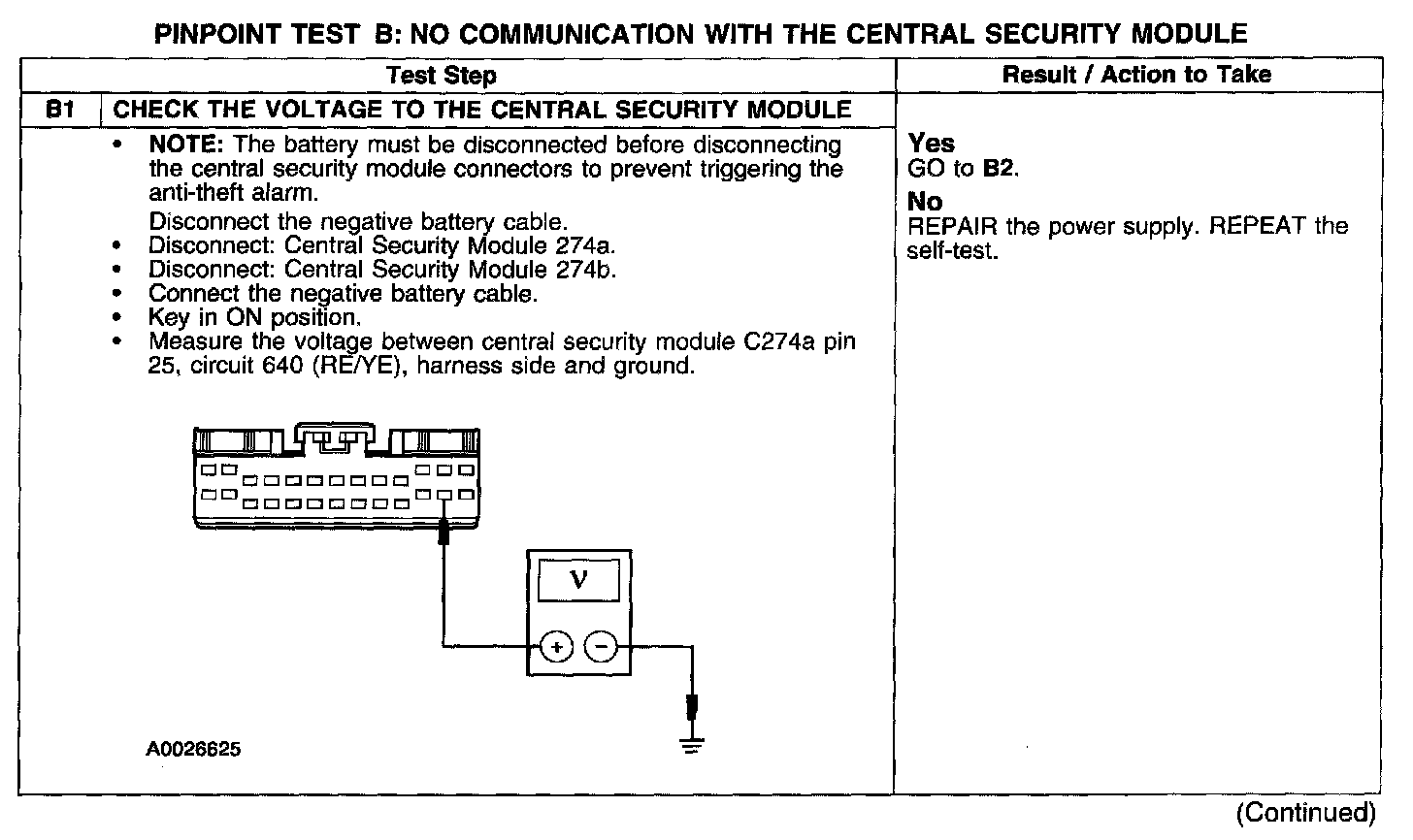

PINPOINT TEST B: NO COMMUNICATION WITH THE CENTRAL SECURITY MODULE


Test B1:






Test B1-B2:
