Test B

PINPOINT TEST B: ALL THE DOOR LOCKS ARE INOPERATIVE

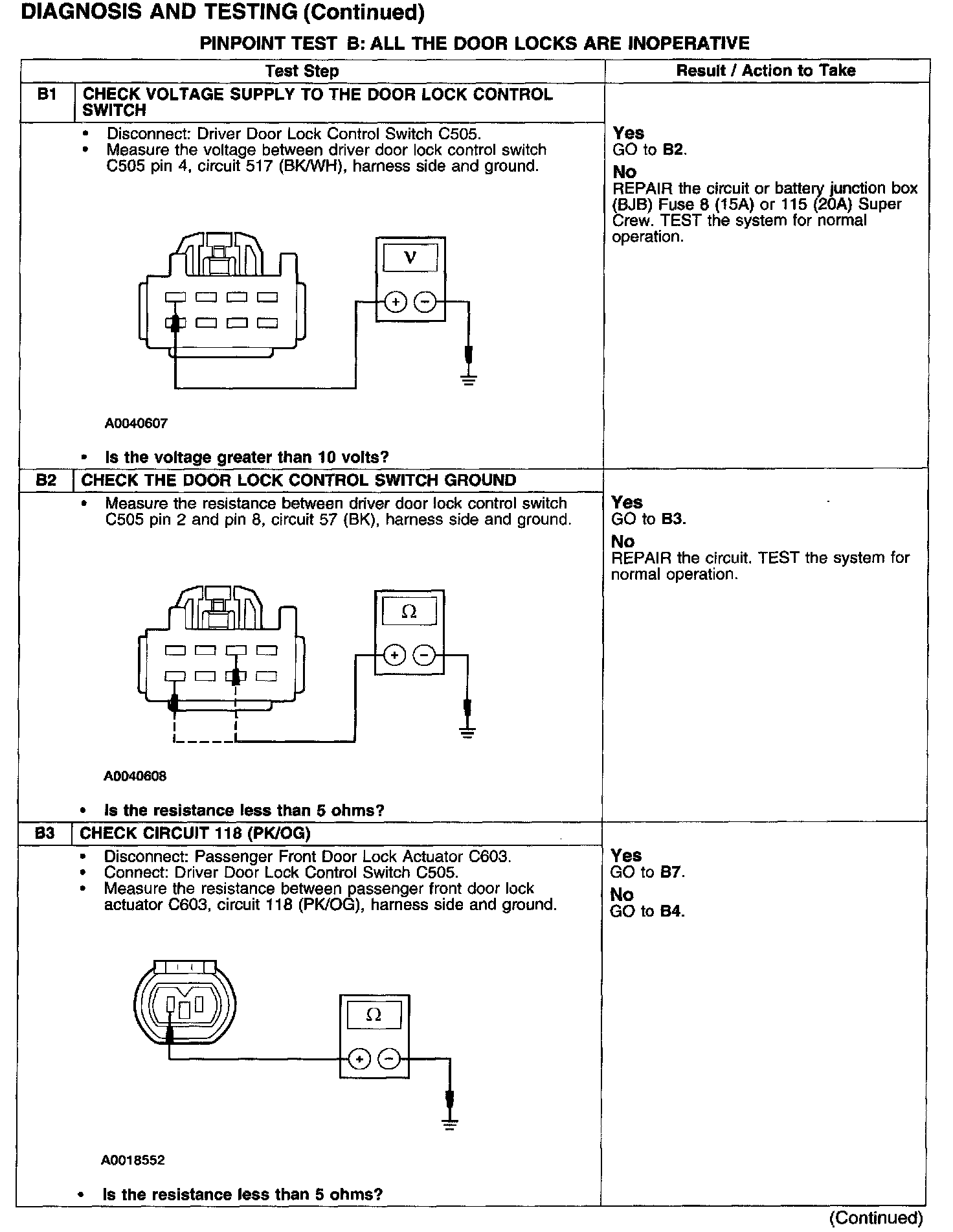

Test B1-B3:






Test B4-B5:

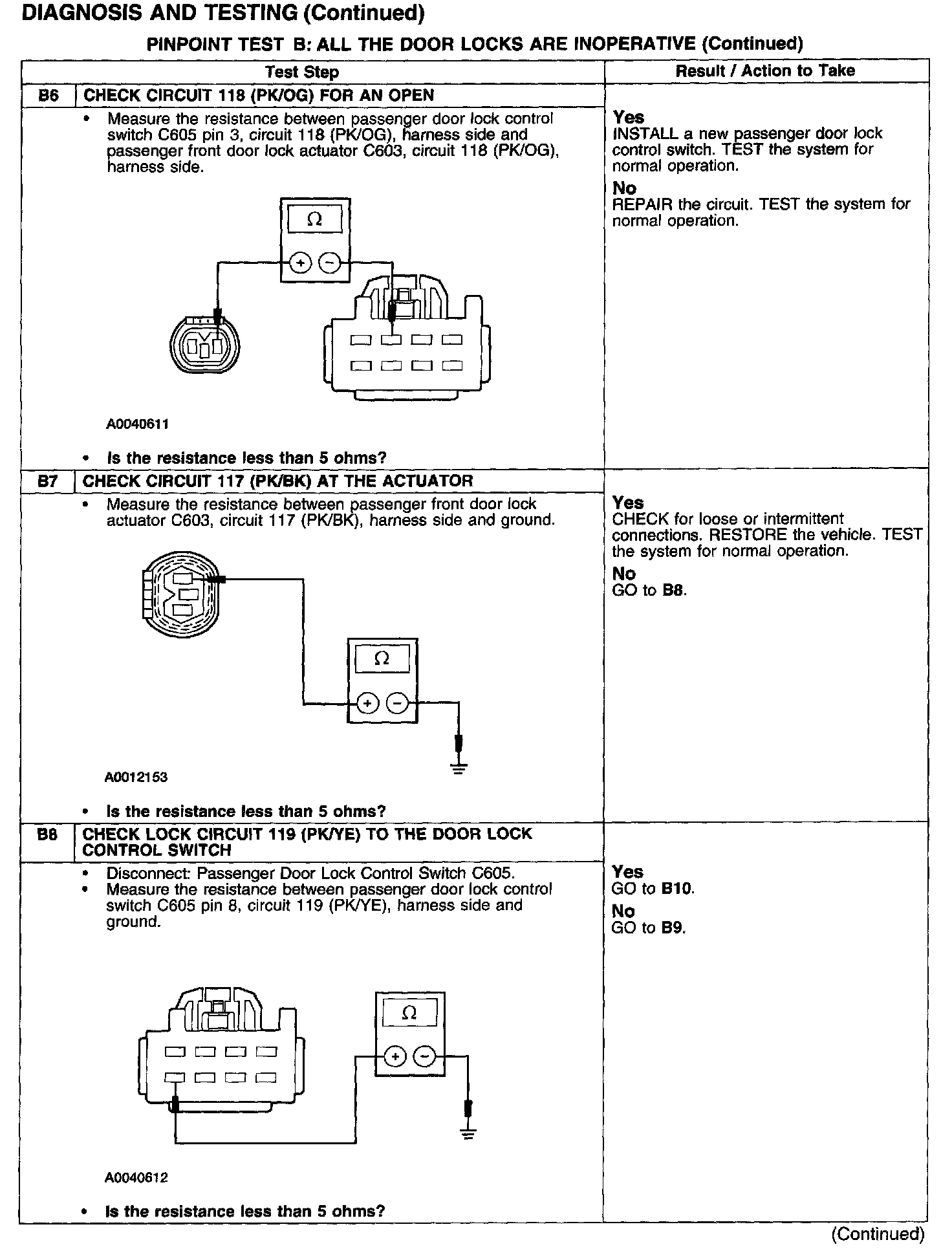

Test B6-B8:

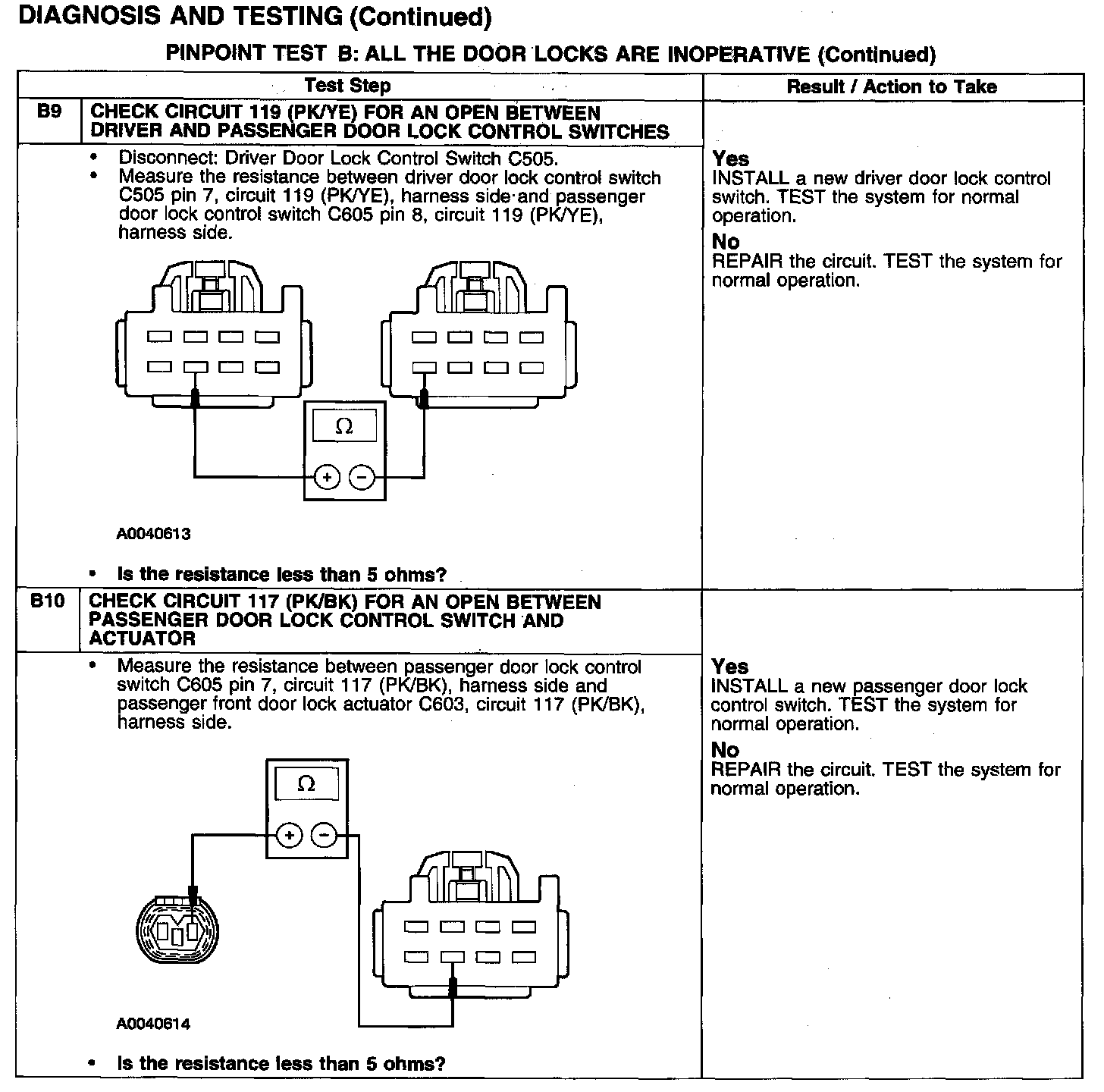

Test B9-B10:
