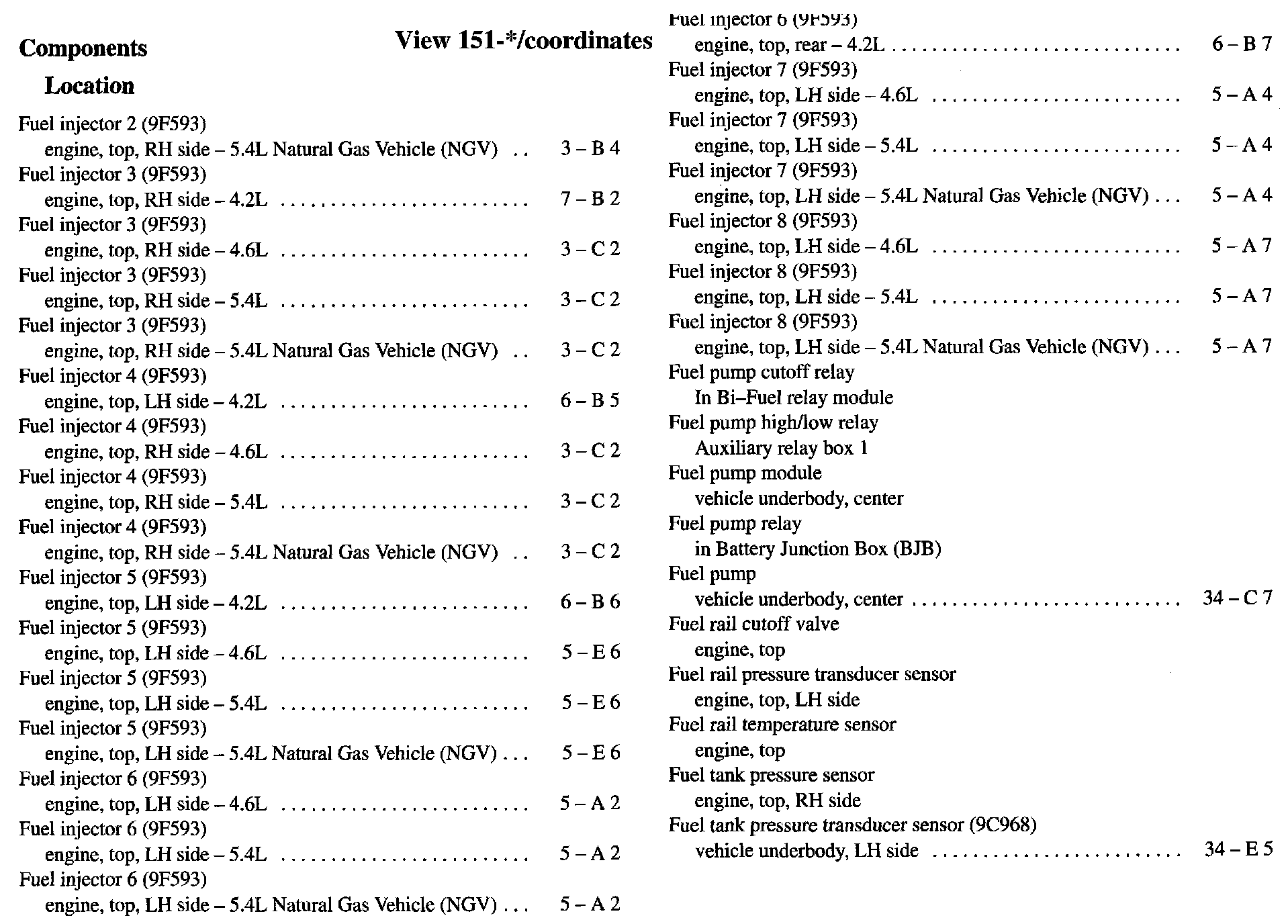

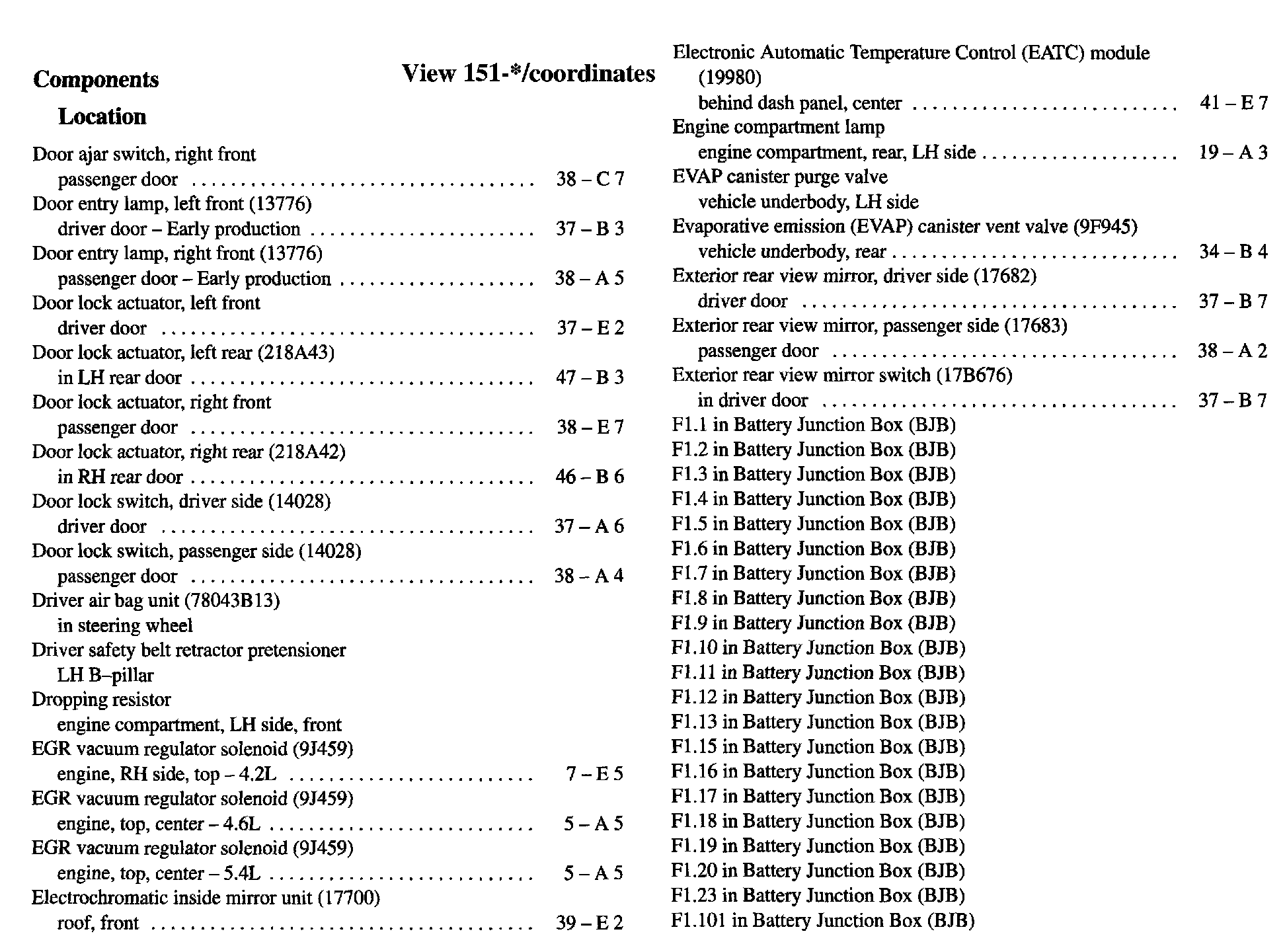

Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

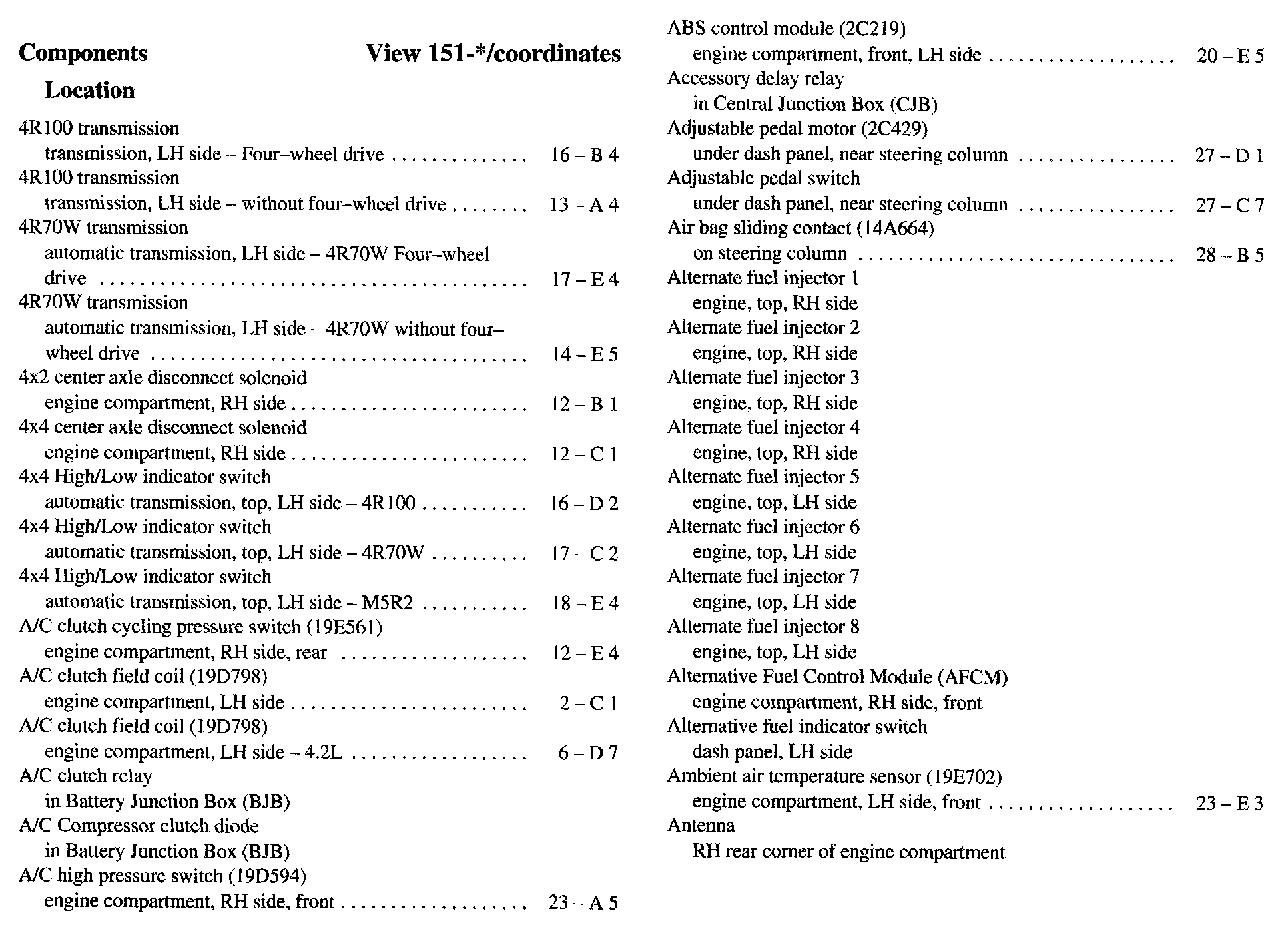

4R - An:
As - Co:

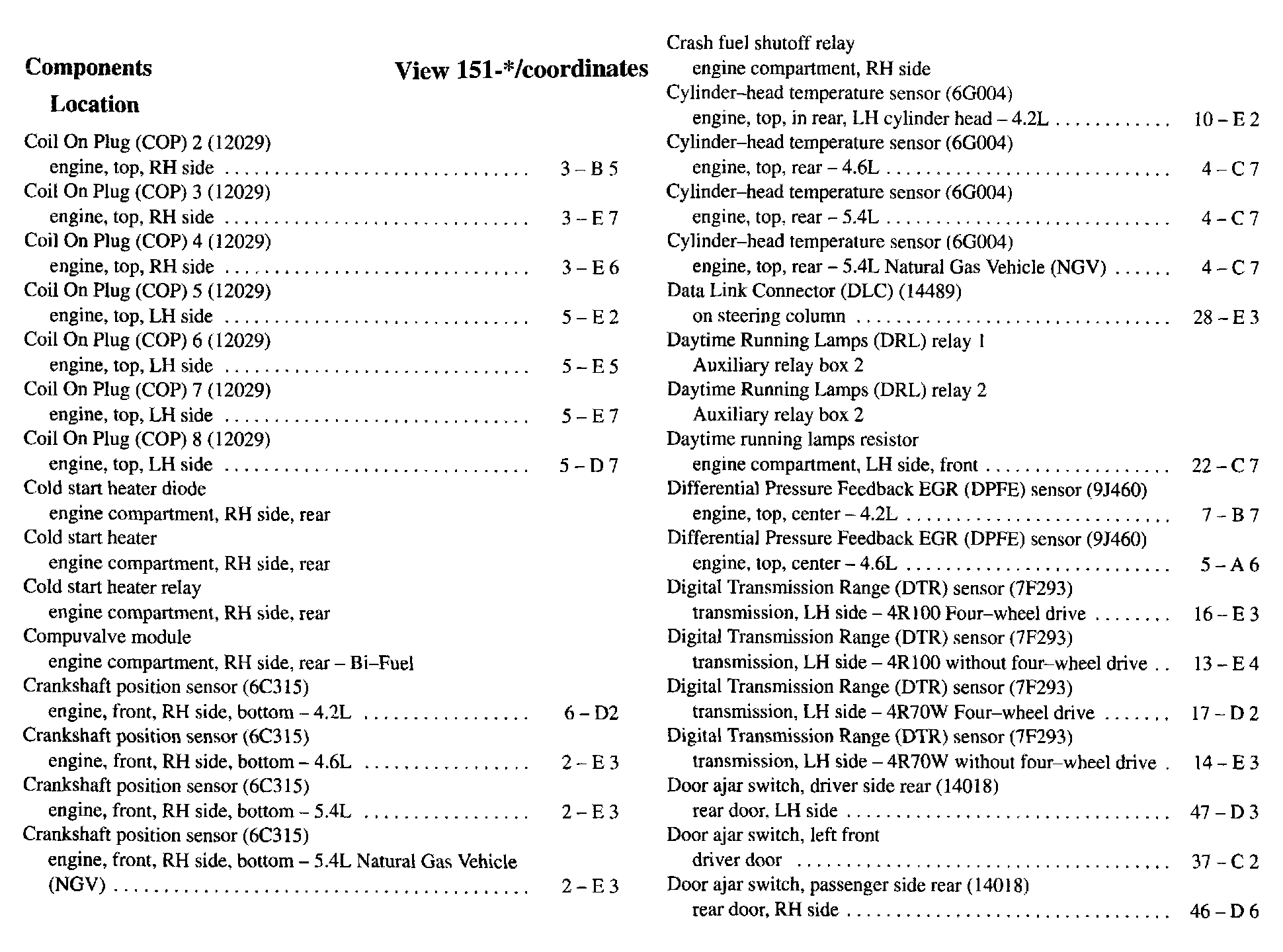

Co - Do:
Do - F1.101:

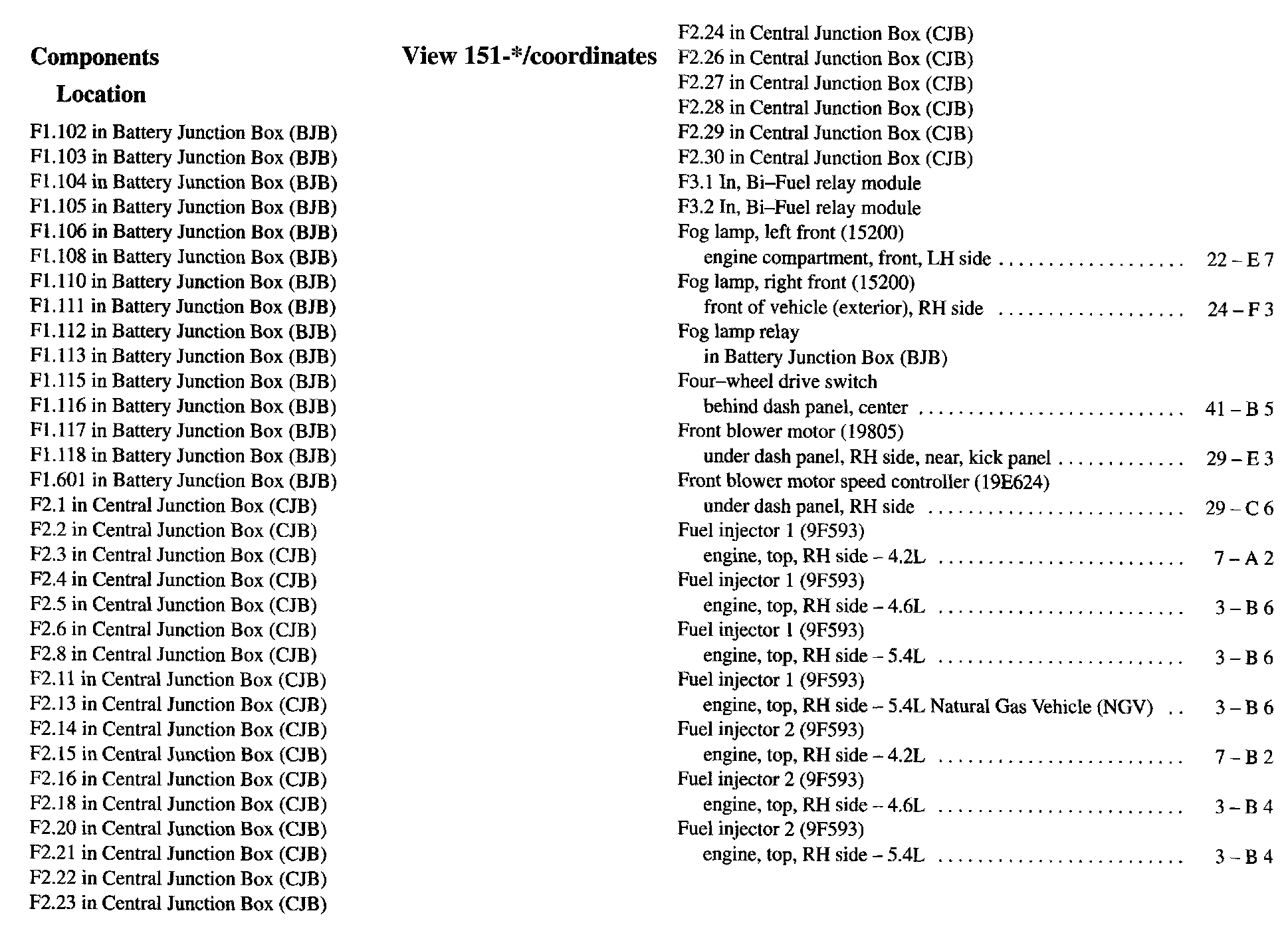

F1.102 - Fu:
Fu - Fu:

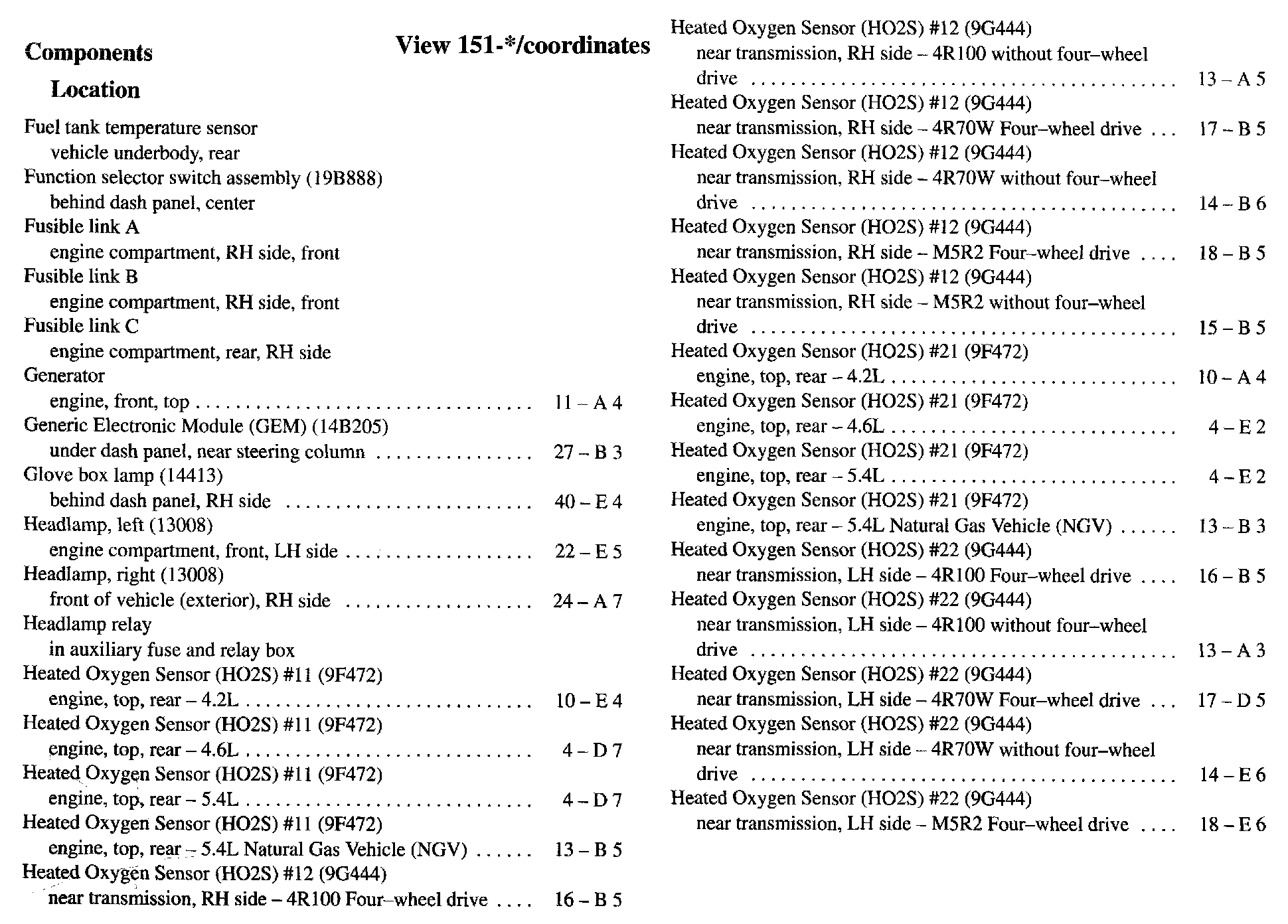

Fu - He:
He - In:

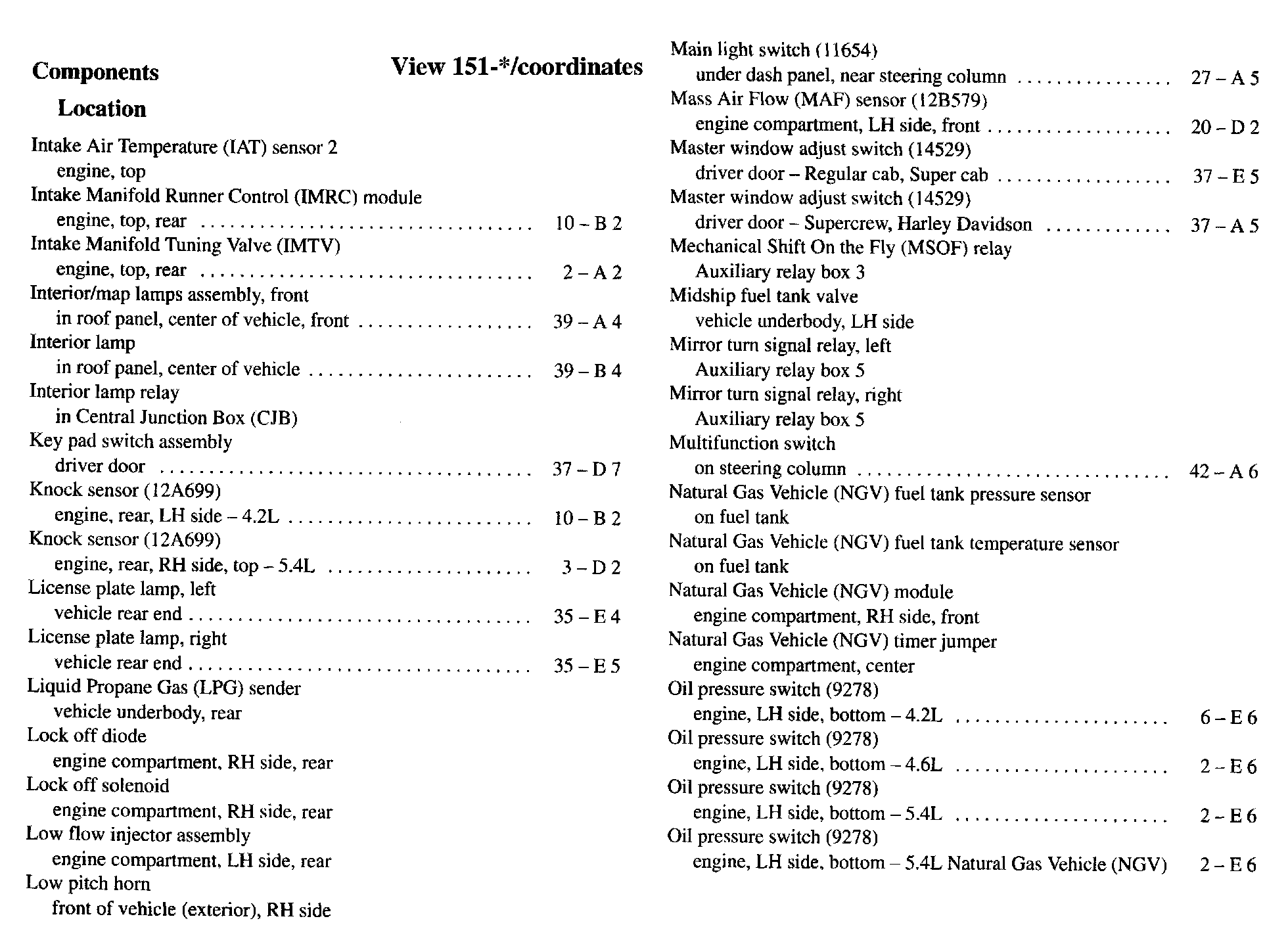

In - Oi:

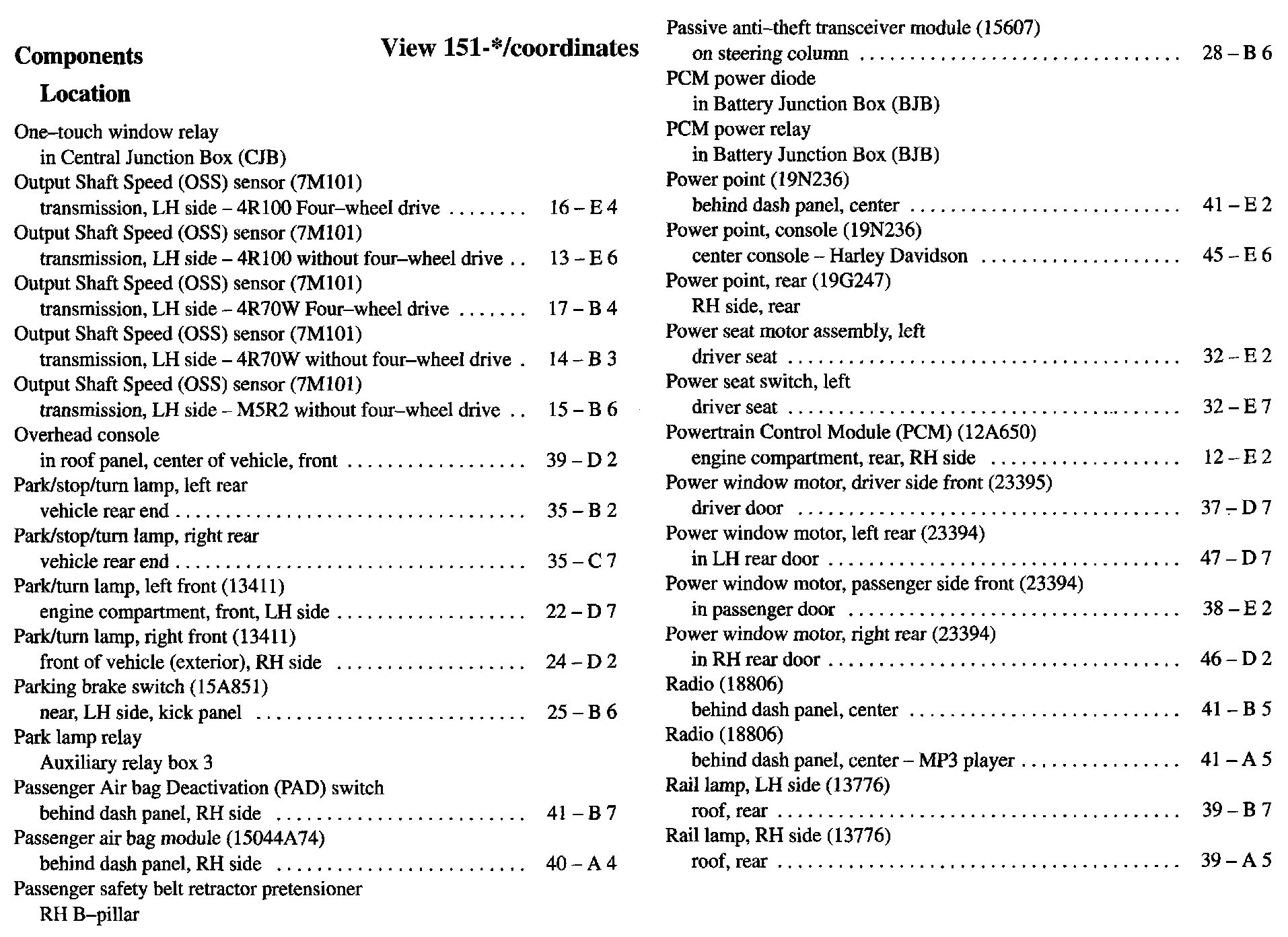

On - Ra:

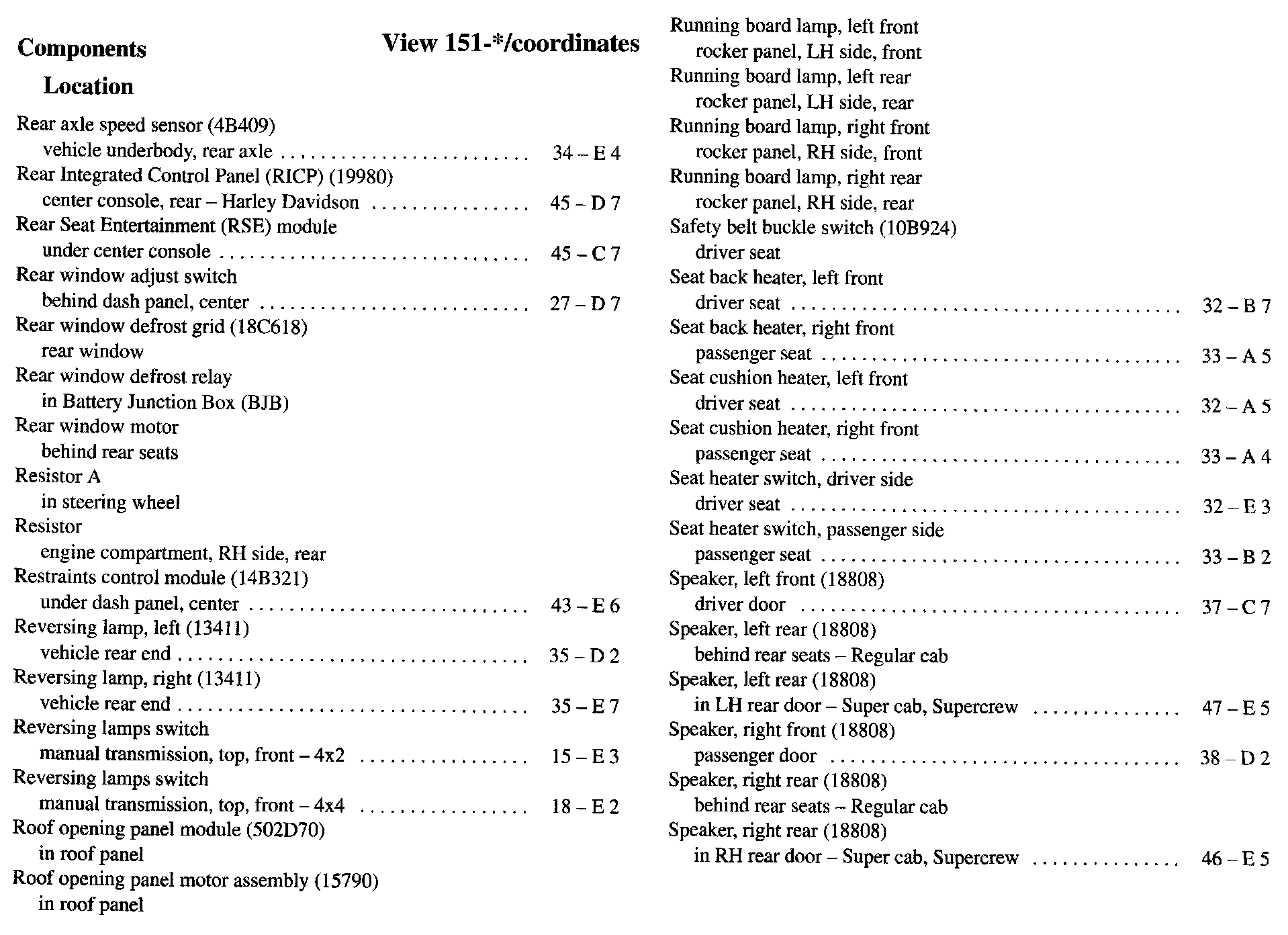

Re - Sp:

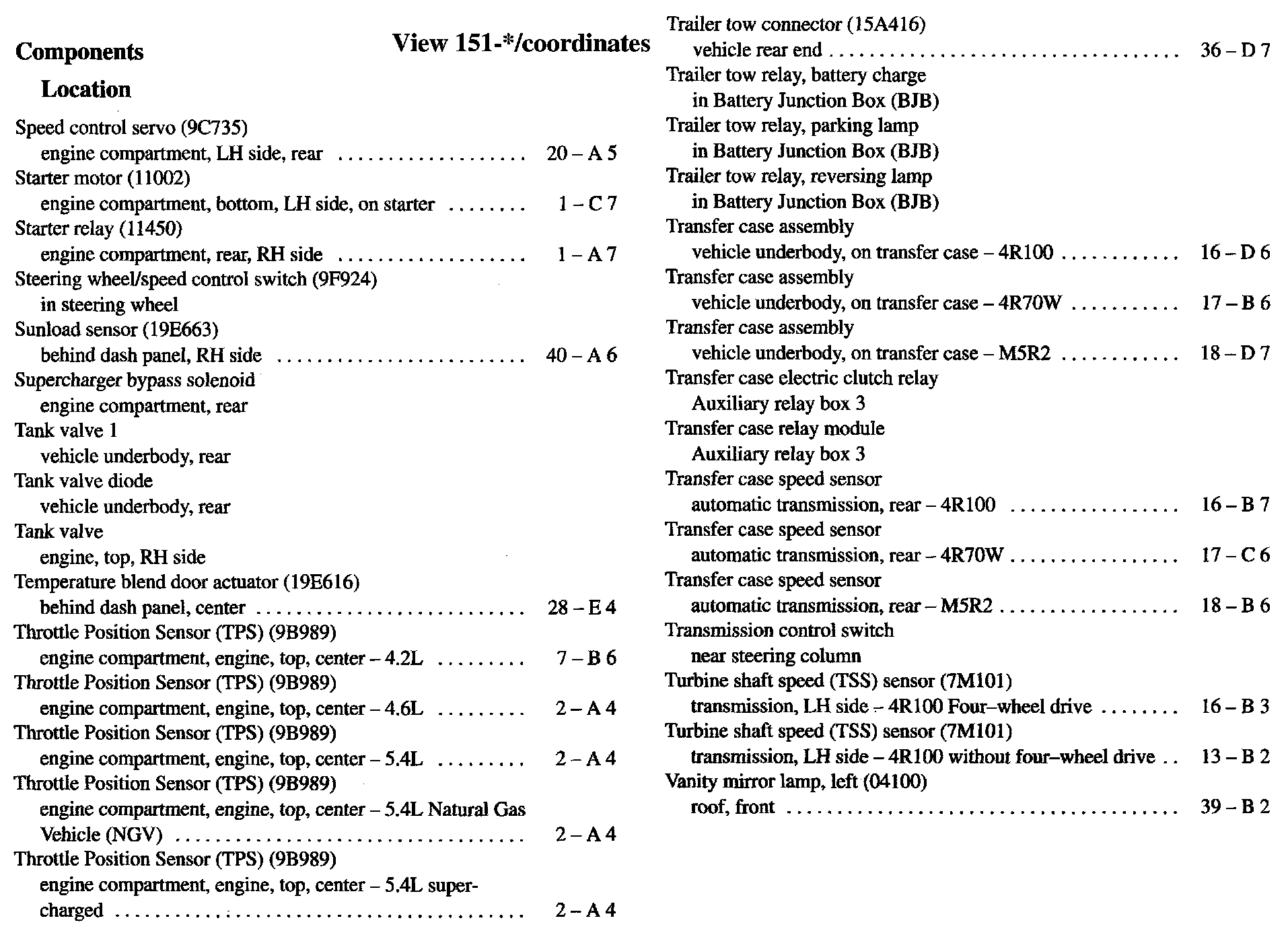

Sp - Va:
Va - Wi:
