Ford 8.8 Inch Front Axle

General Specifications

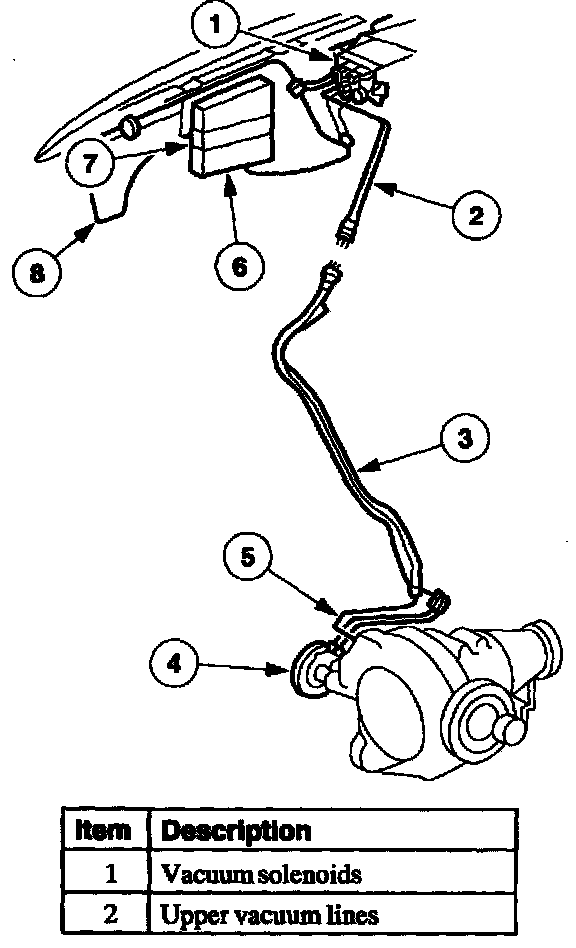

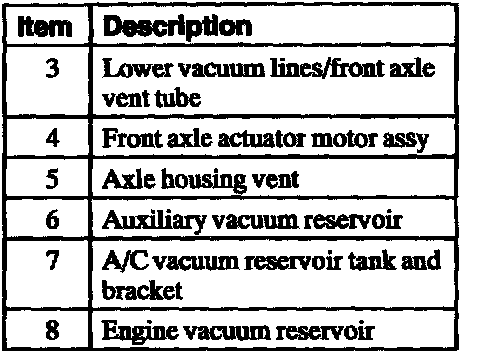

Front Drive Axle, Vacuum Components





Front Axle Assembly-Exploded View

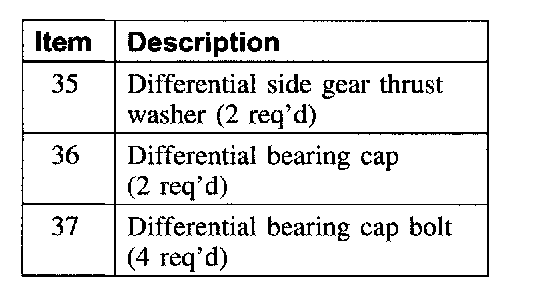

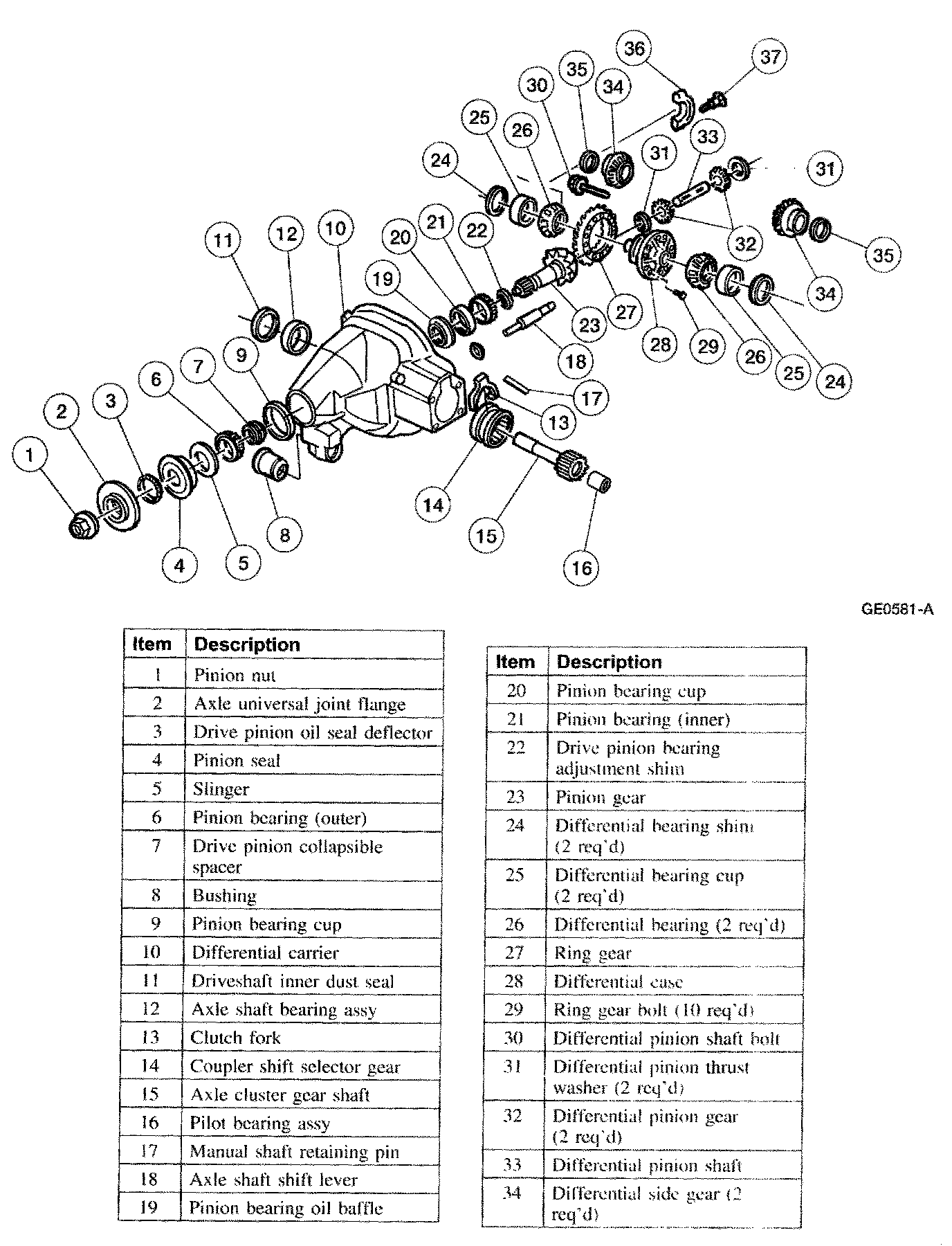

Front Differential-Exploded View
