Differential Assembly
>>
Ford 9.75 Inch Rear Axle
Ford 9.75 Inch Rear Axle

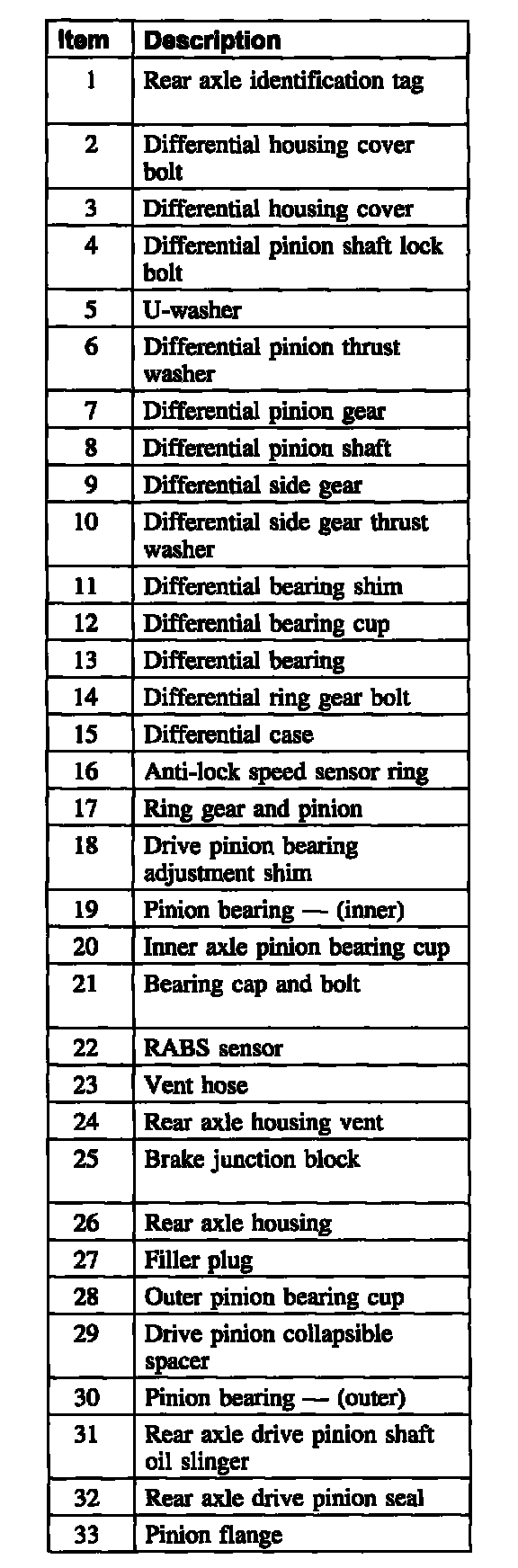

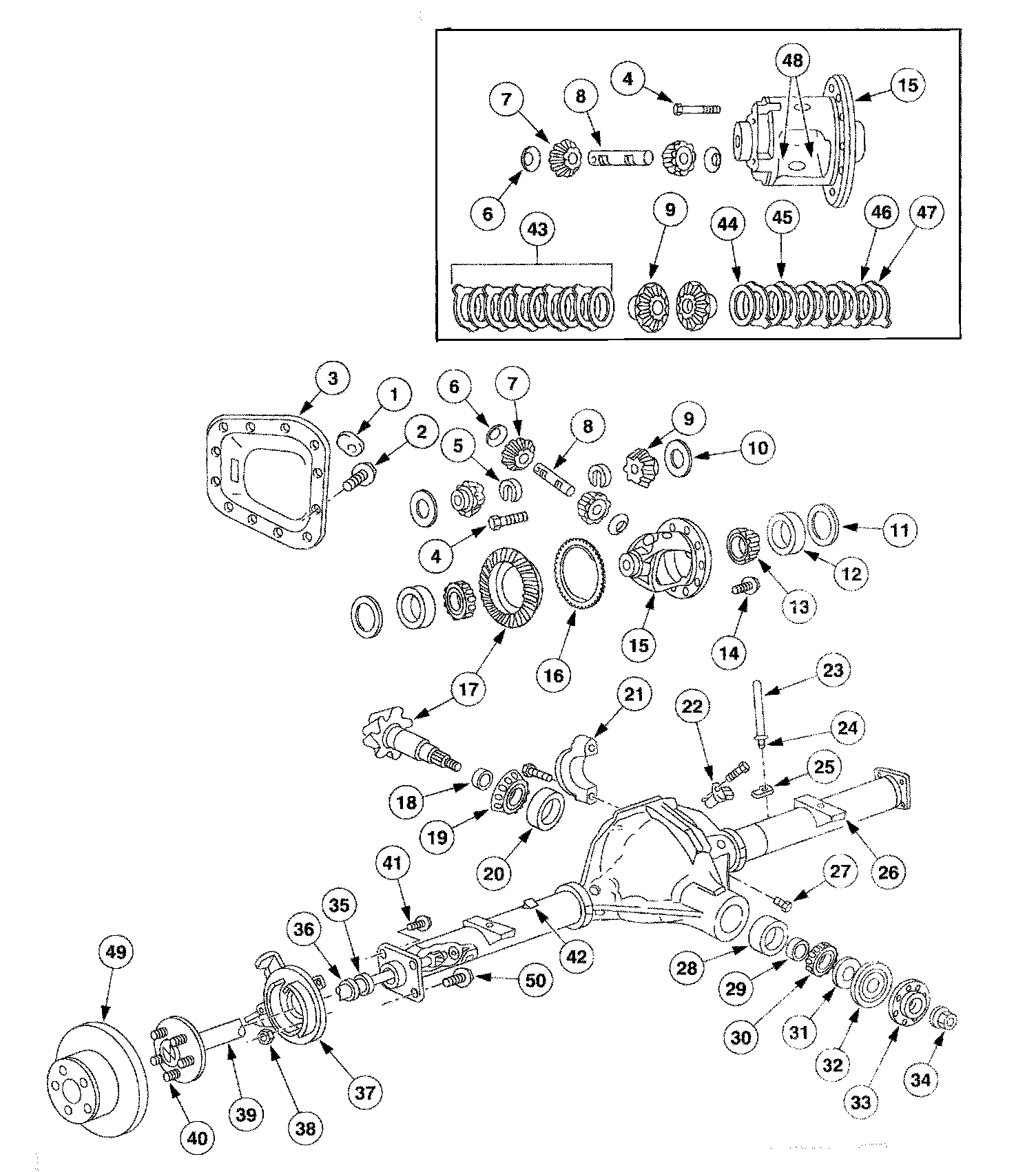

Rear Axle 9.75-Inch Ring Gear
Part 1 Of 3:
Part 2 Of 3:
Part 3 Of 3:
