PINPOINT TEST F: THE NATURAL GAS VEHICLE MODULE (NGVM) (IF EQUIPPED) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

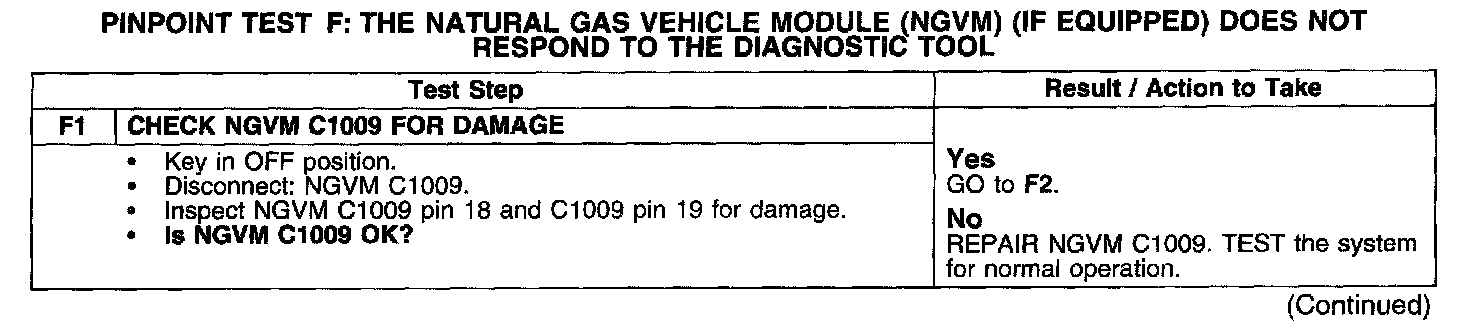

Test F1:

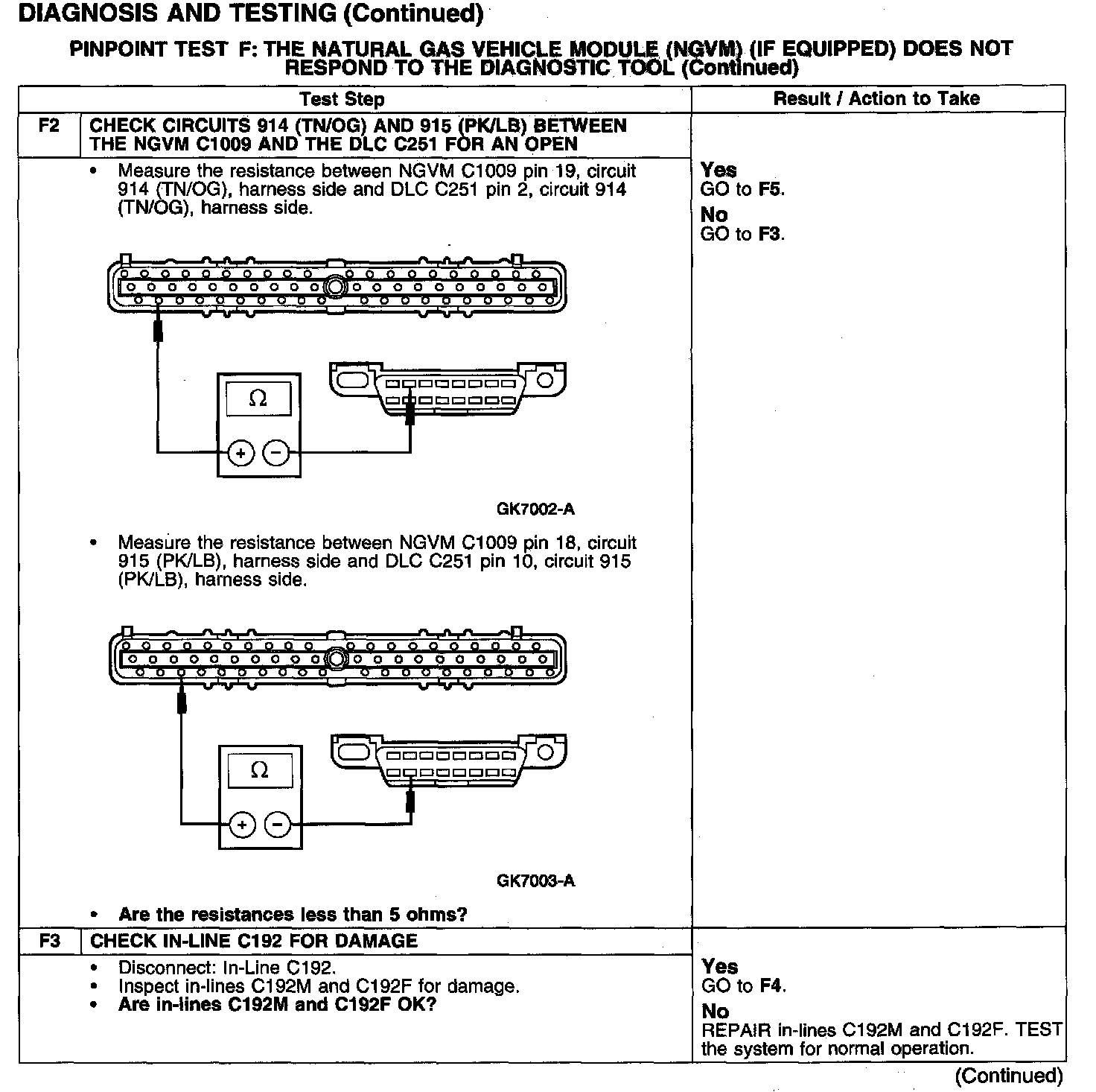

Test F2-F3:

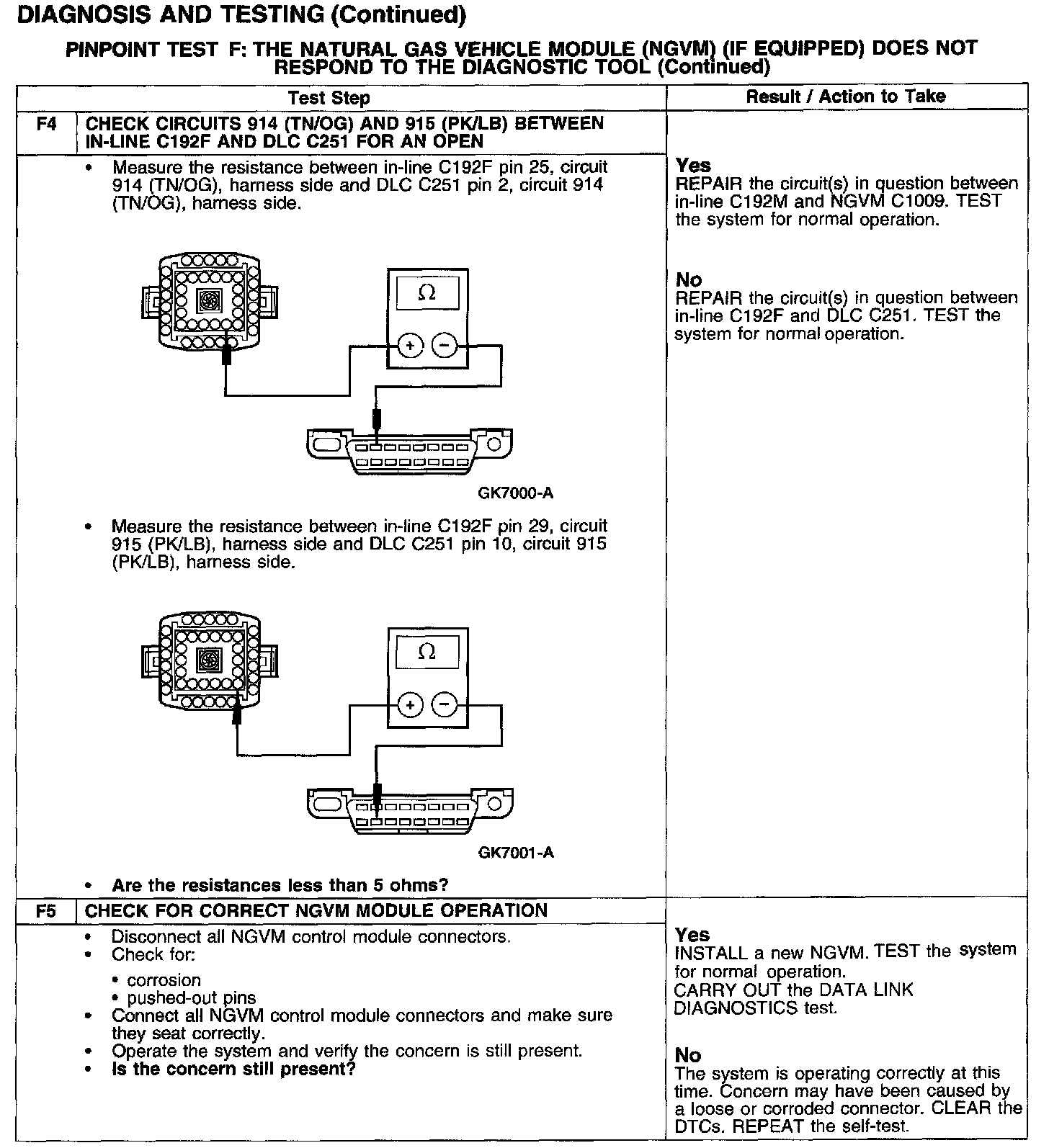

Test F4-F5:
