Test H

PINPOINT TEST H: NO INTERNATIONAL STANDARDS ORGANIZATION (ISO 9141) COMMUNICATION NETWORK COMMUNICATION

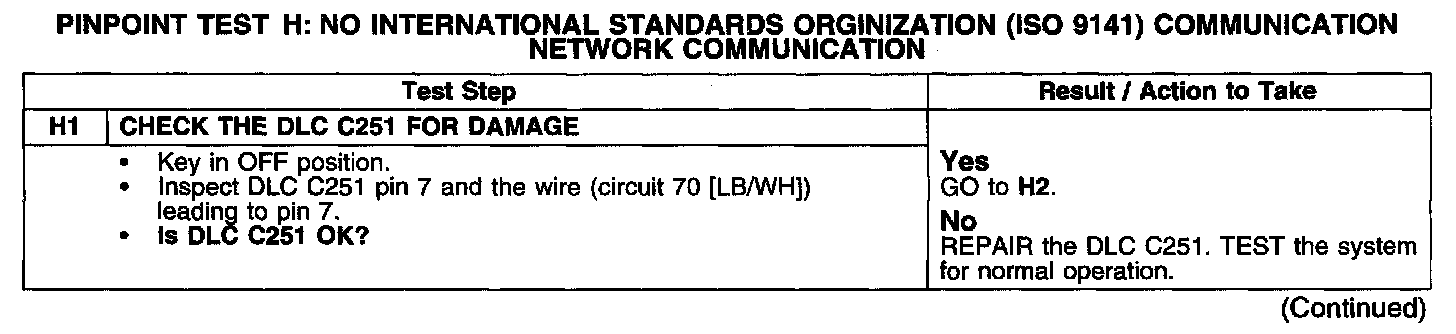

Test H1:

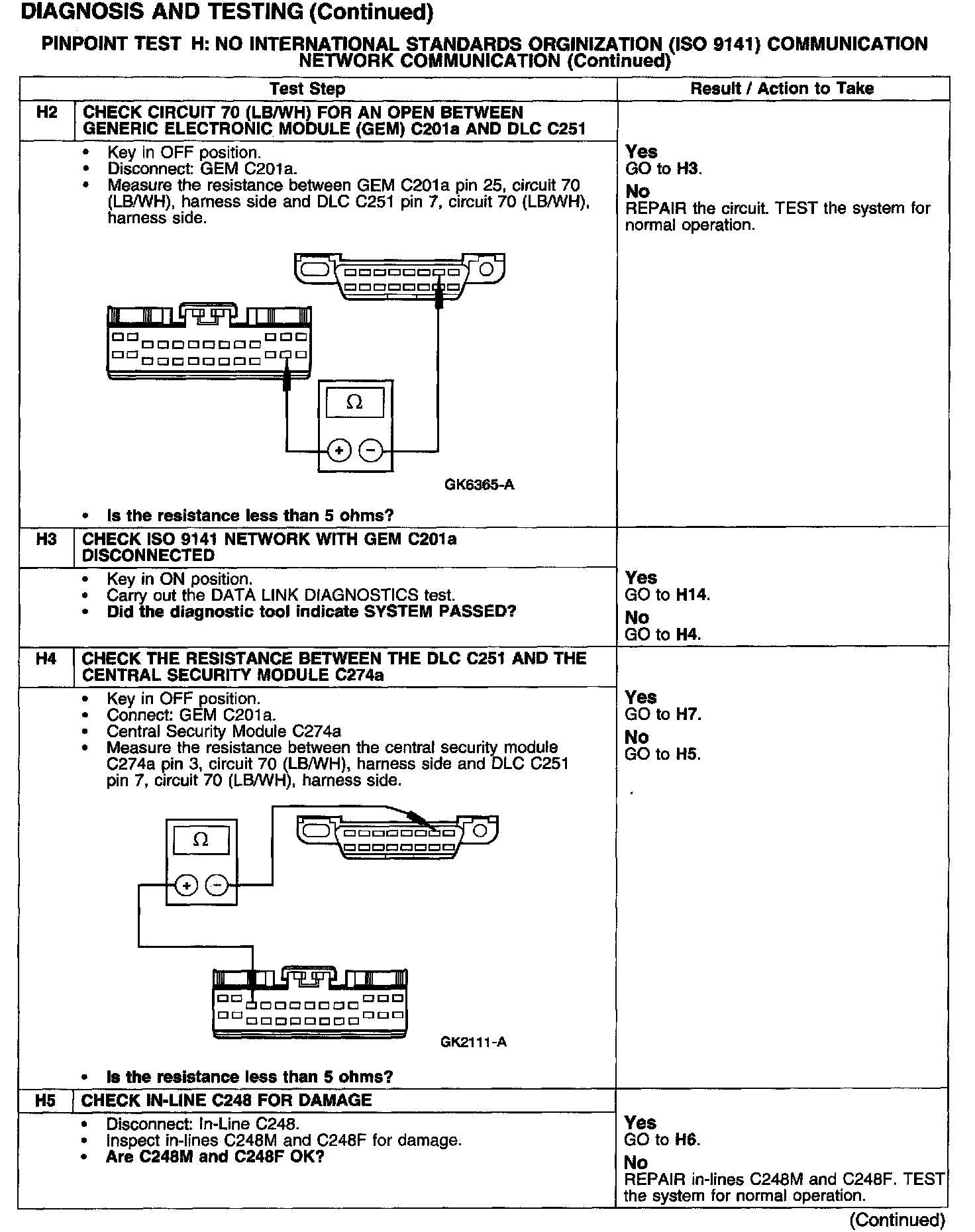

Test H2-H5:






Test H6-H9:

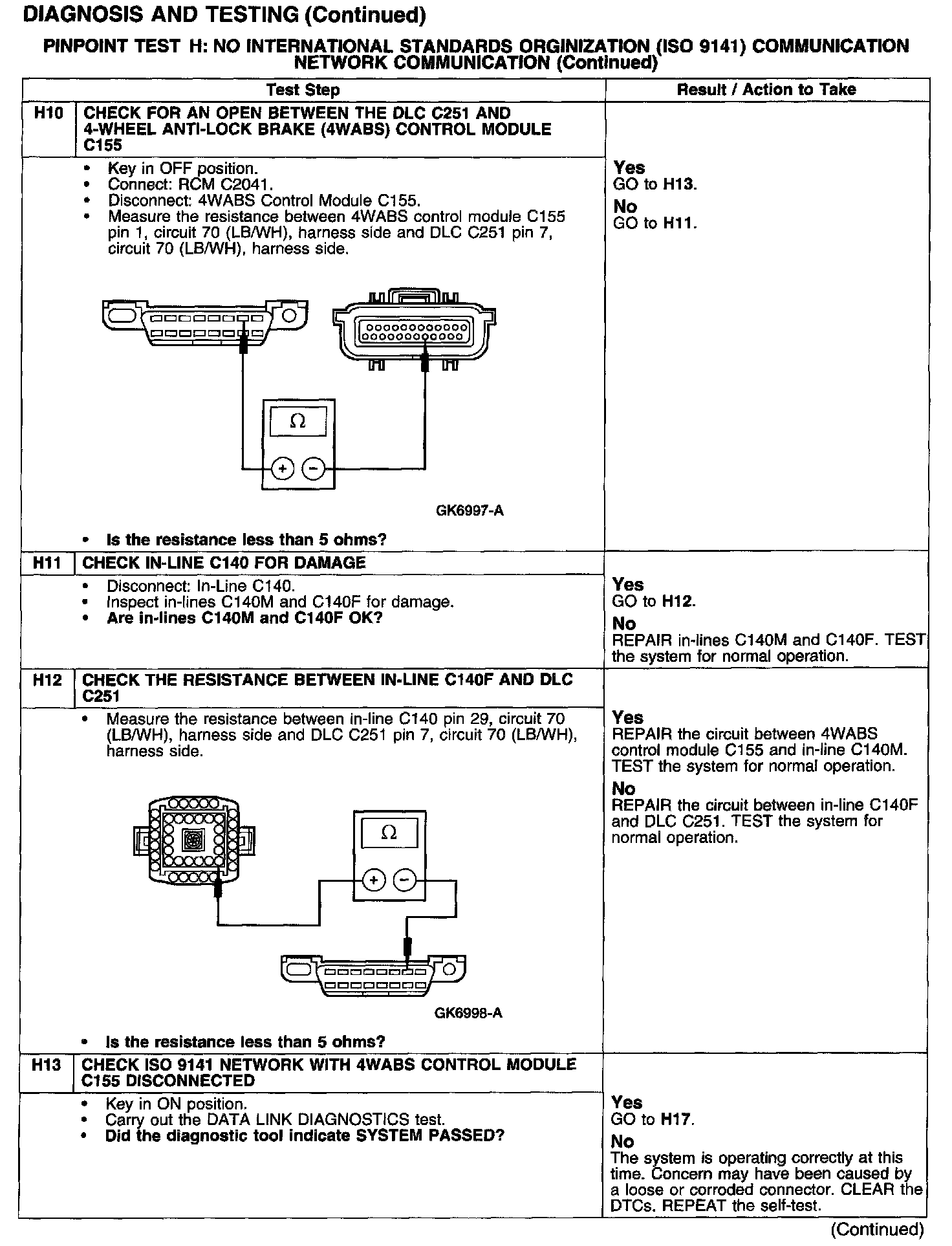

Test H10-H13:

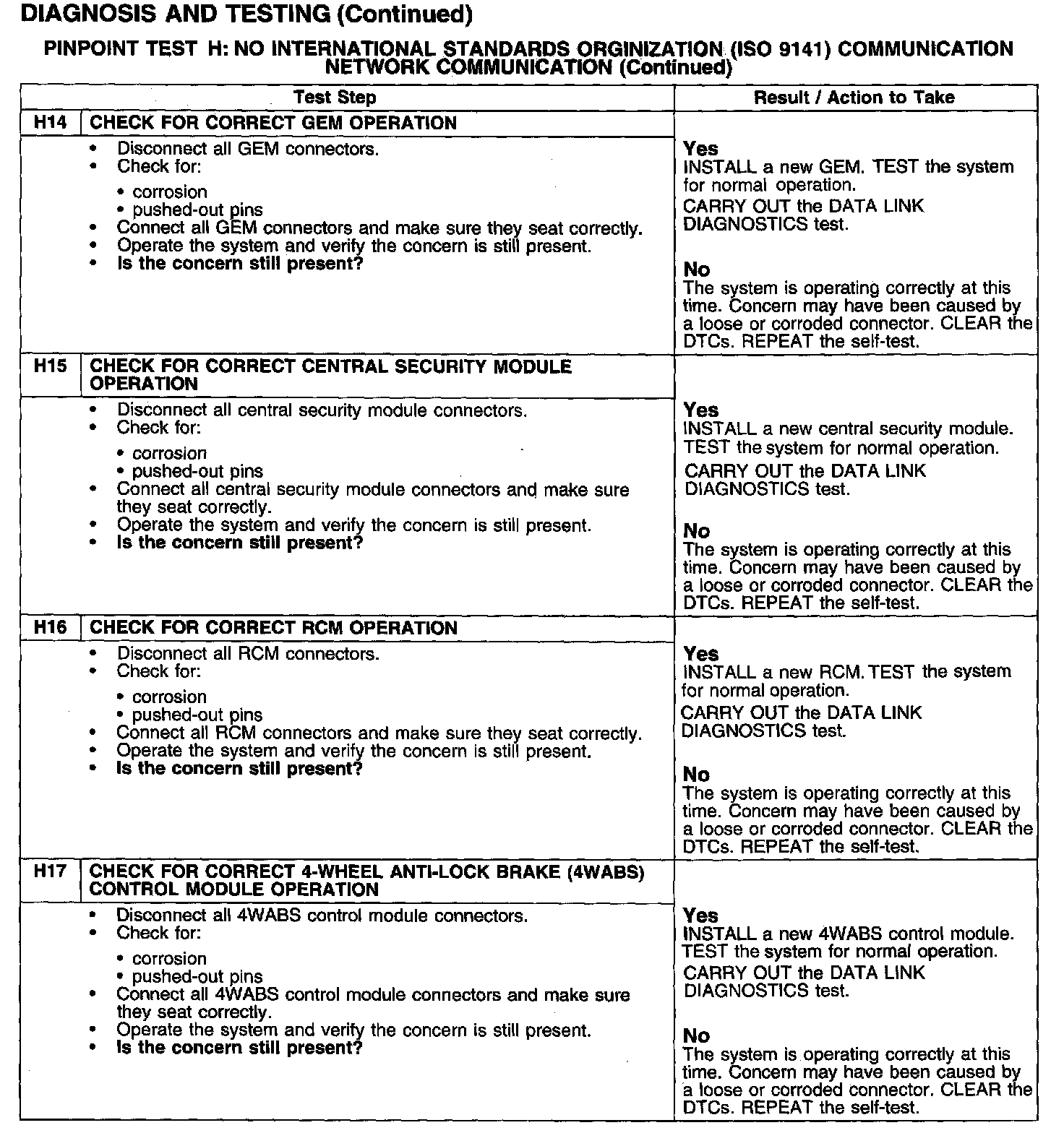

Test H14-H17:
