Test J
PINPOINT TEST J: NO MODULE/NETWORK COMMUNICATION - NO POWER TO THE DIAGNOSTIC TOOL

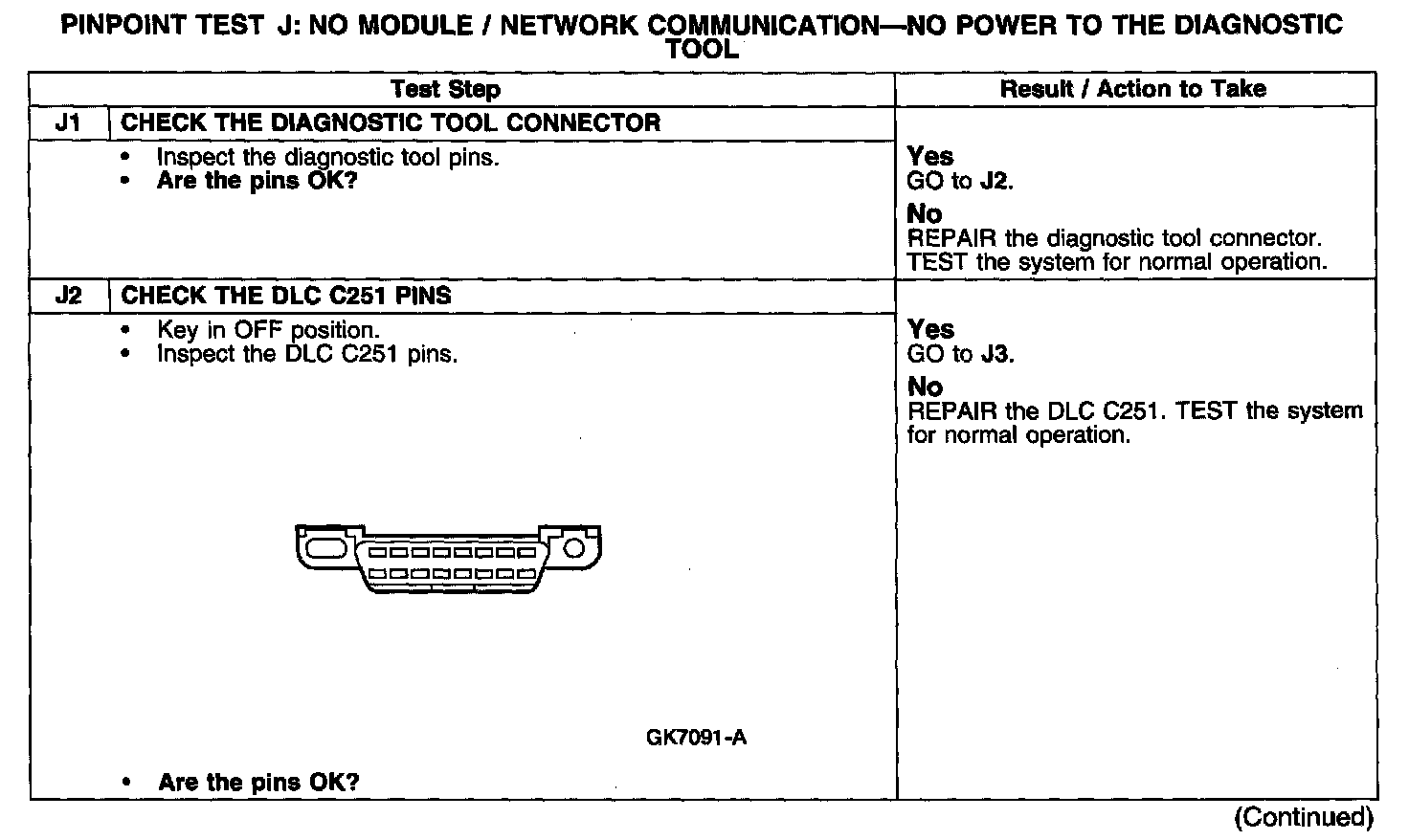

Test J1-J2:

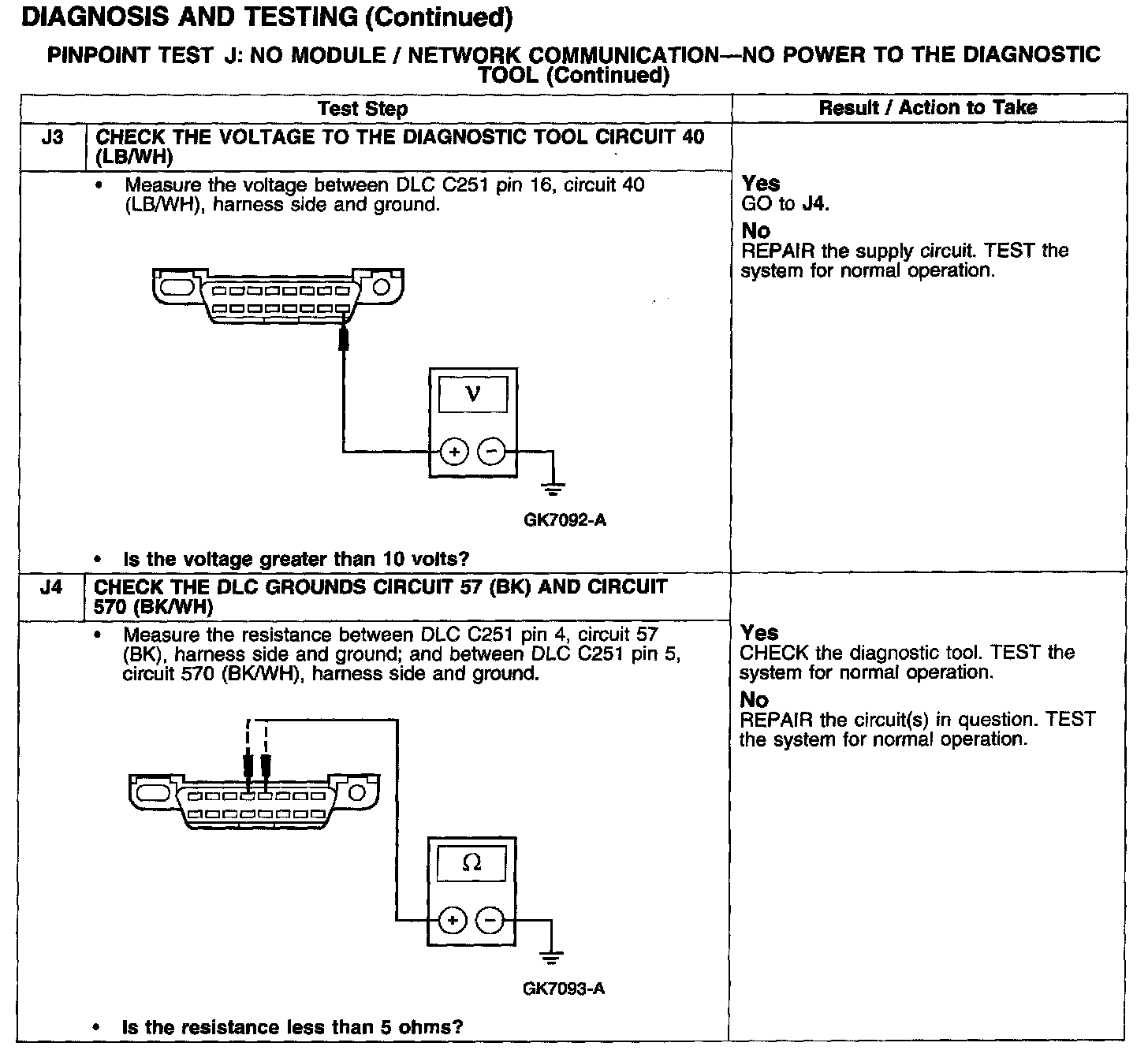

Test J3-J4:
