Ignition Cable: Service and Repair

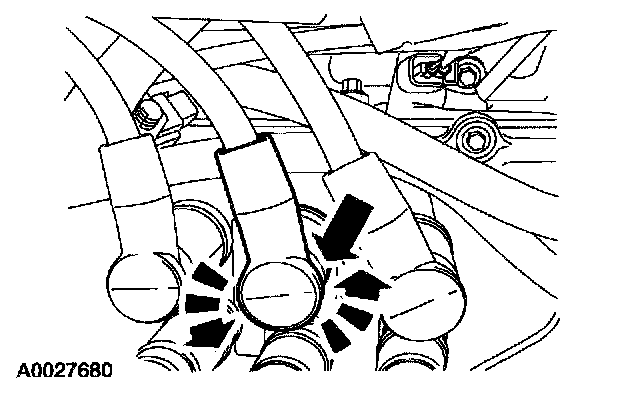

"AllData Editors Note:

Customers have reported success using the following spark plug wire placement on the coil pack."

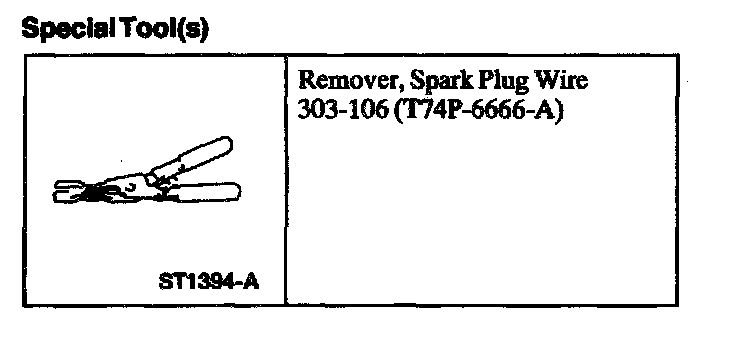

Remover, Spark Plug Wire:

SPECIAL TOOL(S)

REMOVAL

CAUTION: Spark plug wires must be connected in the correct firing order.







1. Using the special tool, with a twisting motion, pull the spark plug wire off the spark plug.

CAUTION: It is important to twist the spark plug boots while pulling upward to avoid possible damage to the spark plug wires.







2. Disconnect the spark plug wire from the ignition coil by twisting while pulling upward.
3. Disconnect spark plug wire routing clips.

INSTALLATION
1. To install, reverse the removal procedure.

CAUTION: Be sure to orient the spark plug boots so the spark plug wires do not contact the exhaust manifold.

NOTE: Apply silicone grease to the inside of the spark plug and ignition coil boots of the spark plug wire.
