Spark Plug: Service and Repair

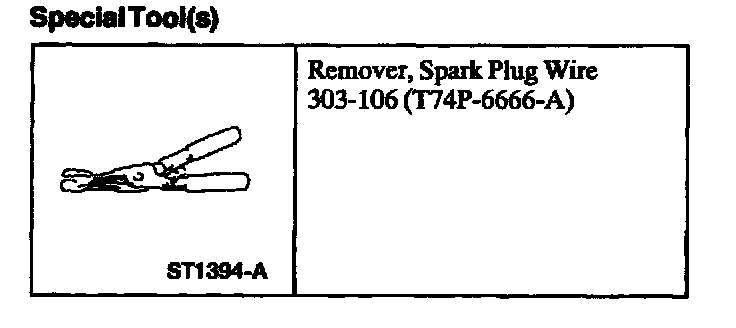

Remover, Spark Plug Wire:

SPECIAL TOOL(S)

REMOVAL

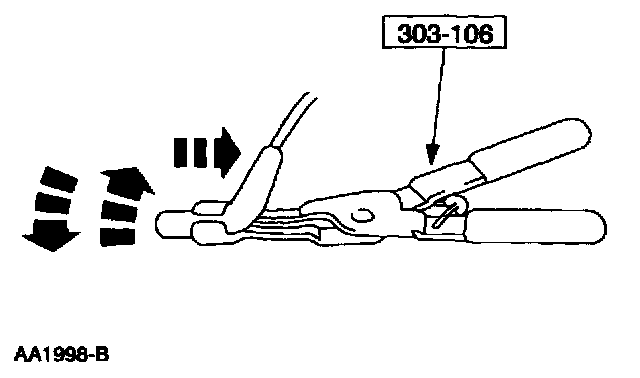

1. Using the special tool, with a twisting motion pull the spark plug wire off the spark plug.

CAUTION:
^ Spark plug wires must be connected correctly.
^ It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.

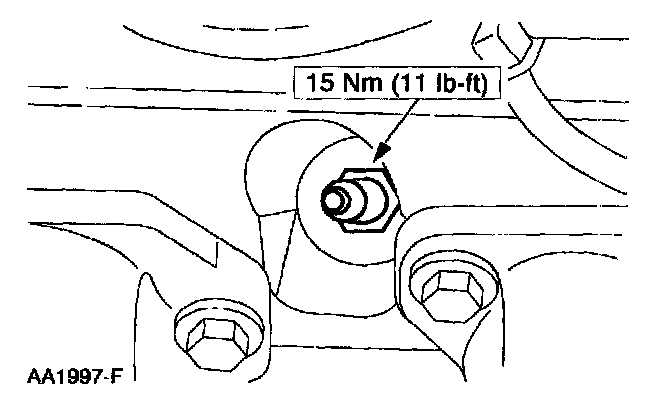

2. Remove the spark plug.

NOTE:
^ Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.
^ If an original spark plug is reused, make sure it is installed in the same cylinder from which it was taken. New spark plugs can be used in any cylinder.

3. Inspect the spark plug firing tip.







4. Adjust the spark plug gap as necessary.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Apply silicone grease to the inside of the spark plug wire.
