Alternator: Service and Repair

REMOVAL AND INSTALLATION

1. Disconnect the battery ground cable.
2. Remove the drive belt.







3. Disconnect the generator electrical connectors.

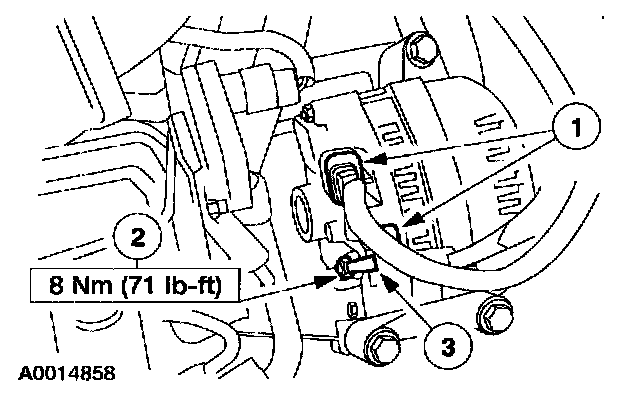

1 Disconnect the generator stator and voltage regulator connectors.
2 Remove the generator B+ cable nut.
3 Disconnect the generator B+ cable.







4. Remove the generator.
^ Remove the generator mounting bolts.
