Power Window Switch: Service and Repair

WINDOW CONTROL SWITCH

REMOVAL

NOTE: F150 shown, SuperCrew similar.

1. Disconnect the battery.

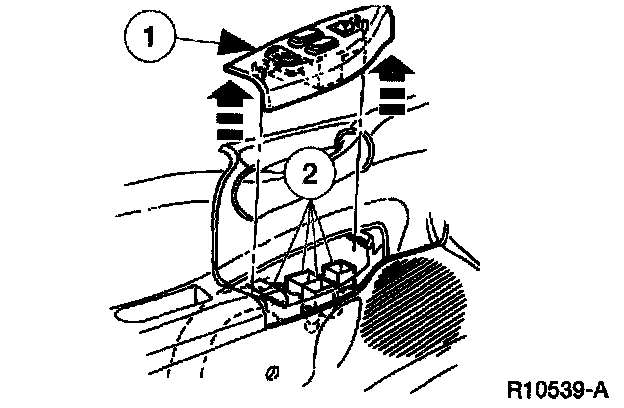

2. Remove the window control switch plate.
1 Release the window control switch plate.
2 Disconnect the electrical connectors.

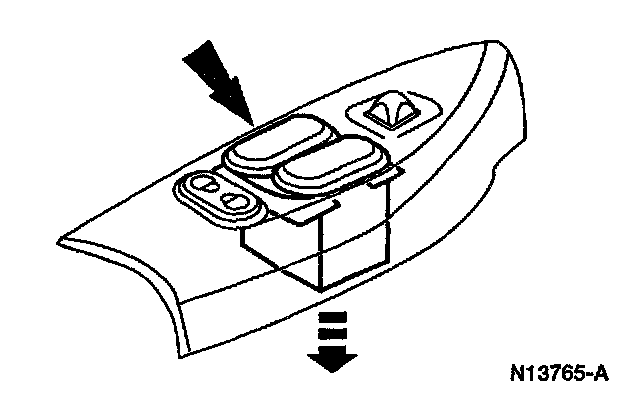

3. Remove the window control switch.

INSTALLATION
1. To install, reverse the removal procedure.
