Home >> Ford >> 2003 >> F 150 2WD Pickup V8-4.6L SOHC VIN 6 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> 4.6L Romeo Engine-Front End

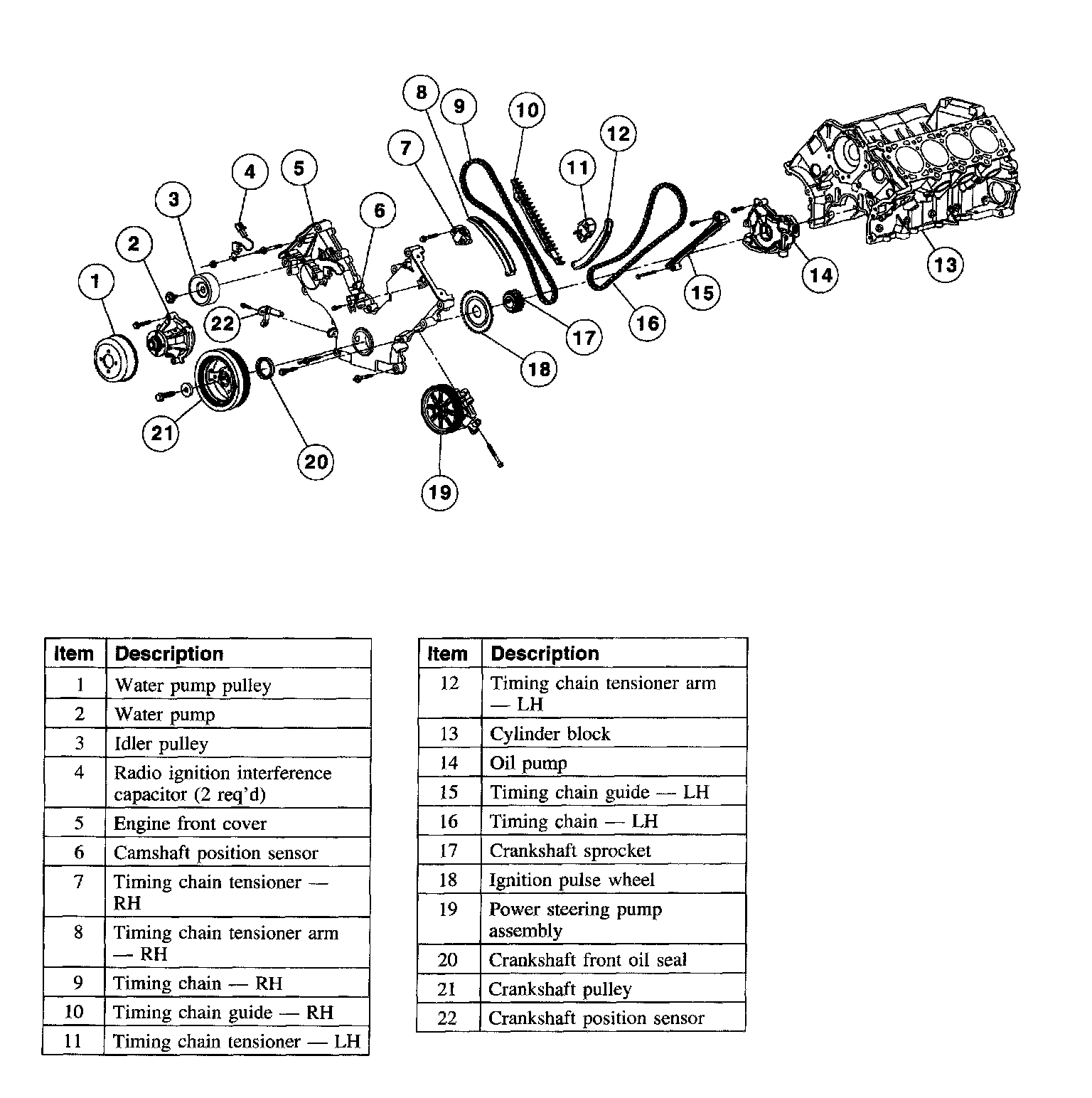

4.6L Romeo Engine-Front End

4.6L Romeo Engine-Front End
