Timing Cover

Romeo engine (4.6L)

Install the fasteners finger-tight.

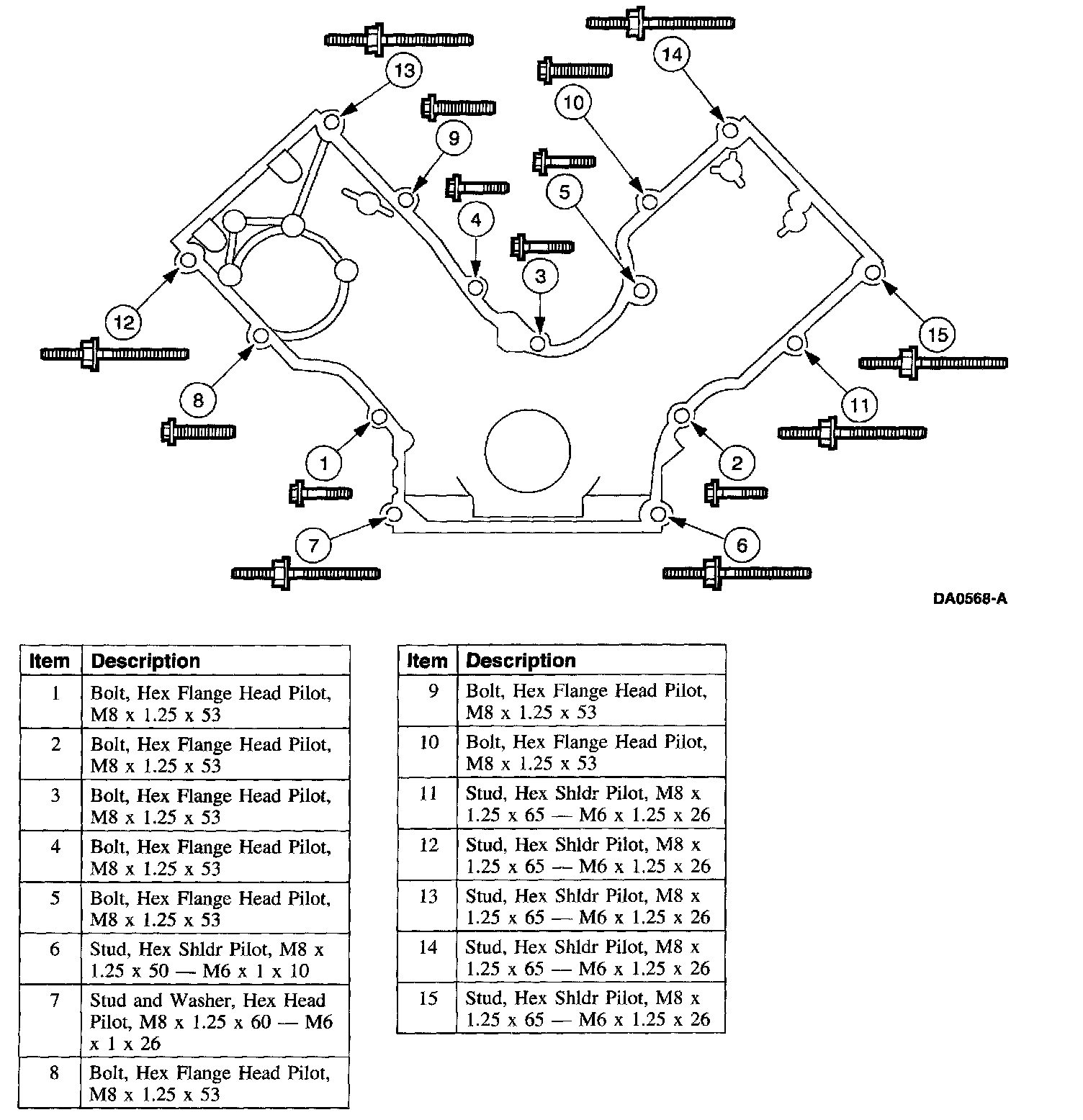

- Tighten the front cover fasteners in the sequence shown to 25 Nm (18 ft. lbs.).
