F 150 4WD Pickup V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>

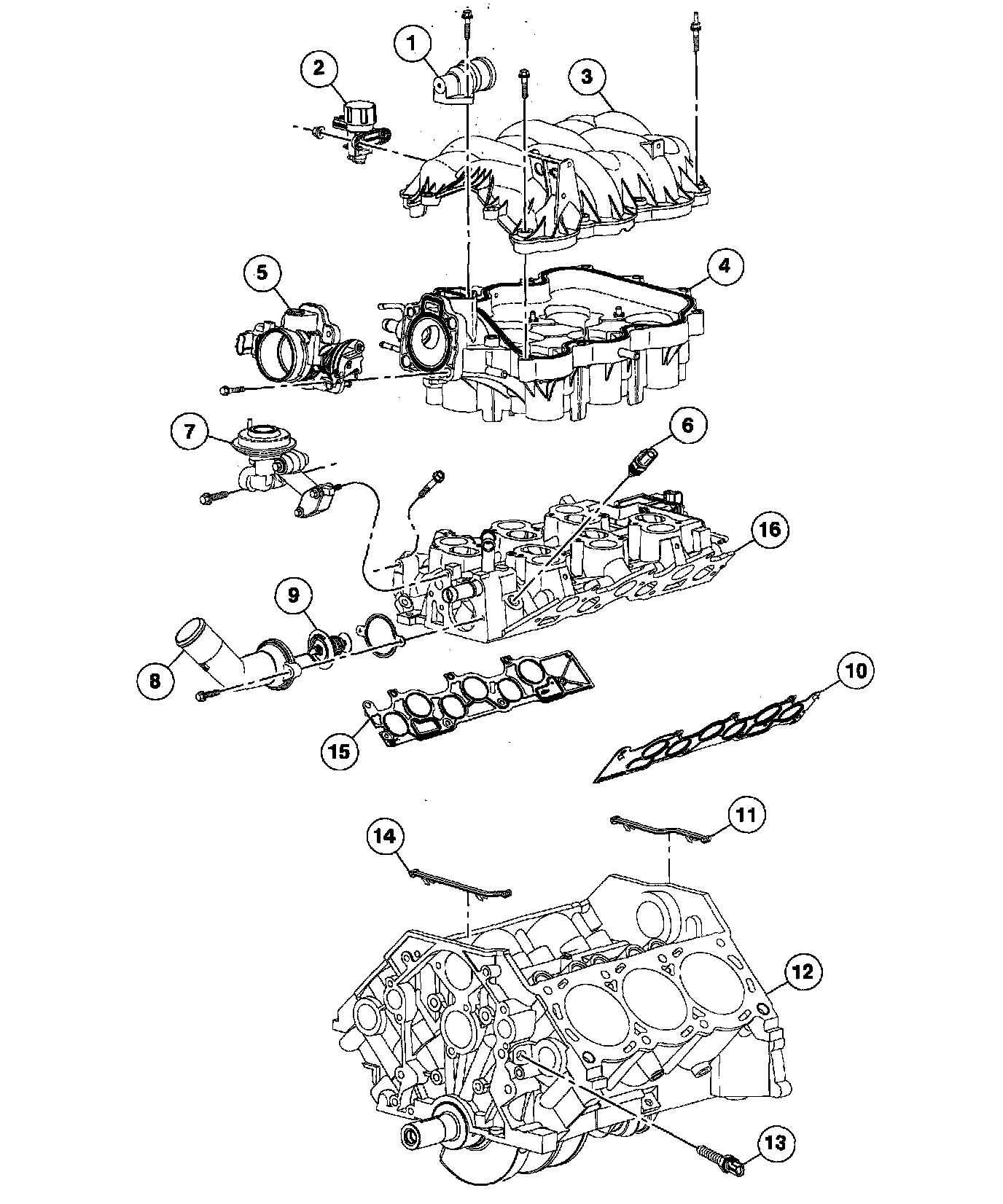

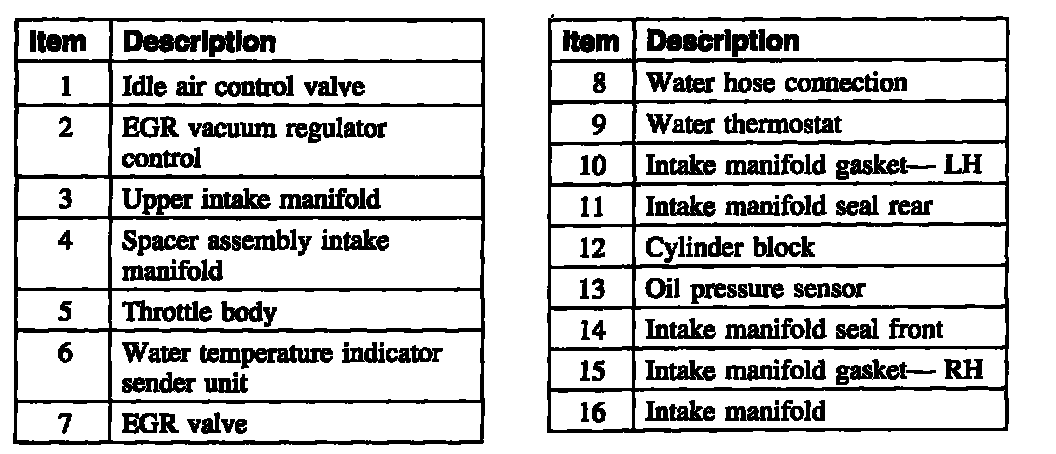

Major Upper Engine Components
Major Upper Engine Components
Major Upper Engine Components
Part 1 Of 2:
Part 2 Of 2:
