PINPOINT TEST E: THE POWERTRAIN CONTROL MODULE (PCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL
Test E1:

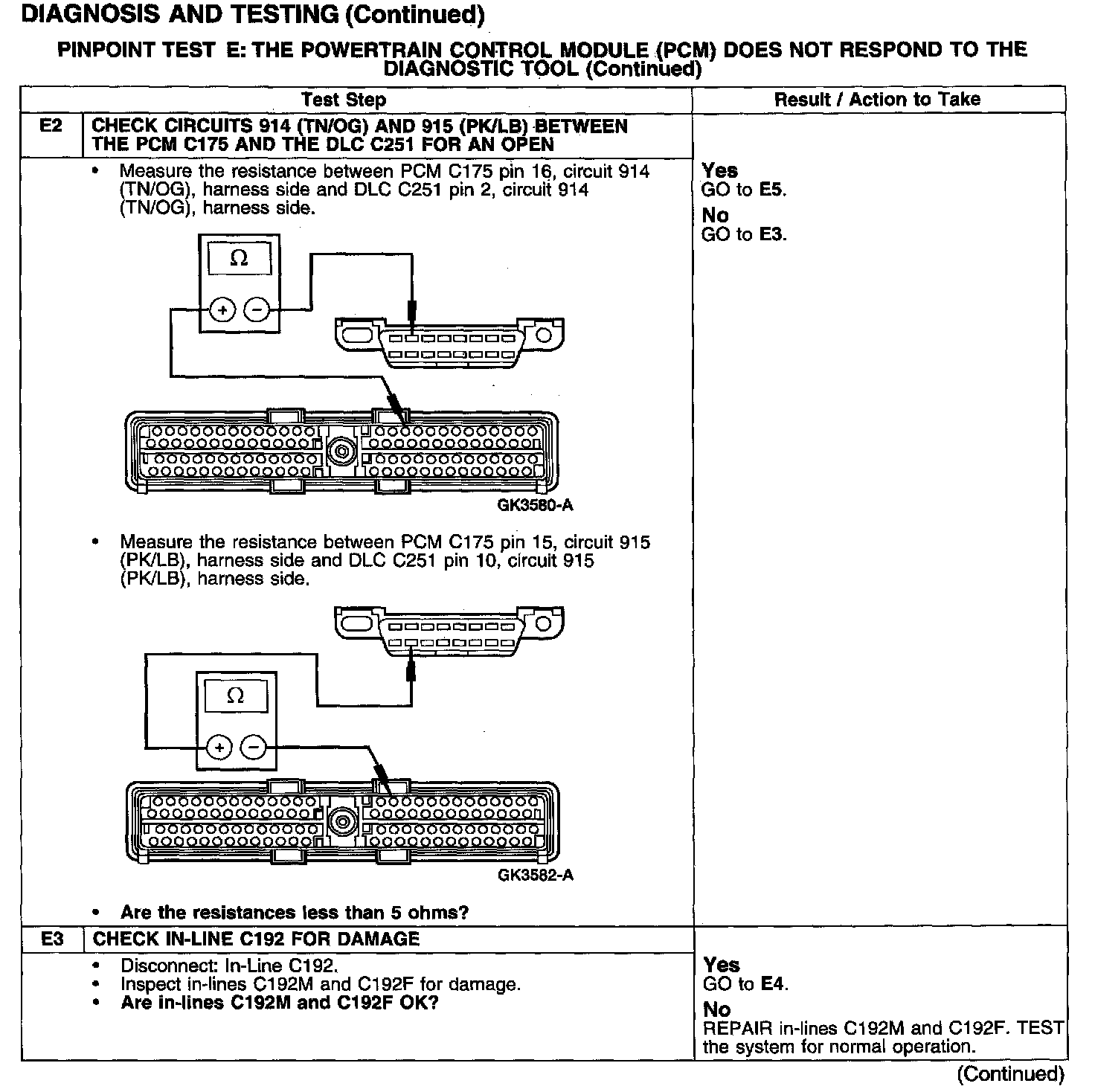

Test E2-E3:

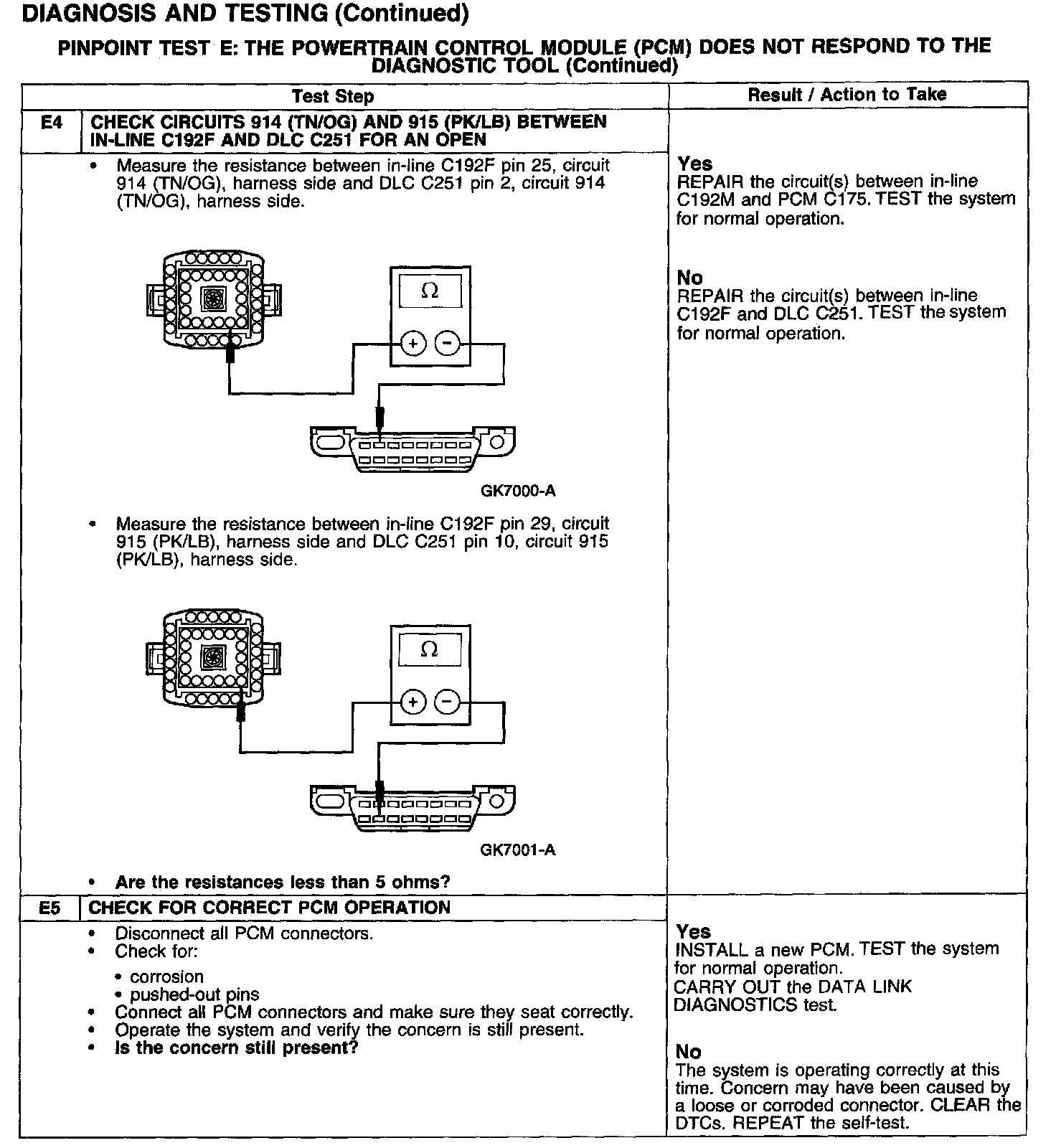

Test E4-E5:
