Test I

PINPOINT TEST I: NO STANDARD CORPORATE PROTOCOL (SCP) COMMUNICATION NETWORK COMMUNICATION

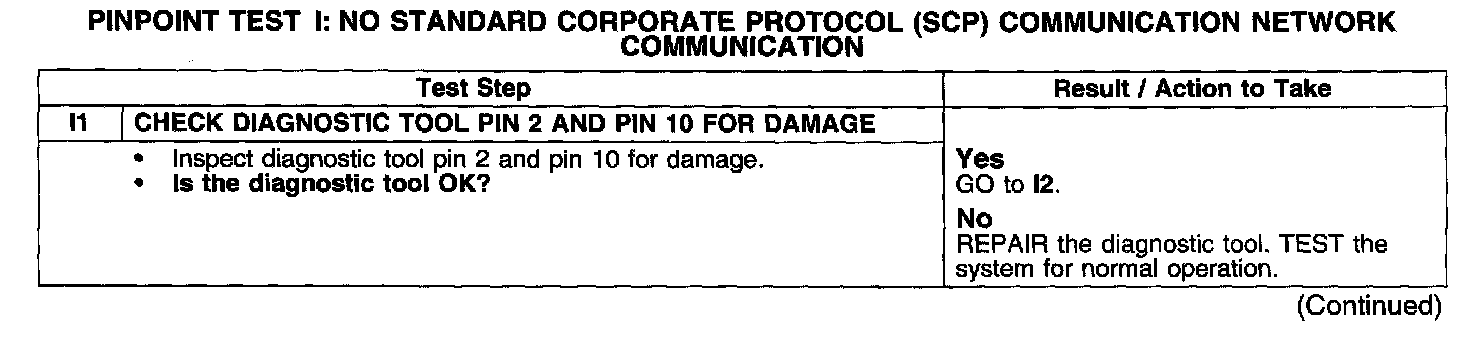

Test I1:

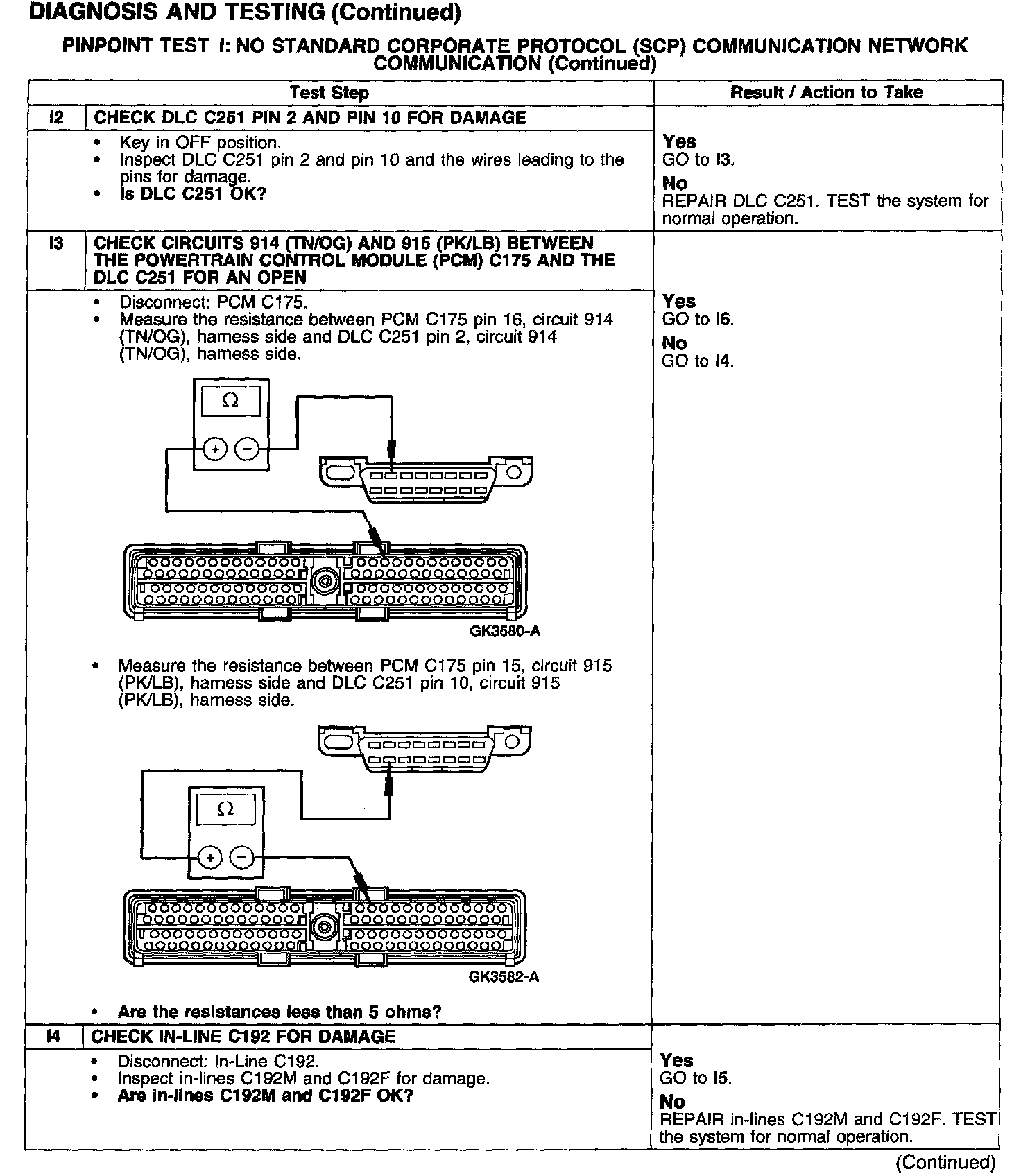

Test I2-I4:

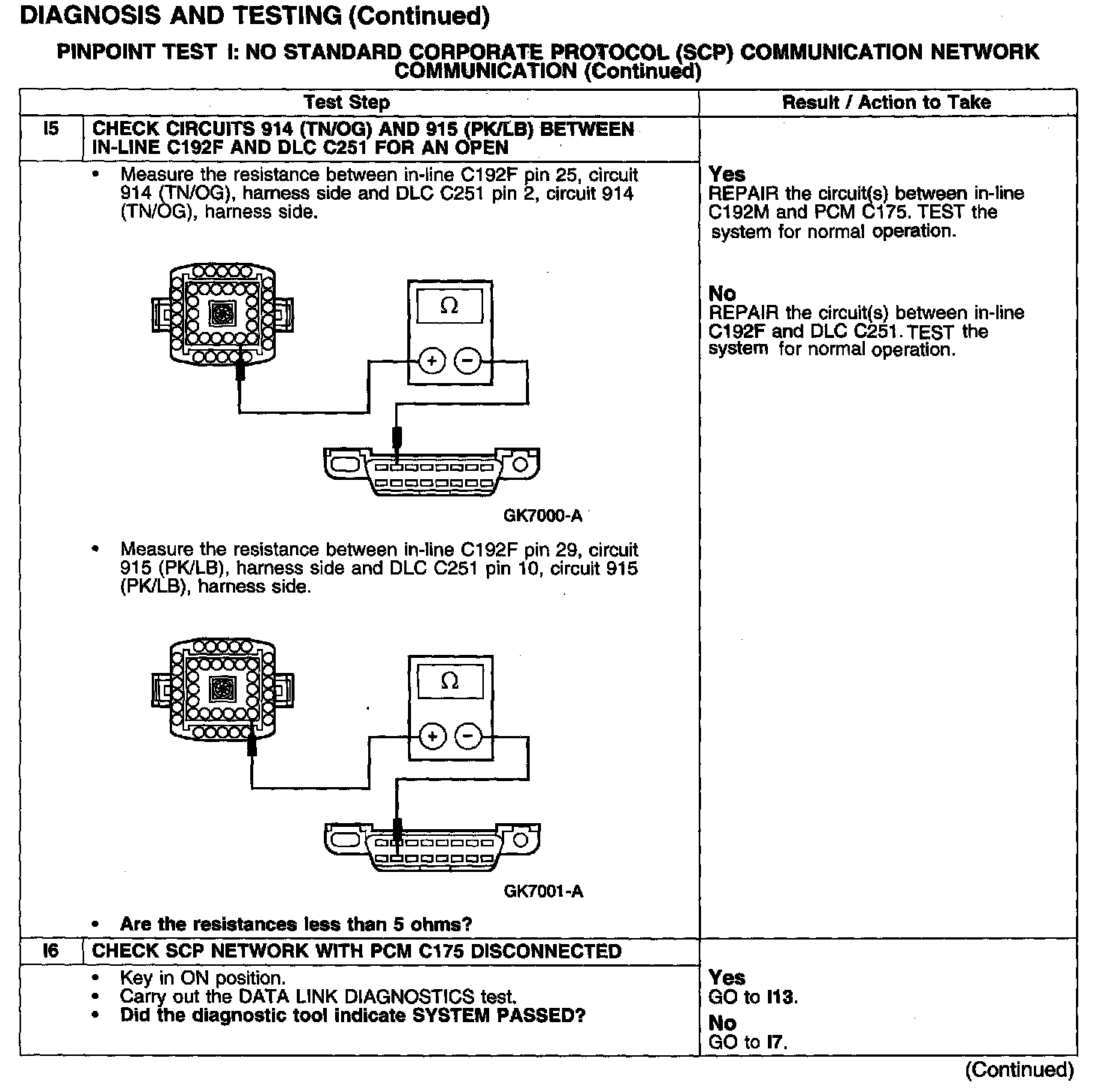

Test I5-I6:

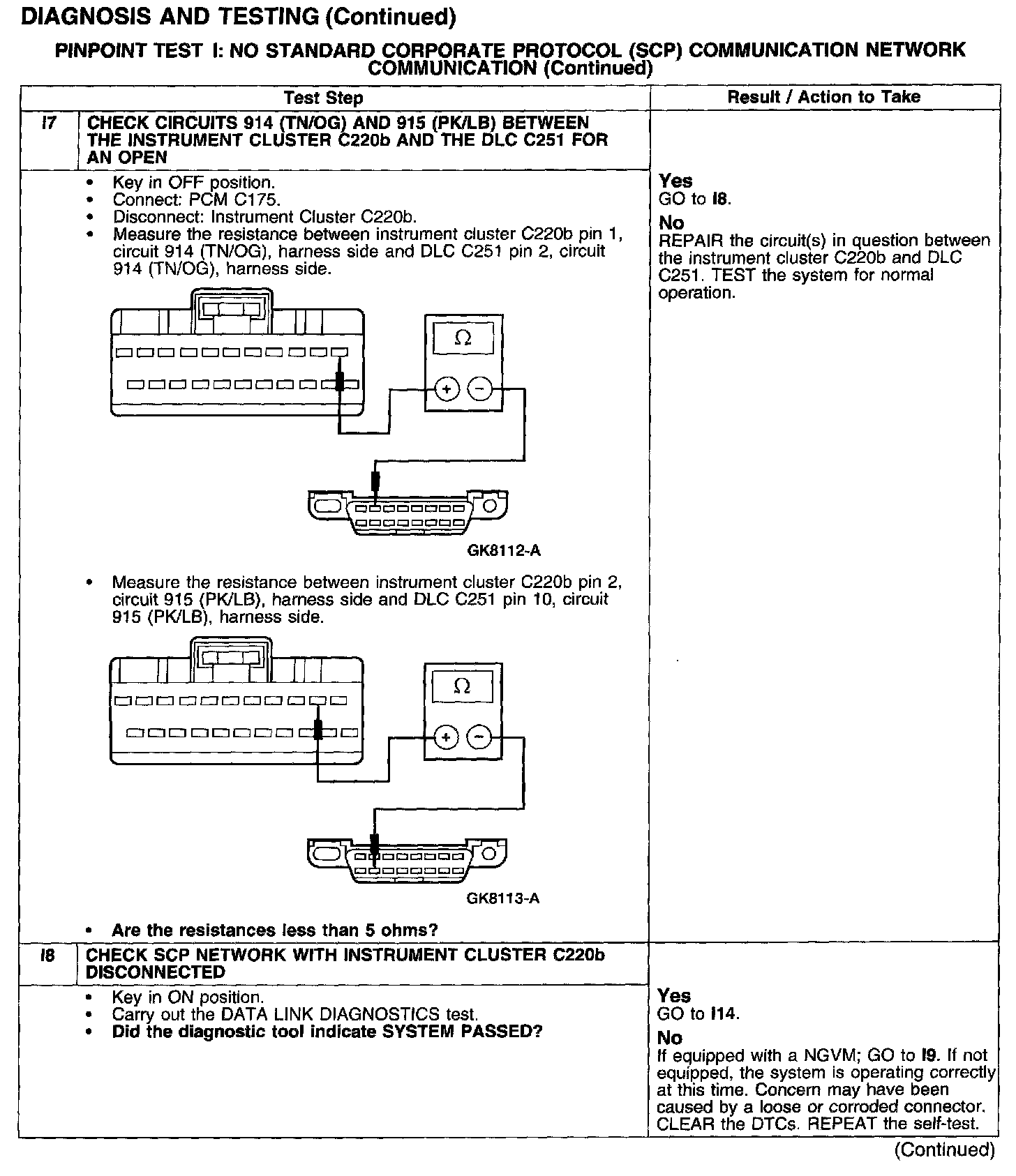

Test I7-I8:

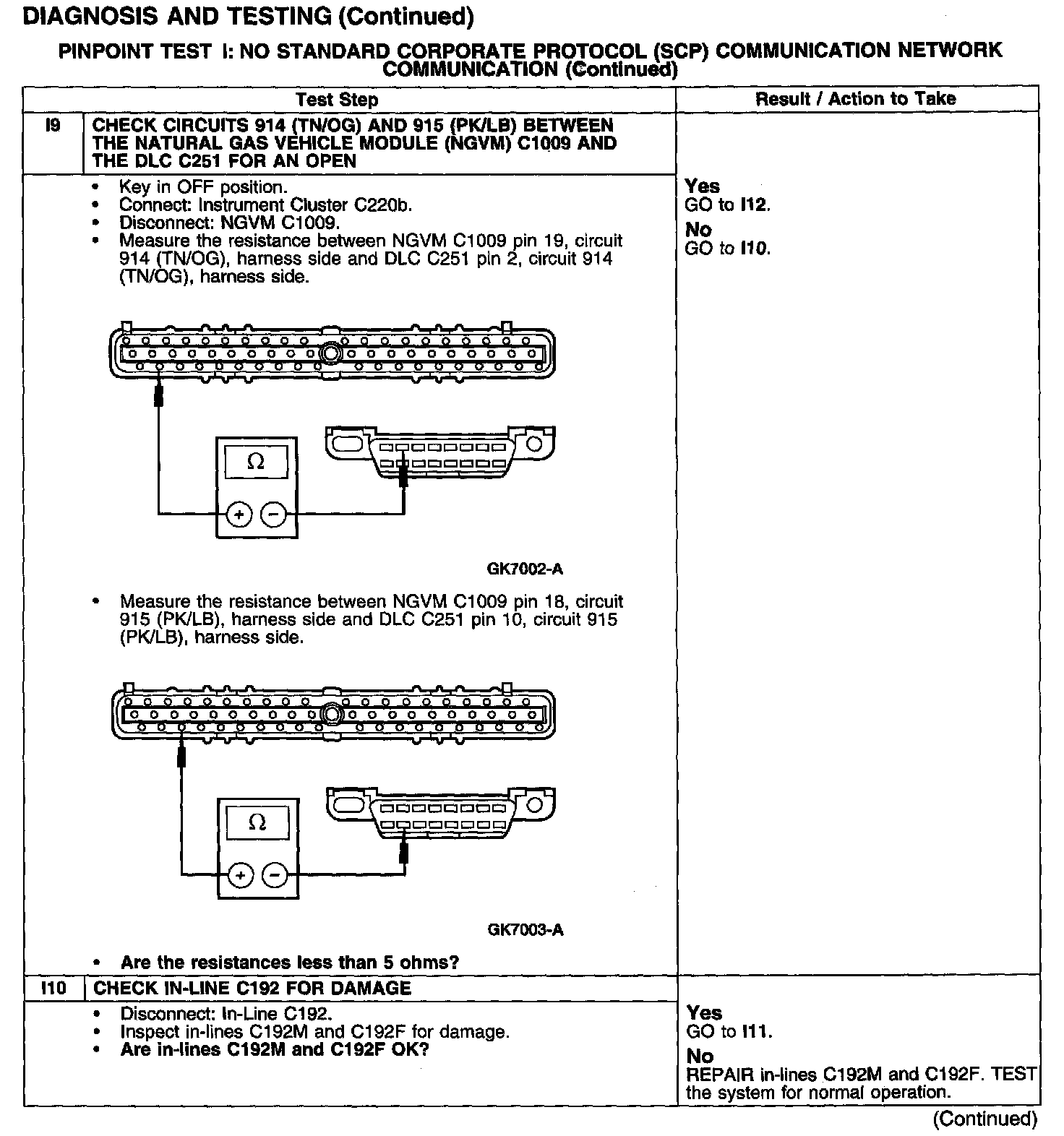

Test I9-I10:






Test I11-I13:

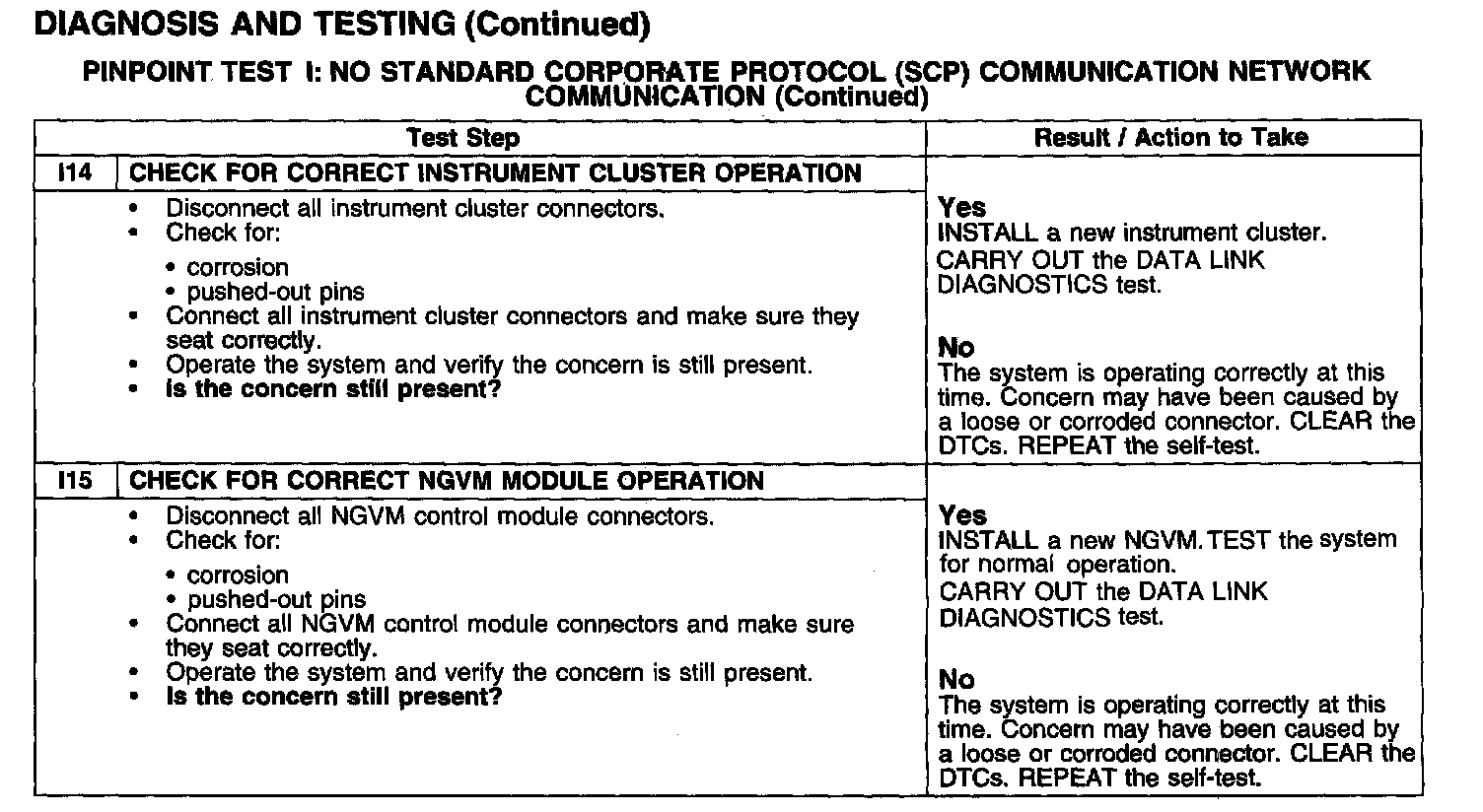

Test I14-I15:
