Automatic Transmission/Transaxle
>>
4R100
>>
Bushings, Bearing and Thrust Washer Location

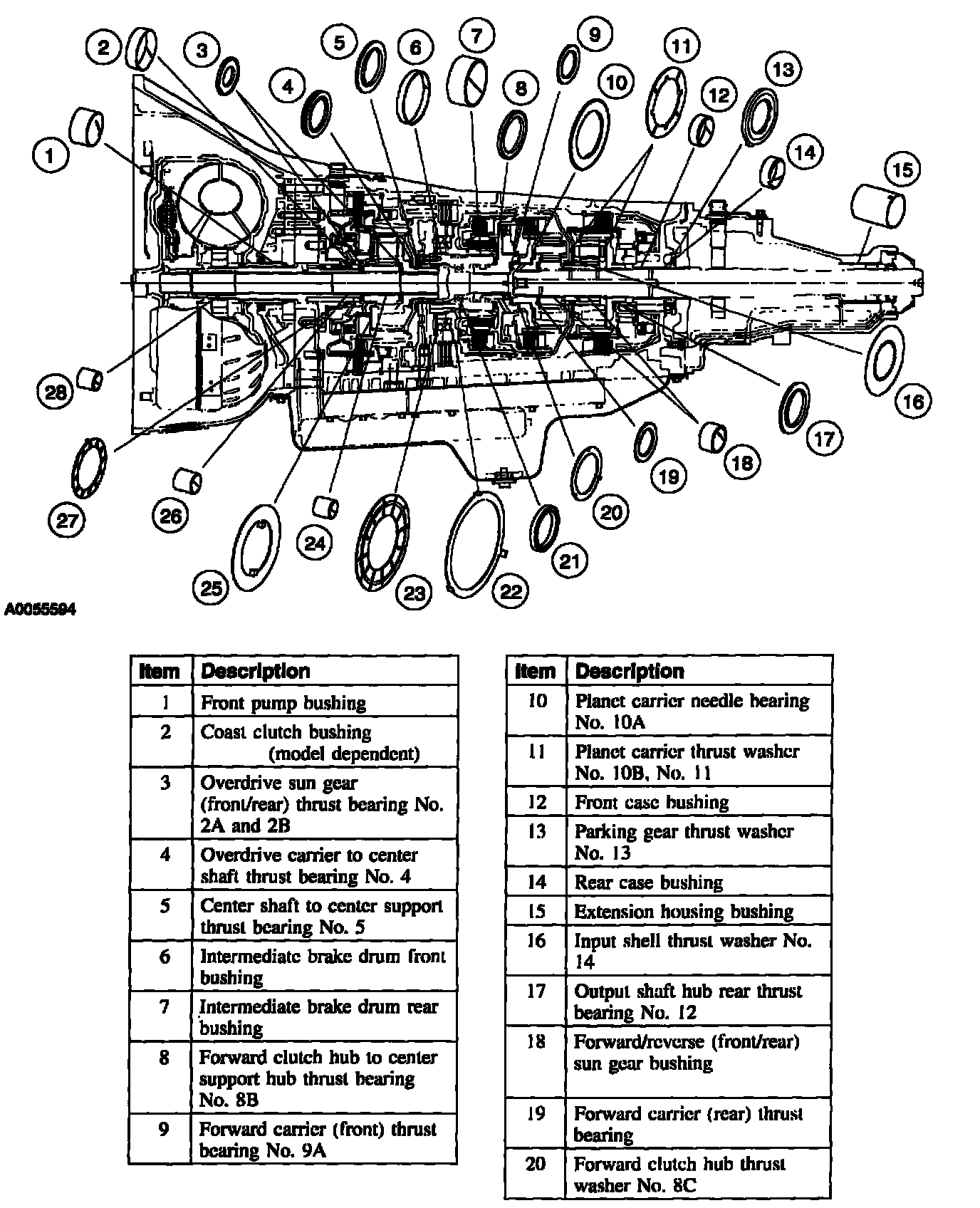

Bushings, Bearing and Thrust Washer Location
Bushings, Bearing and Thrust Washer Location
Part 1 Of 3:
Part 2 Of 3:
Part 3 Of 3:
