Test D: Clutch Drag

PINPOINT TEST D: CLUTCH DRAG

Test D1-D3:




Test D4:




Test D5-D6:

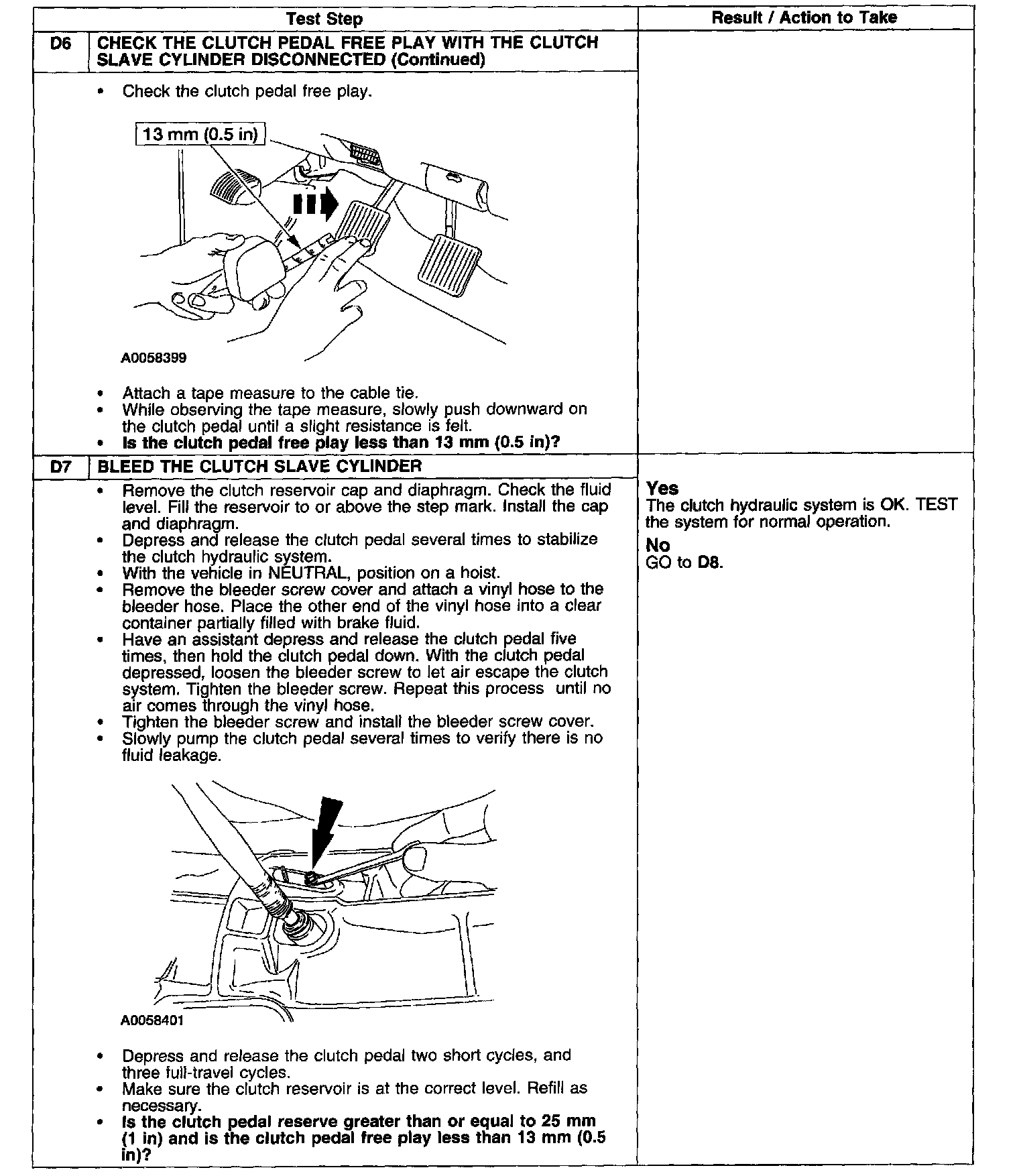

Test D6-D7:




Test D8-D9:
