A-Pillar Trim Panel

A-PILLAR TRIM PANEL

REMOVAL







1. Remove the instrument side trim panel.







2. Detach the B-pillar trim panel.

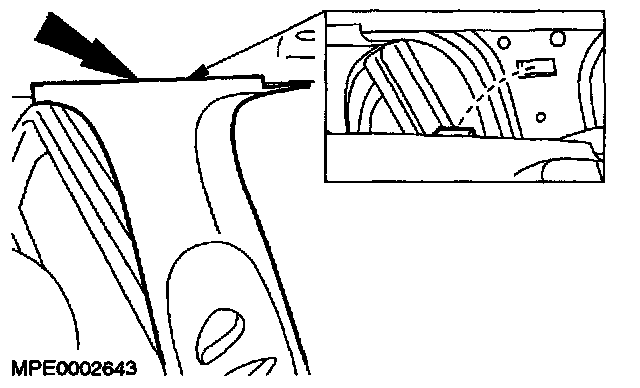

3. Remove the A-pillar trim panel.
- Remove and discard the body mounted clip/sockets.







4. Disconnect the cellular phone microphone electrical connector (if equipped).







5. NOTE: Make a note of the position of the microphone on the A-pillar trim panel.

Remove the cellular phone microphone from the A-pillar trim panel.

INSTALLATION

1. NOTE:
- Make sure the cellular phone microphone is installed in the correct position.
- Install new body mounted clip/sockets.

To install, reverse the removal procedure.
