Home >> Ford >> 2003 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Components >> Component Location Views >> View 151-49

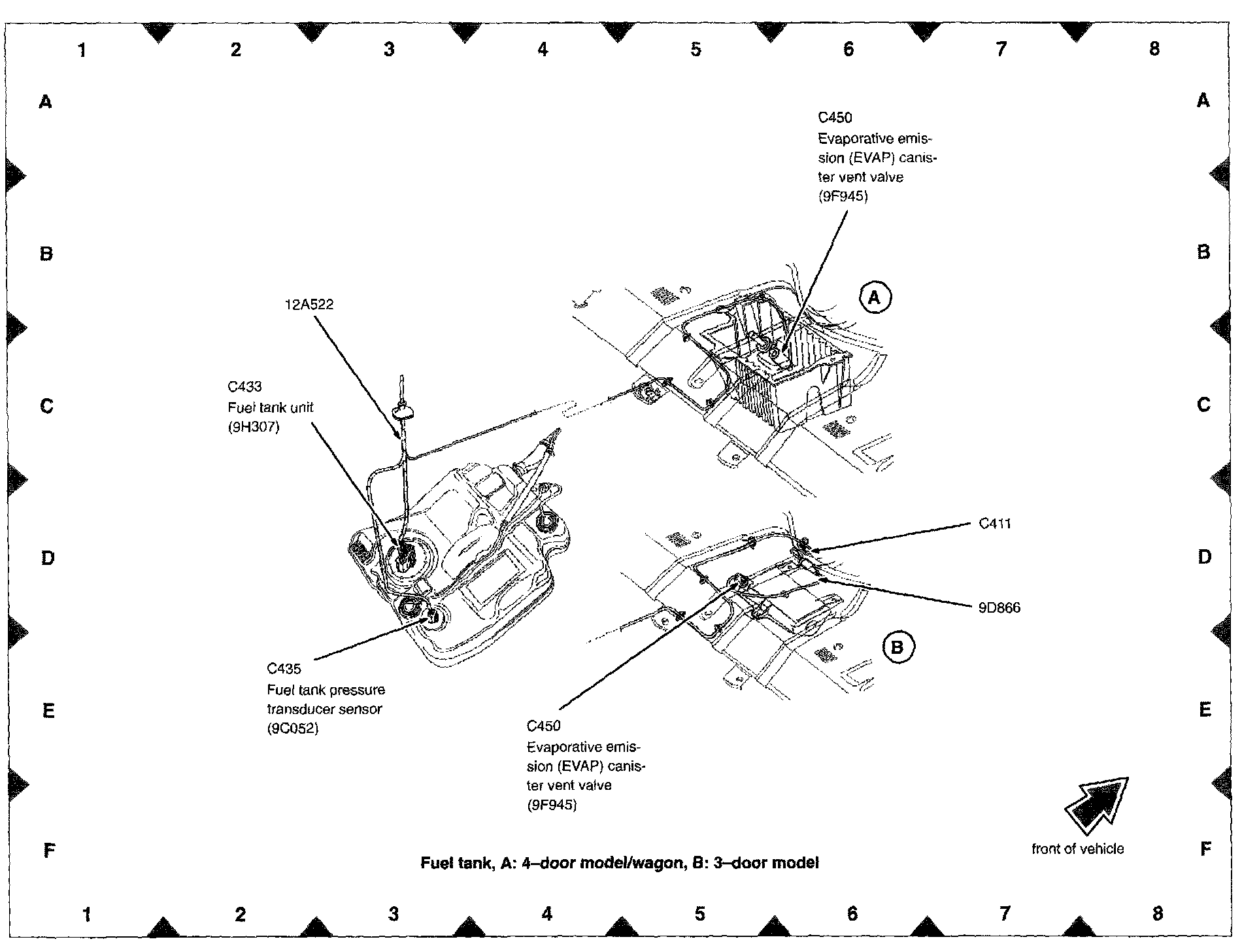

View 151-49

View 151-49:

View 151-50:
