Transaxle Internal Harness Connectors
Transaxle Internal Harness Connectors
Transaxle Internal Harness Connectors

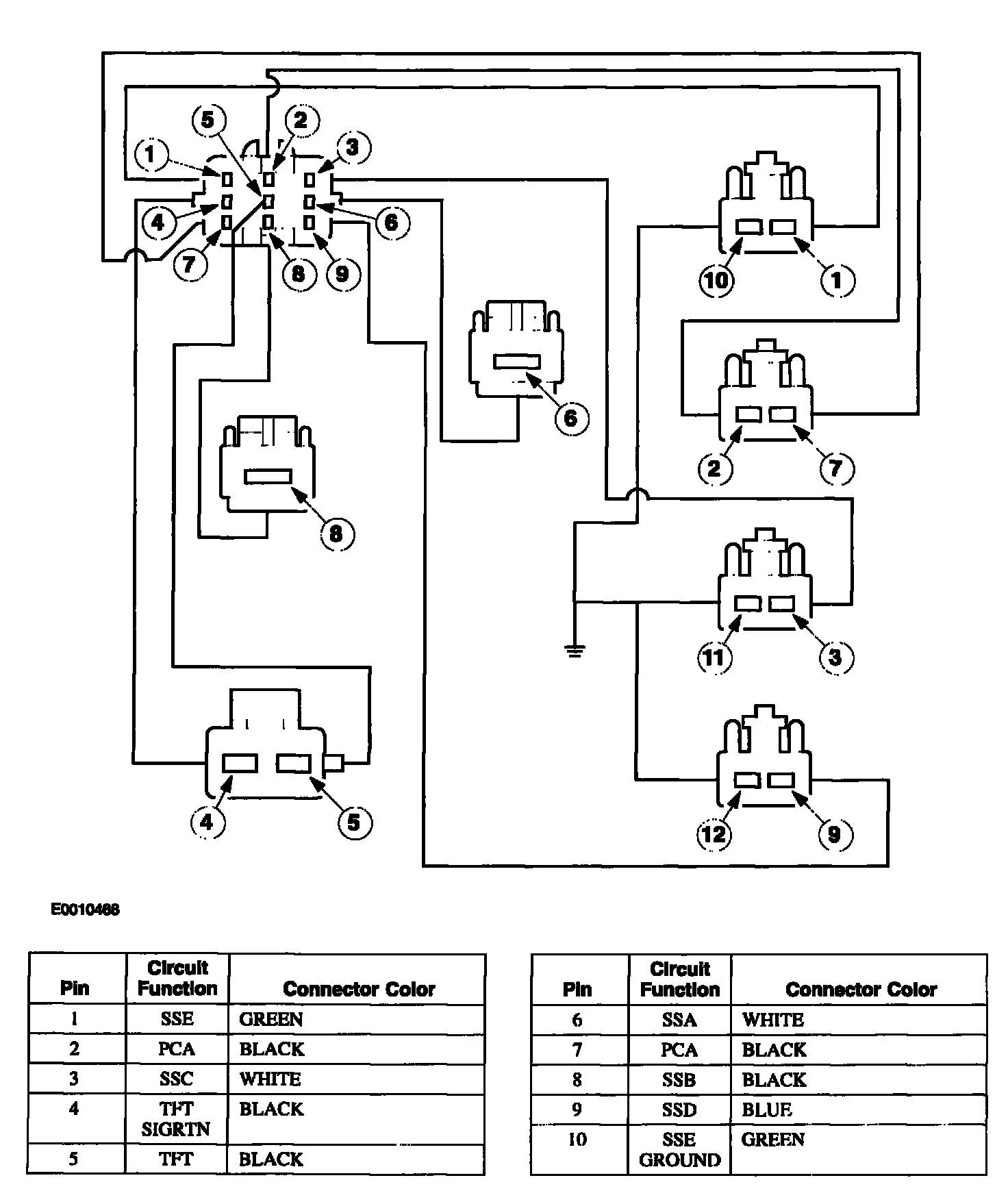

Part 1 Of 2:

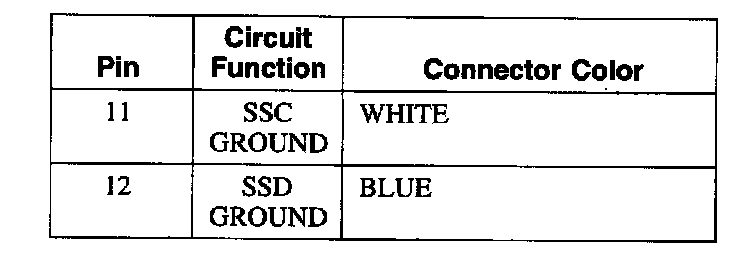

Part 2 Of 2:
